Baco Controls IP 66/ NEMA 4X Pushuttons Switches & Indicators
BACO pushbuttons are characterized by excellent modularity. You can choose from a wide range of standard products or you can order tailor-made products to meet your specific requirements.
· IP 66 / NEMA 4x.
· Head, clip, and blocks are modular.
· Stackable.
· Conform to standard UL 508 / CSA 22.2.
· Conform to standard EN/IEC 60947-5-1.
· Quality-controlled and conform to international standards such as IEC, UL and EN.
Chrome Bezel | Black Bezel | Color | Contact Blocks | List Price (USD) |
---|---|---|---|---|

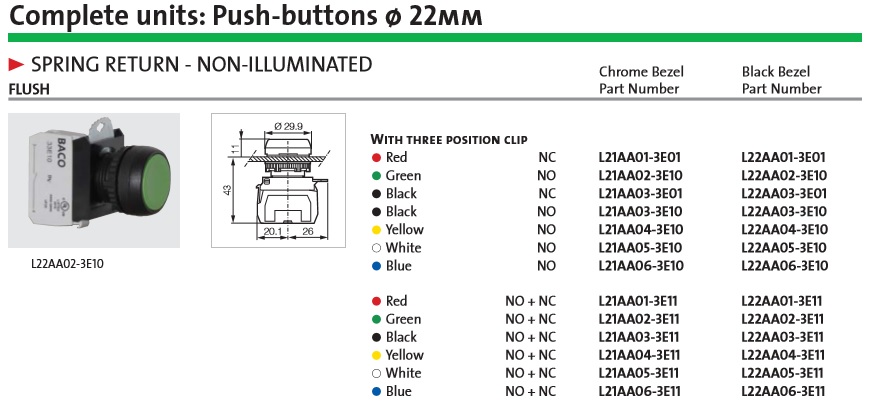

L21AA01-3E01 | L22AA01-3E01 | Red | NC | $16.91 |
L21AA02-3E10 | L22AA02-3E10 | Green | NO | $16.91 |
L21AA03-3E01 | L22AA03-3E01 | Black | NC | $16.91 |
L21AA03-3E10 | L22AA03-3E10 | Black | NO | $16.91 |
L21AA04-3E10 | L22AA04-3E10 | Yellow | NO | $16.91 |
L21AA05-3E10 | L22AA05-3E10 | White | NO | $16.91 |
L21AA06-3E10 | L22AA06-3E10 | Blue | NO | $16.91 |
L21AA01-3E11 | L22AA01-3E11 | Red | NO + NC | $24.43 |
L21AA02-3E11 | L22AA02-3E11 | Green | NO + NC | $24.43 |
L21AA03-3E11 | L22AA03-3E11 | Black | NO + NC | $24.43 |
L21AA04-3E11 | L22AA04-3E11 | Yellow | NO + NC | $24.43 |
L21AA05-3E11 | L22AA05-3E11 | White | NO + NC | $24.43 |
L21AA06-3E11 | L22AA06-3E11 | Blue | NO + NC | $24.43 |
Chrome Bezel | Black Bezel | Color | Contact Blocks | List Price (USD) |
---|---|---|---|---|

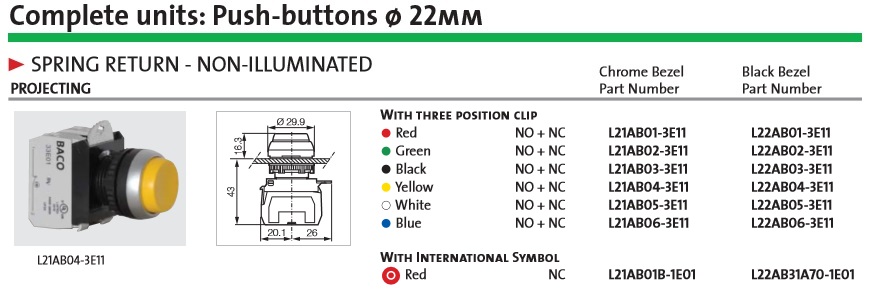

L21AB01-3E11 | L22AB01-3E11 | Red | NO + NC | $24.43 |
L21AB02-3E11 | L22AB02-3E11 | Green | NO + NC | $24.43 |
L21AB03-3E11 | L22AB03-3E11 | Black | NO + NC | $24.43 |
L21AB04-3E11 | L22AB04-3E11 | Yellow | NO + NC | $24.43 |
L21AB05-3E11 | L22AB05-3E11 | White | NO + NC | $24.43 |
L21AB06-3E11 | L22AB06-3E11 | Blue | NO + NC | $24.43 |
L21AB01B-1E01 | L22AB31A70-1E01 | Red | NC | $16.91 |
Chrome Bezel | Black Bezel | Color | Contact Blocks | List Price (USD) |
---|---|---|---|---|

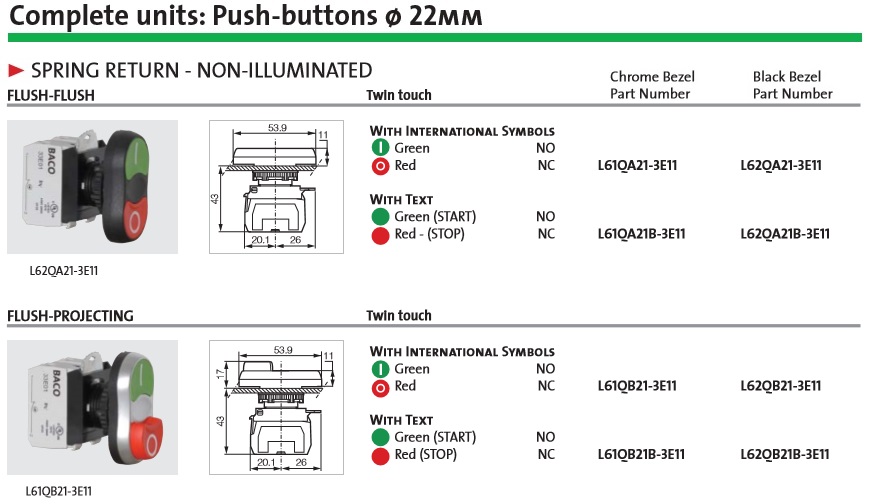

L61QA21-3E11 | L62QA21-3E11 | Green(1)+Red(0) | NO + NC | $38.65 |
L61QA21B-3E11 | L62QA21B-3E11 | Green(START)+Red(STOP) | NO + NC | $38.65 |
L61QB21-3E11 | L62QB21-3E11 | Green(1)+Red(0) | NO + NC | $38.65 |
L61QB21B-3E11 | L62QB21B-3E11 | Green(START)+Red(STOP) | NO + NC | $38.65 |
Chrome Bezel | Black Bezel | Color | Contact Blocks | List Price (USD) |
---|---|---|---|---|

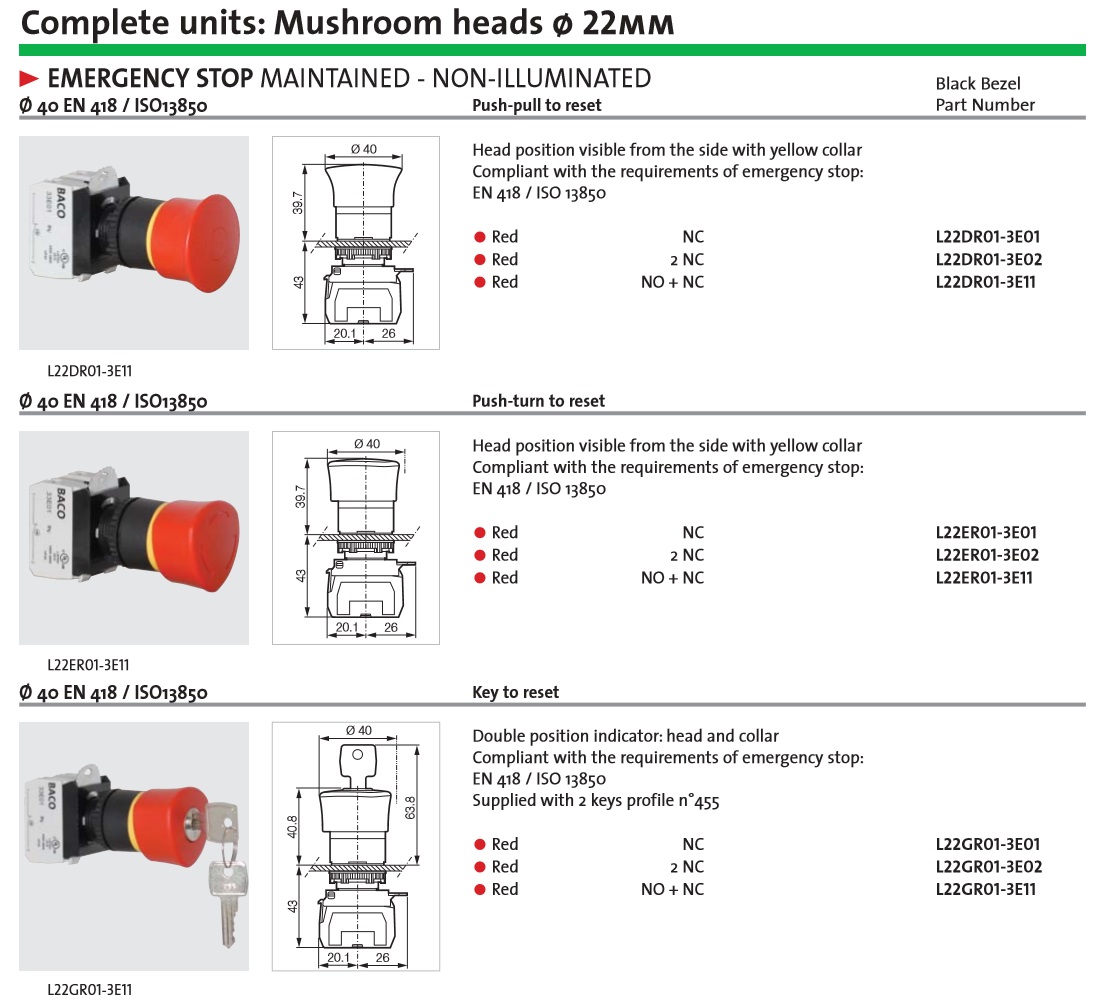

N/A | L22DR01-3E01 | Red | NC | $37.50 |
N/A | L22DR01-3E02 | Red | NC + NC | $45.10 |
N/A | L22DR01-3E11 | Red | NO + NC | $45.10 |
Chrome Bezel | Black Bezel | Color | Contact Blocks | List Price (USD) |
---|---|---|---|---|
N/A | L22ER01-3E01 | Red | NC | $44.50 |
N/A | L22ER01-3E02 | Red | NC + NC | $51.10 |
N/A | L22ER01-3E11 | Red | NO + NC | $51.10 |
Chrome Bezel | Black Bezel | Color | Contact Blocks | List Price (USD) |
---|---|---|---|---|
N/A | L22GR01-3E01 | Red | NC | $63.50 |
N/A | L22GR01-3E02 | Red | NC + NC | $70.10 |
N/A | L22GR01-3E11 | Red | NO + NC | $70.10 |

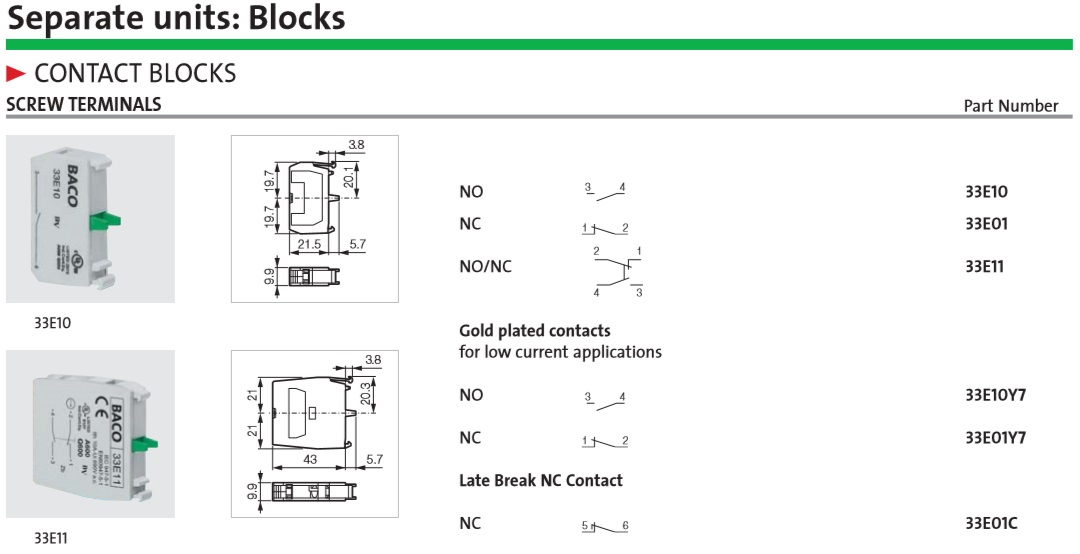

Part Number | Description | List Price (USD) |
---|---|---|
33E10 | NO | $7.50 |
33E01 | NC | $7.50 |
33E11 | NO + NC | $15.10 |
33E10Y7 | Gold plated contact NO | $21.50 |
33E01Y7 | Gold plated contact NC | $21.50 |
33E01C | Late Break NC Contact NC | $10.10 |
♦ Due to the wide product range we kindly recommend that you download the PDF document/product guide below and send us an E-mail with your selection of part numbers so we can accurately quote you pricing and delivery.
Document Download Page
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
