Disconnect Switches IEC Non-Fused

Our Series DS2 Non-Fused Disconnect Switches provide superior performance in rugged applications and are certified as Manual Motor Controllers Suitable as Motor Disconnects for motors up to 40HP at 480V (45kW at 400V). Panel/Base and door mounting options allow switches to be installed in virtually any enclosure.

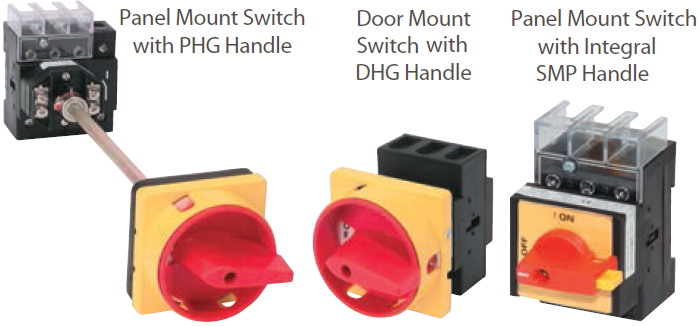

Disconnect Switches Styles

· 10kA short circuit rating at 600V AC with Class J fuses.
· Positive drive to open double break contacts to ensure circuit isolation.
· Compact space saving design for reduced size control panels. 16A switch is only 43mm (1-11/16in.) wide and our 25A ~ 63A switches are only 50mm (1-31/32in.) wide.
· Built-in EMI filter (230V 1 phase / 460V 3 phase)

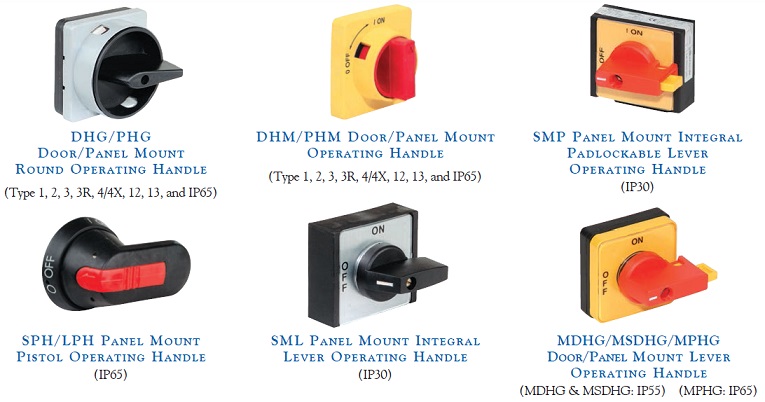

· Wide variety of operating handle styles and colors with Type 1, 2, 3, 3R, 4/4X, 12 and 13, IP55, and IP65 ingress protection ratings for the most demanding industrial environments.
· Glass filled polyamide thermoplastic housings are ARC track resistant and provide insulation between poles.
· Rugged steel collar rigidly secures the operating shaft in the switch on Panel/Base mounted switches.
· Line side terminal shield (provided as standard) and IP20 terminals guard against accidental contact with live parts.
· Integral captive terminal clamps are shipped in the backed-out position for easy wiring and are plated for corrosion resistance.
· Auxiliary contacts, power poles, and neutral poles install on the left or right side of the switch.
· Complete assembled switches with operating handles are available for JIT manufacturing and reduced inventory.

Disconnect Switches IEC Non-Fused Door Mounted

PART NUMBER:DDS2-316-MDHGRY
PRICE:$33.00
DESCRIPTION:Disconnect Switches : IEC : Non-Fused ; Door Mount 3090 ; Non-Fused Disconnect Switch ; 3 Poles ; 16 Amp ; Padlockable Lever (IP55) ; Red Operator / Yellow Bezel ; Door Mount .

PART NUMBER: DDS2-325-DHGRY
PRICE: $39.75
DESCRIPTION: Disconnect Switches : IEC : Non-Fused ; Door Mount 3090 ; Non-Fused Disconnect Switch ; 3 Poles ; 25 Amp ; Round DHG (Type 1,2,3,3R,4/4X,12,13, and IP65) ; Red Operator / Yellow Bezel ; Door Mount .

PART NUMBER: DDS2-330-DHGRY
PRICE: $49.00
DESCRIPTION: Disconnect Switches : IEC : Non-Fused ; Door Mount 3090 ; Non-Fused Disconnect Switch ; 3 Poles ; 32 Amp ; Round DHG (Type 1,2,3,3R,4/4X,12,13, and IP65) ; Red Operator / Yellow Bezel ; Door Mount .

PART NUMBER: DDS2-340-DHGRY
PRICE: $51.75
DESCRIPTION: Disconnect Switches : IEC Non-Fused Disconnect Switches ; Door Mount ; Non-Fused Disconnect Switch ; 3 Poles ; 40 Amp ; Round DHG (Type 1,2,3,3R,4/4X,12,13, and IP65) ; Red Operator / Yellow Bezel

PART NUMBER: DDS2-360-DHGRY
PRICE: $58.75
DESCRIPTION: Disconnect Switches : IEC Non-Fused Disconnect Switches ; Door Mount ; Non-Fused Disconnect Switch ; 3 Poles ; 63 Amp ; Round DHG (Type 1,2,3,3R,4/4X,12,13, and IP65) ; Red Operator / Yellow Bezel

PART NUMBER: DDS2-380-DHGRY
PRICE: $77.75
DESCRIPTION: Disconnect Switches : IEC : Non-Fused ; Door Mount 3090 ; Non-Fused Disconnect Switch ; 3 Poles ; 80 Amp ; Round DHG (Type 1,2,3,3R,4/4X,12,13, and IP65) ; Red Operator / Yellow Bezel ; Door Mount .

PART NUMBER: DDS2-3125-DHGRY
PRICE: $120.75
DESCRIPTION: Disconnect Switches : IEC : Non-Fused ; Door Mount 3090 ; Non-Fused Disconnect Switch ; 3 Poles ; 125 Amp ; Round DHG (Type 1,2,3,3R,4/4X,12,13, and IP65) ; Red Operator / Yellow Bezel ; Door Mount .



Disconnect Switches IEC Non-Fused Panel/Base Mounted

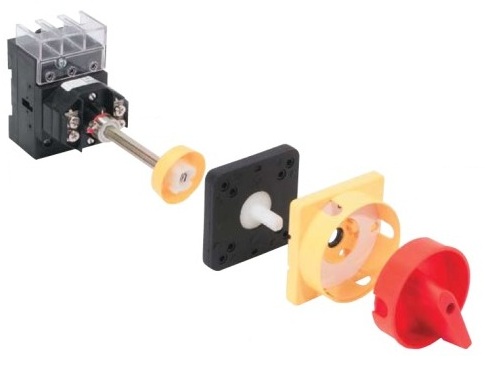

PART NUMBER:PDS2-316-MPHGRY06
PRICE: $29.95
DESCRIPTION: Disconnect Switches : IEC : Non-Fused ; Panel/Base Mount 3091 ; Non-Fused Disconnect Switch ; 3 Poles ; 16 Amp ; Padlockable Lever (IP65) ; Red Operator / Yellow Bezel ; 150mm (5.9 inches) .

PART NUMBER: PDS2-325-PHGRY11
PRICE: $30.00
DESCRIPTION: Disconnect Switches : IEC : Non-Fused ; Panel/Base Mount 3091 ; Non-Fused Disconnect Switch ; 3 Poles ; 25 Amp ; Round PHG (Type 1,2,3,3R,4/4X,12,13, and IP65) ; Red Operator / Yellow Bezel ; 283mm (11.1 inches).

PART NUMBER: PDS2-325-PHMRY11
PRICE: $42.00
DESCRIPTION: Disconnect Switches : IEC : Non-Fused ; Panel/Base Mount 3091 ; Non-Fused Disconnect Switch ; 3 Poles ; 25 Amp ; Round PHM (Type 1,2,3,3R,4/4X,12,13, and IP65) ; Red Operator / Yellow Bezel ; 283mm (11.1 inches).

PART NUMBER: PDS2-330-PHGRY11
PRICE: $59.75
DESCRIPTION: Disconnect Switches : IEC : Non-Fused ; Panel/Base Mount 3091 ; Non-Fused Disconnect Switch ; 3 Poles ; 32 Amp ; Round PHG (Type 1,2,3,3R,4/4X,12,13, and IP65) ; Red Operator / Yellow Bezel ; 283mm (11.1 inches).

PART NUMBER:PDS2-380-PHGRY11
PRICE: $81.50
DESCRIPTION: Disconnect Switches : IEC : Non-Fused ; Panel/Base Mount 3091 ; Non-Fused Disconnect Switch ; 3 Poles ; 16 Amp ; Padlockable Lever (IP65) ; Red Operator / Yellow Bezel ; 150mm (5.9 inches) .

PART NUMBER: PDS2-3125-PHGRY11
PRICE: $125.50
DESCRIPTION: Disconnect Switches : IEC : Non-Fused ; Panel/Base Mount 3091 ; Non-Fused Disconnect Switch ; 3 Poles ; 125 Amp ; Round PHG (Type 1,2,3,3R,4/4X,12,13, and IP65) ; Red Operator / Yellow Bezel ; 283mm (11.1 inches) .



Disconnect Switches IEC Non-Fused Accessories

PART NUMBER: DPA2125
PRICE: $32.00
DESCRIPTION: Power Pole Modules / Door Mount, Current Rating: 125 .

PART NUMBER: PA125DA211
PRICE: $31.00
DESCRIPTION: Auxiliary Contact Modules / Door Mount, Current Rating: 80 - 125.

PART NUMBER: PDPA2125
PRICE: $32.50
DESCRIPTION: Power Pole Modules / Panel Mount, Current Rating: 125 .

PART NUMBER: PA125DA211
PRICE: $32.00
DESCRIPTION: Auxiliary Contact Modules / Panel Mount, Current Rating: 80 - 125.





♦ Due to the wide product range we kindly recommend that you download the PDF document/product guide below and send us an E-mail with your selection of part numbers so we can accurately quote you pricing and delivery.



Complete Product Catalog Download



NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
