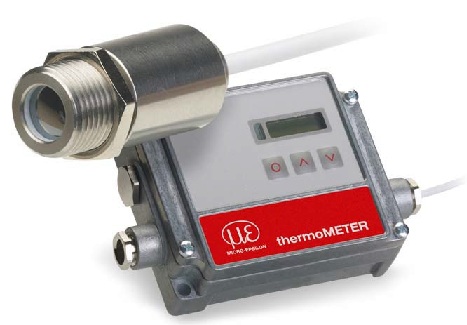

Micro-Epsilon CT Series Non Contact IR Sensor

The CT series are noncontact infrared temperature sensors. They calculate the surface temperature based on the emitted infrared energy of objects [Basics of Infrared Thermometry]. The sensor housing of the CT sensor is made of stainless steel (IP 65/ NEMA-4 rating) - the sensor electronics is placed in a separate box made of die casting zinc.

•Measuring range (°C): -50 to 600 | -50 to 975
•Optical resolution 2:1 | 15:1 | 25:1
•One of the smallest IR sensors in the world
•Robust and without cooling up to 180 ° C
•Very small infrared sensor head
•Various output signals available
•Rugged sensor head
•Exchangeable sensors

PART NUMBER: CT-SF02-C1
PRICE: $455.00
DESCRIPTION: Cable Lenght: 1 Meters; Temperature Range: -50 to 600 °C; D:S = 2:1.

PART NUMBER: CT-SF02-C8
PRICE: $535.00
DESCRIPTION: Cable Lenght: 8 Meters; Temperature Range: -50 to 600 °C; D:S = 2:1.

PART NUMBER: CT-SF02-C15
PRICE: $615.00
DESCRIPTION: Cable Lenght: 15 Meters; Temperature Range: -50 to 600 °C; D:S = 2:1.

PART NUMBER: CT-SF15-C1
PRICE: $610.00
DESCRIPTION: Cable Lenght: 1 Meters; Temperature Range: -50 to 600 °C; D:S = 15:1.

PART NUMBER: CT-SF15-C8
PRICE: $677.00
DESCRIPTION: Cable Lenght: 8 Meters; Temperature Range: -50 to 600 °C; D:S = 15:1.

PART NUMBER: CT-SF15-C15
PRICE: $754.00
DESCRIPTION: Cable Lenght: 15 Meters; Temperature Range: -50 to 600 °C; D:S = 15:1.

PART NUMBER: CT-SF22-C1
PRICE: $628.00
DESCRIPTION: Cable Lenght: 1 Meters; Temperature Range: -50 to 975 °C; D:S = 22:1.

PART NUMBER: CT-SF22-C8
PRICE: $732.00
DESCRIPTION: Cable Lenght: 8 Meters; Temperature Range: -50 to 975 °C; D:S = 22:1.

PART NUMBER: CT-SF22-C15
PRICE: $788.00
DESCRIPTION: Cable Lenght: 15 Meters; Temperature Range: -50 to 975 °C; D:S = 22:1.



BINARY LEVEL SENSORS

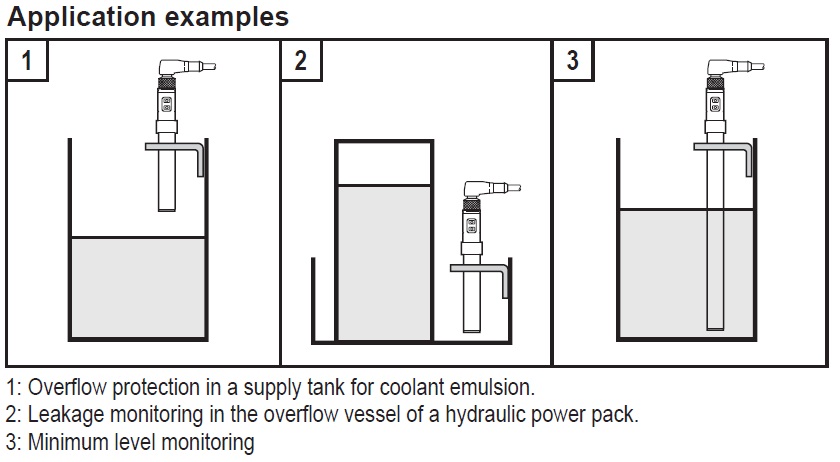

The unit operates to the capacitive measuring principle. By direct contact with the medium the unit detects whether the requested level (limit level) is reached and indicates this by a switched signal. The dielectric constant of a medium is important for its detection. Media with a dielectric constant > 1.8 are safely detected.

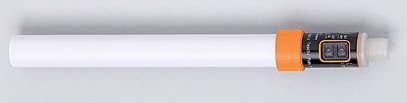

LI5141

PART NUMBER: LI5141
PRICE: $255.00
DESCRIPTION:
•Operating voltage [V]: 10...36 DC
•Current rating [mA]: 200
•Short-circuit protection: Yes (non-latching)
•Reverse polarity protection yes
•Overload protection: yes
•Voltage drop [V]: < 2.5
•Current consumption [mA]: < 22 (DC 24 V)
•Active range A [mm]: 31
•Recommended media: Hydrous coolants, oils, water, media similar to water
•Cannot be used for: granulates and bulk materials, acids and alkalis, hygienic and electroplating applications
•Dielectric constant medium: > 1.8
• Maximum vessel pressure [bar]: +/- 0.5 (mounted with mounting accessories E43001 - E43007)
•Medium temperature oil
•Continuous [°C]: 0...80
•Short time [°C]: 0...65
•Medium temperature water and hydrous media Continuous [°C]: 0...35 (LI5141 + E43103: 0...65) **)
•Ambient temperature [°C]: -25...80
•Protection: IP 65 / IP 67, II
•Shock resistance : DIN EN 60068-2-29: 12 g (11 ms)
•Vibration resistance: DIN EN 60068-2-6: 5 g (10...2000 Hz)
•Housing materials: PP GF30; TPE-U
•Materials (wetted parts): PP
•Display Power LED: green
•Switching status LED: yellow
•Connection: M12 connector; gold-plated contacts
•Weight [kg]: 0.165



NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
