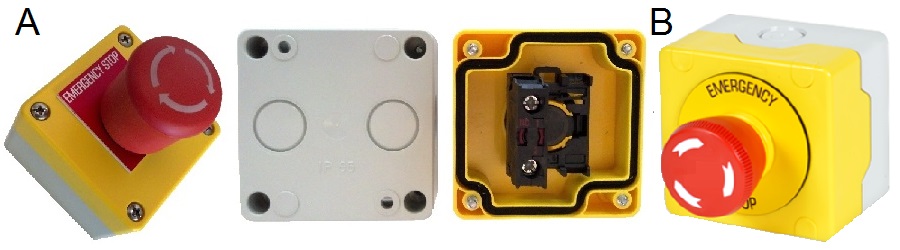

E-Stop Station [Polyester Enclosure]
UL Listed and Rated Type 1, 3/3R, 4/4X, 12,13 and IP66.UV and corrosion resistant.
Stainless steel hardware including #8 thread form screws.
Operating temperatures from -40 to +55 C (-40 to +131 F)
Standard color: Yellow/Glacier Grey .
PART NUMBER: 22ECC001A
PRICE: $114.00
DESCRIPTION: Enclosures : Polyester : Assembled Enclosures ; 22mm (NEMA) 7233 ; 1 Unit ; 1 Normally Closed Contact Block ; Pushbutton / Maintained ; Mushroom / Red ; Polyester ; Emergency Stop / Red .
PART NUMBER: 22ECC001B
PRICE: $114.00
DESCRIPTION: Enclosures : Polyester : Assembled Enclosures ; 22mm (NEMA) 7233 ; 1 Unit ; 1 Normally Closed Contact Block ; Pushbutton / Maintained ; Mushroom / Red ; Polyester ; Emergency Stop / Yellow .

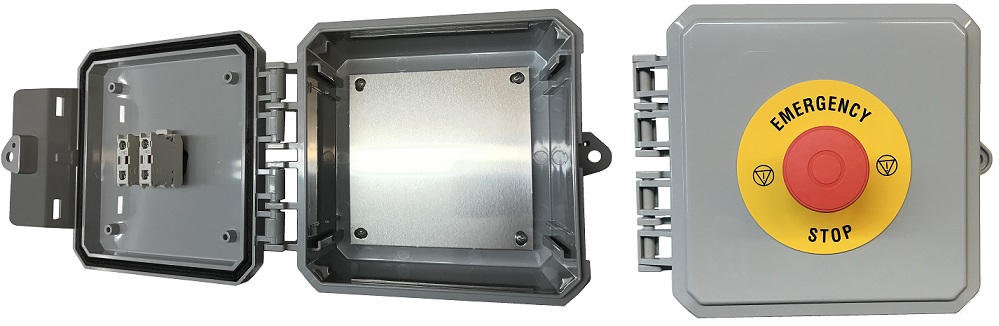

E-Stop Station IP69K [Polycarbonate Enclosure w/ Nema 6/6P]
Our Premium Line enclosures are the most durable, aesthetically pleasing, non-metallic Nema UL rated enclosures available. From the extremely versatile mounting options inside the enclosure to having the most off-the-shelf accessories, the Integra “Made In the USA” Premium Line enclosures provide great value to any application.PART NUMBER: 22ECC001P-4043N
PRICE: $229.00
DESCRIPTION:
Enclosures: 4 x 4 x 3 in. (HxWxD), UL/C-UL-50 listed Nema 1,2,3,3R,3S,4,4X,5,6/6P,12,13 rated.
Subpanel: N/A
Pushbutton: IP67 and IP69K, 22mm, push to lock, pull to reset, emergency stop, plastic base, plastic bezel, yellow, operator only, Operator: red, mushroom, 50mm, round, plastic, operator text "push/pull symbol" with one normally closed contact block.
PART NUMBER: 22ECC001P-6063S
PRICE: $234.00
DESCRIPTION:
Enclosures: 6 x 6 x 3 in. (HxWxD), UL/C-UL-50 listed Nema 1,2,3,3R,3S,4,4X,5,6/6P,12,13 rated.
Subpanel: 4.88"x4.88"
Pushbutton: IP67 and IP69K, 22mm, push to lock, pull to reset, emergency stop, plastic base, plastic bezel, yellow, operator only, Operator: red, mushroom, 50mm, round, plastic, operator text "push/pull symbol", with two normally closed contact blocks.
PART NUMBER: 22ECC001P-10086S
PRICE: $270.00
DESCRIPTION:
Enclosures: 10 x 8 x 6 in. (HxWxD), UL/C-UL-50 listed Nema 1,2,3,3R,3S,4,4X,5,6/6P,12,13 rated.
Subpanel: 8.75"x6.88"
Pushbutton: IP67 and IP69K, 22mm, push to lock, pull to reset, emergency stop, plastic base, plastic bezel, yellow, operator only, Operator: red, mushroom, 50mm, round, plastic, operator text "push/pull symbol", with two normally closed contact blocks.

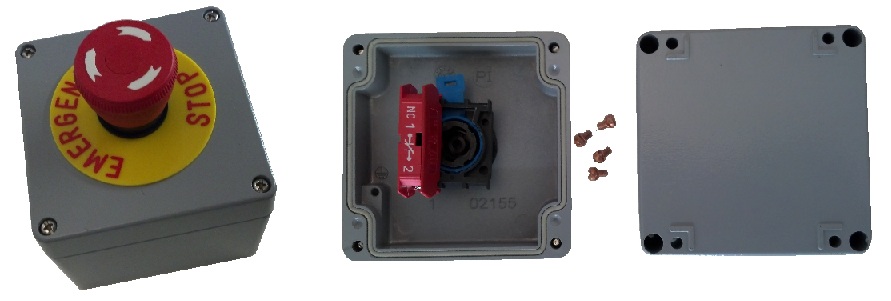

E-Stop Station [Die Cast Enclosures]
30mm and 22mm die cast enclosures are rated Type 1, 3R, 4, 12, IP66 and IP67.Standard finish: Smooth powder coat grey.
PART NUMBER: 22ECD001
PRICE: $143.00
DESCRIPTION: Enclosures : Die Cast : Assembled Enclosures ; 22mm (NEMA) 7288 ; 1 Unit ; 1 Normally Closed Contact Block ; Pushbutton / Maintained ; Mushroom / Red ; Polyester ; Emergency Stop / Yellow .

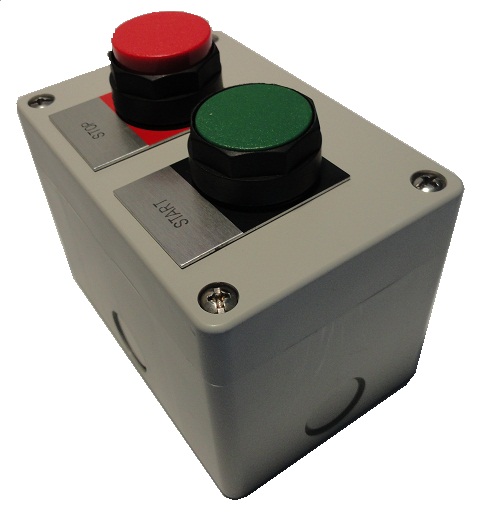

OPA-AE22P201
Assembled NEMA 4, 4X, 13 thermoplastic ABS control station, flush START pushbutton, green, with 1 N.O. contact, extended STOP pushbutton, red, with 1 N.C. contact.PART NUMBER: OPA-AE22P201
PRICE: $118.00
DESCRIPTION: FLUSH GREEN PB START EXTENDED RED PB STOP. ABS ENC.
PART NUMBER: OPA-AE22P201AL
PRICE: $171.00
DESCRIPTION: FLUSH GREEN PB START EXTENDED RED PB STOP. ALUMINUM ENC.

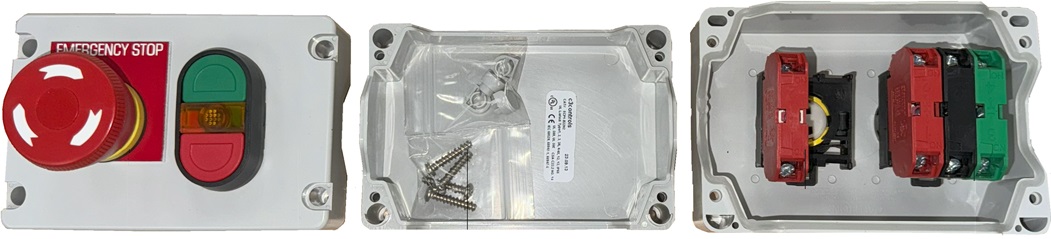

OPA-AE22P202
Assembled NEMA 4, 4X, 13 thermoplastic ABS control station, flush START pushbutton, green, with 1 N.O. contact, flush STOP pushbutton, red, with 1 N.C. contact and Emergency Stop Station, 40mm latch-in twist-to-release, red E-STOP, 1 N.C. contact.PART NUMBER: OPA-AE22P202
PRICE: $141.00
DESCRIPTION: FLUSH GREEN PB START AND RED PB STOP W/40MM LATCH TWIST-RELEASE. ABS ENC.
PART NUMBER: OPA-AE22P202LT
PRICE: $163.00
DESCRIPTION: FLUSH GREEN PB START AND RED PB STOP W/40MM LATCH TWIST-RELEASE, MULTI-VOLTAGE (NON-RELAPABLE), 20-277V AC/DC, LED WHITE. ABS ENC.
PART NUMBER: OPA-AE22P202AL
PRICE: $224.00
DESCRIPTION: FLUSH GREEN PB START AND RED PB STOP W/40MM LATCH TWIST-RELEASE. ALUMINUM ENC.
PART NUMBER: OPA-AE22P202ALT
PRICE: $246.00
DESCRIPTION: FLUSH GREEN PB START AND RED PB STOP W/40MM LATCH TWIST-RELEASE, MULTI-VOLTAGE (NON-RELAPABLE), 20-277V AC/DC, LED WHITE.. ALUMINUM ENC.

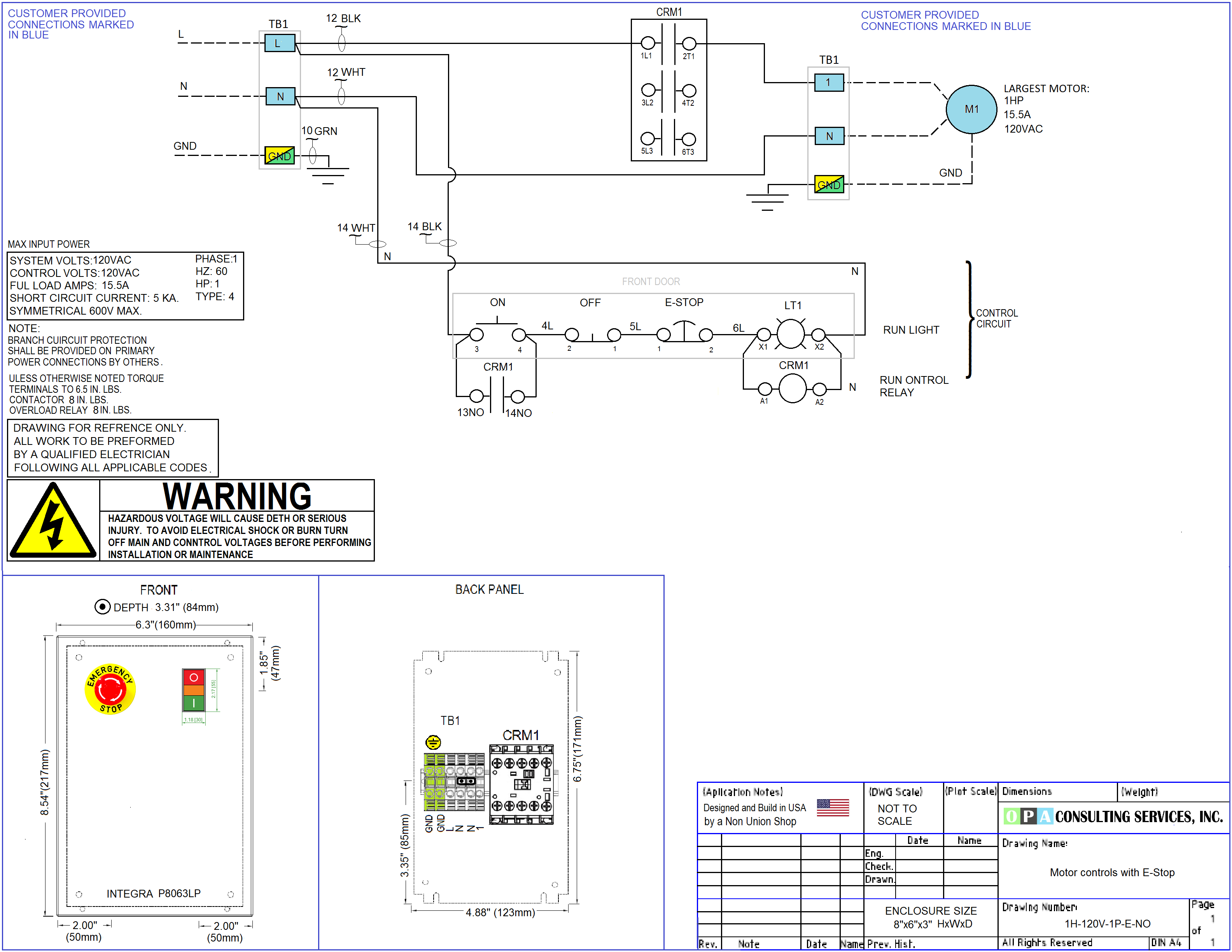

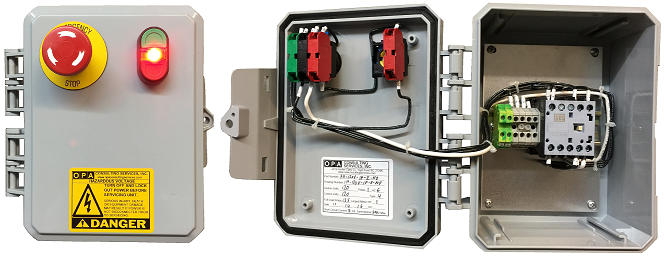

1H-120V-1P-E-NO
Category 1 Safety motor controller. Assembled UL/C-UL-50 listed Nema 1,2,3,3R,3S,4,4X,5,6/6P,12,13 rated (locking latch not 6/6P rated) polycarbonate, flush START pushbutton, green, with 1 N.O. contact, flush STOP pushbutton, red, with 1 N.C. contact, LED full voltage indicator and Emergency Stop Station, 40mm latch-in twist-to-release, red E-STOP, 1 N.C. contact. One contactor/relay for control power OFF/ON and manual restart after power loss.Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.
PART NUMBER: 1H-120V-1P-E-NOPRICE: $500.00
DESCRIPTION: FLUSH GREEN PB START, RED PB STOP AND LED INDICATOR, AND W/LATCH TWIST-RELEASE E-STOP, ABS ENCLOSURE FOR USE WITH 120VAC MOTORS.

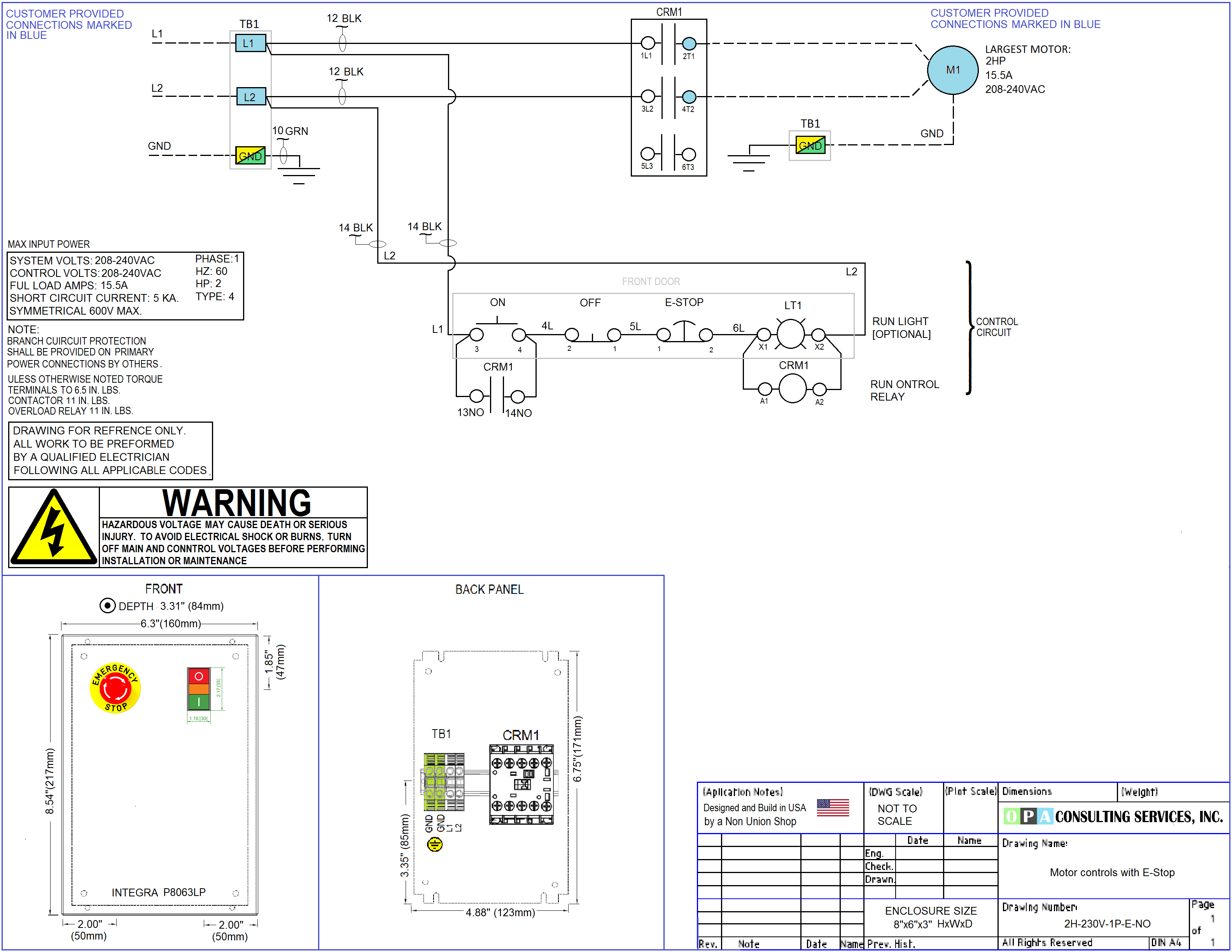

PART NUMBER: 2H-230V-1P-E-NO
PRICE: $450.50
DESCRIPTION: FLUSH GREEN PB START, RED PB STOP, AND W/LATCH TWIST-RELEASE E-STOP, ABS ENCLOSURE FOR USE WITH 208-240VAC MOTORS.

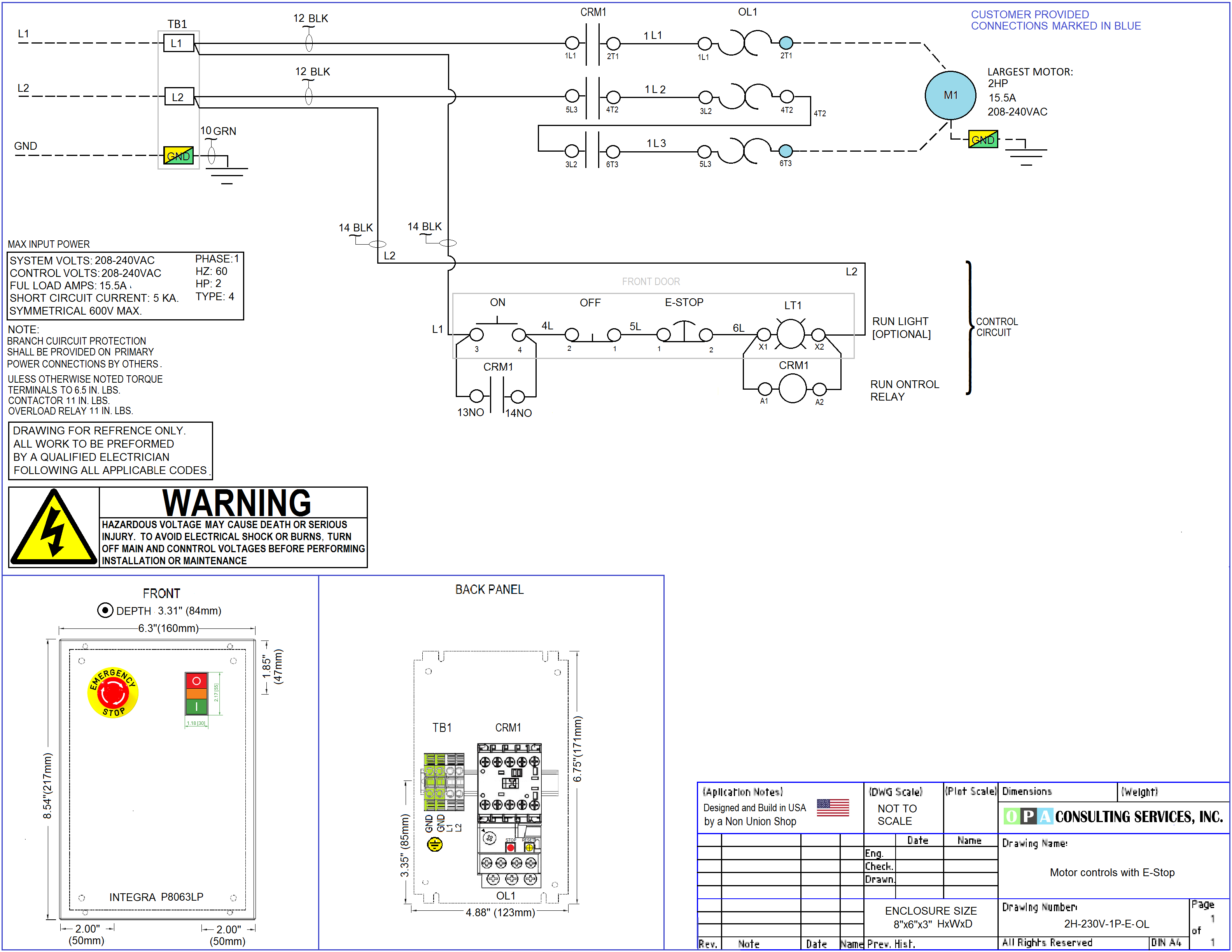

PART NUMBER: 2H-230V-1P-E-OL
PRICE: $475.00
DESCRIPTION: FLUSH GREEN PB START, RED PB STOP, AND W/LATCH TWIST-RELEASE E-STOP, ABS ENCLOSURE, MOTOR OVERLOAD PROTECTION, FOR USE WITH 208-240VAC MOTORS.

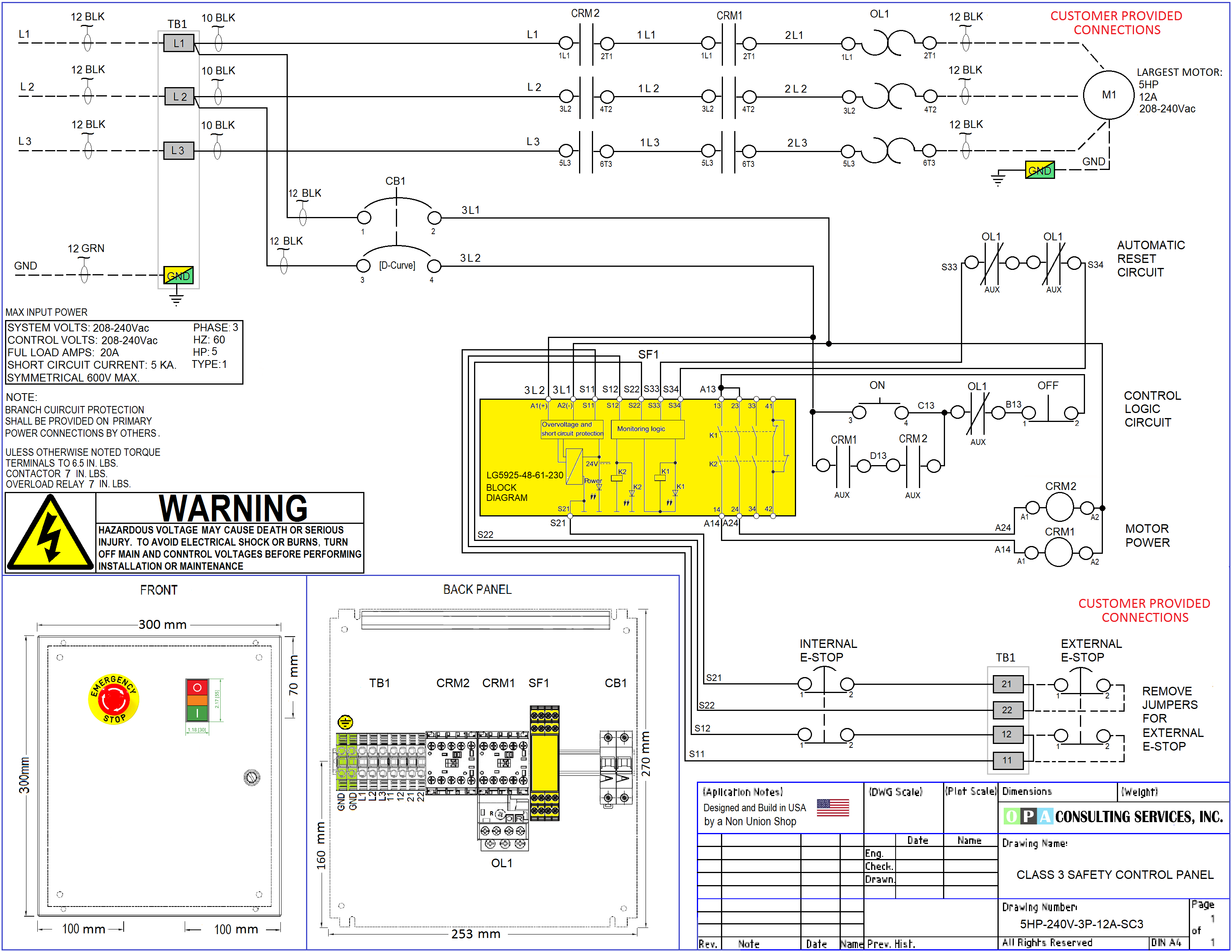

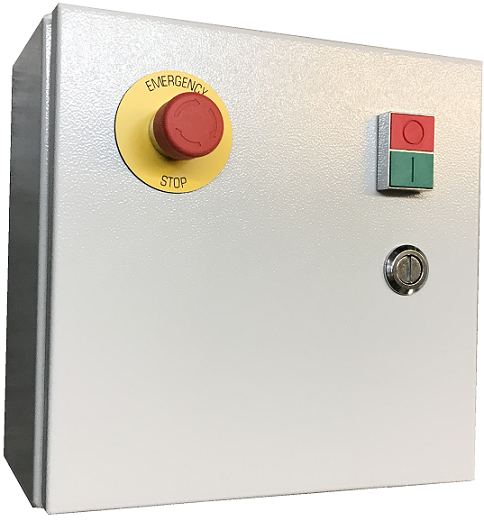

5HP-240V-3P-12A-SC3
Category 3 Safety motor controller. Assembled UL/C-UL-50 listed Nema 1,2,3,3R,3S,4,4X,5,6/6P,12,13 rated (locking latch not 6/6P rated) polycarbonate, flush START pushbutton, green, with 2 N.O. contact, flush STOP pushbutton, red, with 2 N.C. contact, LED full voltage indicator and Emergency Stop Station, 40mm latch-in twist-to-release, red E-STOP, 2 N.C. contact. One contactor/relay for control power OFF/ON and manual restart after power loss.Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.
PART NUMBER: 5HP-240V-3P-12A-SC3PRICE: $995.50
DESCRIPTION: FLUSH GREEN PB START, RED PB STOP AND LED INDICATOR, AND W/LATCH TWIST-RELEASE E-STOP, ABS ENCLOSURE FOR USE WITH 208-240VAC MOTORS.

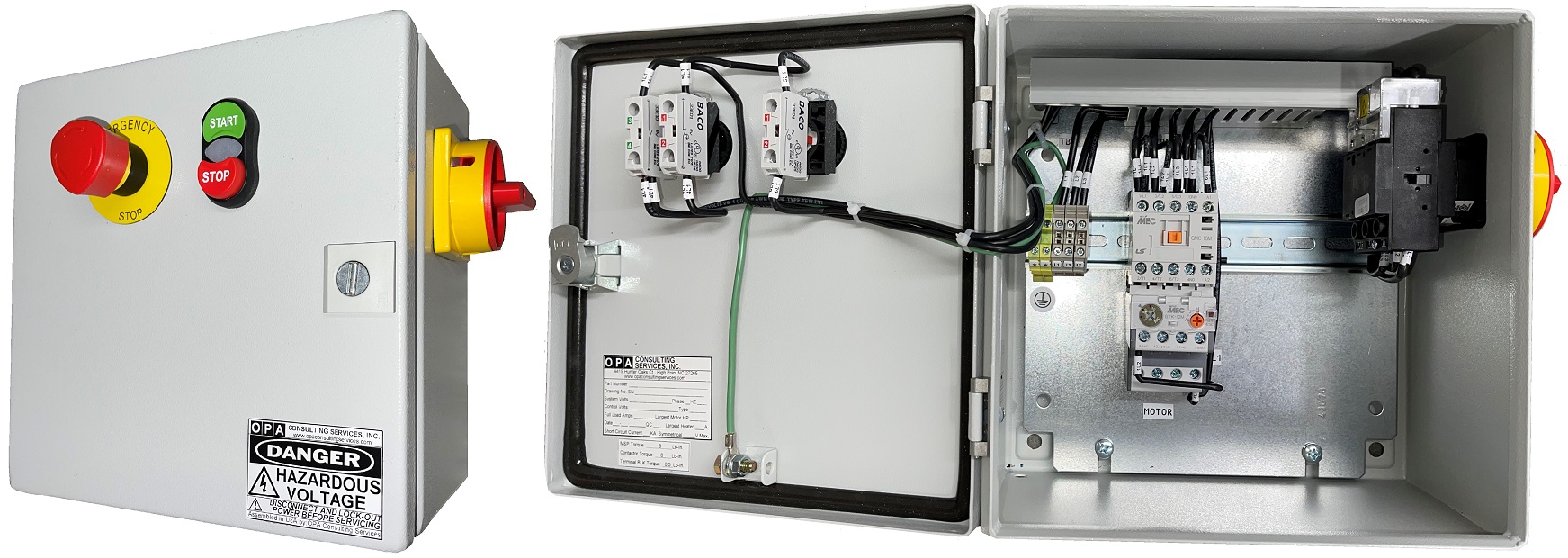

3H-230V-3P-OL
All the Enclosed Motor Starter panels assembled by OPA Controls are meticulously designed and constructed. When applicable, all panels are laid out with generous wiring space.Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.
PART NUMBER: 3H-230V-3P-OLPRICE: $985.50
DESCRIPTION: FLUSH GREEN PB START, RED PB STOP, AND W/LATCH TWIST-RELEASE E-STOP, ABS OR STEEL ENCLOSURE FOR USE WITH 208-240VAC or 460-4800VAC MOTORS.

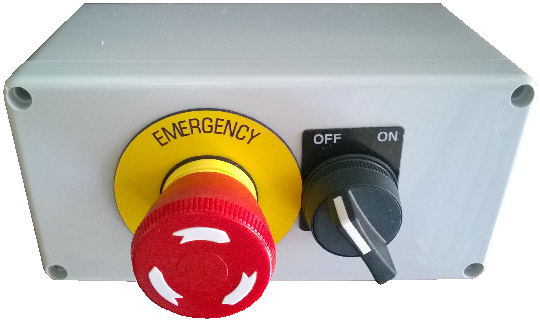

OPA-AE22P404
Assembled NEMA 4, 4X, 13 thermoplastic ABS control station, two position OFF ON maintained selector switch, red, with 2 N.O. contact and Emergency Stop Station, 40mm latch-in twist-to-release, red E-STOP, 2 N.C. contact.PART NUMBER: OPA-AE22P404
PRICE: $139.00
DESCRIPTION: SELECTOR WHITCH OFF ON AND RED PB STOP W/40MM LATCH TWIST-RELEASE. ABS ENC.
PART NUMBER: OPA-AE22P404AL
PRICE: $222.00
DESCRIPTION: SELECTOR WHITCH OFF ON AND RED PB STOP W/40MM LATCH TWIST-RELEASE. ALUMINUM ENC.

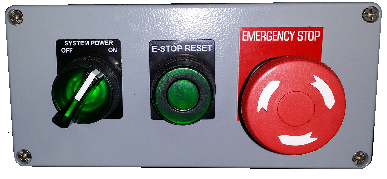

OPA-AE22P406
Assembled NEMA 4, 4X, 13 thermoplastic ABS control station, two position OFF ON maintained selector switch, red, with 2 N.O. contact and Emergency Stop Station, 40mm latch-in twist-to-release, red E-STOP, 2 N.C. contact and 1 MOMENTARY ILUMINATED PB.PART NUMBER: OPA-AE22P408
PRICE: $237.00
DESCRIPTION: SELECTOR WHITCH OFF ON, MOMENTARY ILUMINATED PB AND RED PB STOP W/40MM LATCH TWIST-RELEASE. ABS ENC.
PART NUMBER: OPA-AE22P408AL
PRICE: $275.00
DESCRIPTION:SELECTOR WHITCH OFF ON, MOMENTARY ILUMINATED PB AND RED PB STOP W/40MM LATCH TWIST-RELEASE. ALUMINUM ENC.

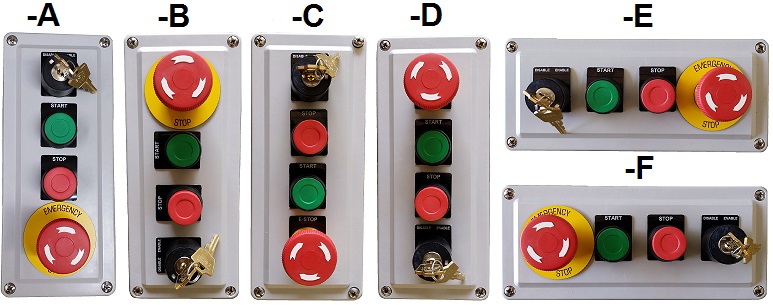

OPA-AE22P408
Assembled NEMA 4, 4X, 13 thermoplastic ABS control station, two position maintained KEYED SELECTOR SWITCH, E-STOP, STOP, AND START.PART NUMBER: OPA-AE22P408
PRICE: $295.00
DESCRIPTION: KEYED SELECTOR SWITCH, E-STOP, STOP, AND START. ABS ENC.
PART NUMBER: OPA-AE22P408AL
PRICE: $355.00
DESCRIPTION: KEYED SELECTOR SWITCH, E-STOP, STOP, AND START.. ALUMINUM ENC.

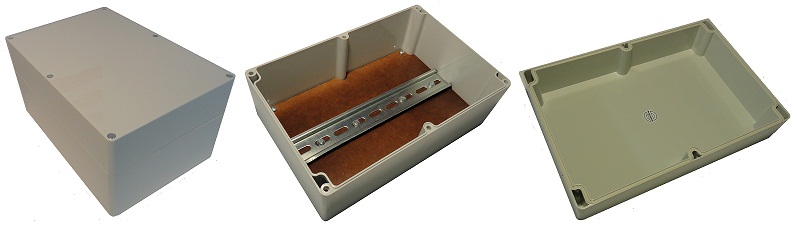

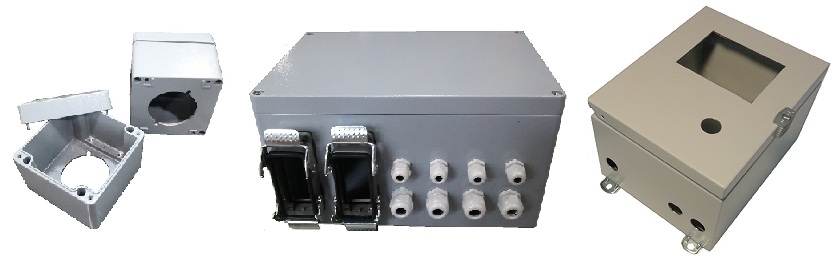

OPA-RB09P101
ABS Watertight 09 enclosures are designed for a wide variety of electronic packaging applications.They are particularly suited for enclosing electrical and electronic components and housing complete small control systems. These enclosures have been used for solar panel control boxes, medical oxygen monitors and electronic lighting dimmer control housings. The ABS Watertight 09 enclosure offers the lowest cost in our watertight enclosure line. ABS is an excellent alternative when reduced material characteristics are sufficient. The low cost makes these boxes ideal for large production runs. Made from injection-molded ABS plastic (Acylonitrile-Butadine-Styrene), the enclosure includes a base and lid, captive stainless steel lid screws, molded-in lid screw inserts in the base, and a neoprene watertight gasket. Metric press-in brass inserts for internal mounting bosses are also availablePART NUMBER: OPA-RB09P101
PRICE: $130.00
DESCRIPTION: Dimensions: L=9.45"/240mm * W=6.30"/160mm * H=4.72"/120mm .
Other dimensions are avaiable per your request.

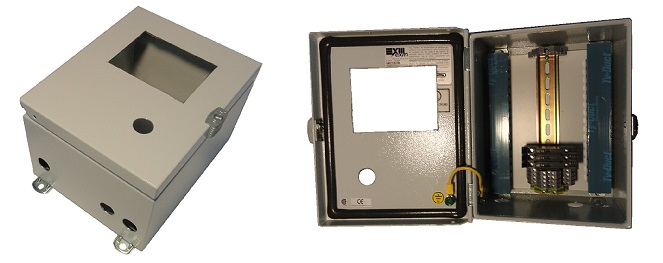

PART NUMBER: OPA-RB09M101
PRICE: $188.00
DESCRIPTION: Dimensions: L=10" * W=8" * H=6".
NEMA 4/12.

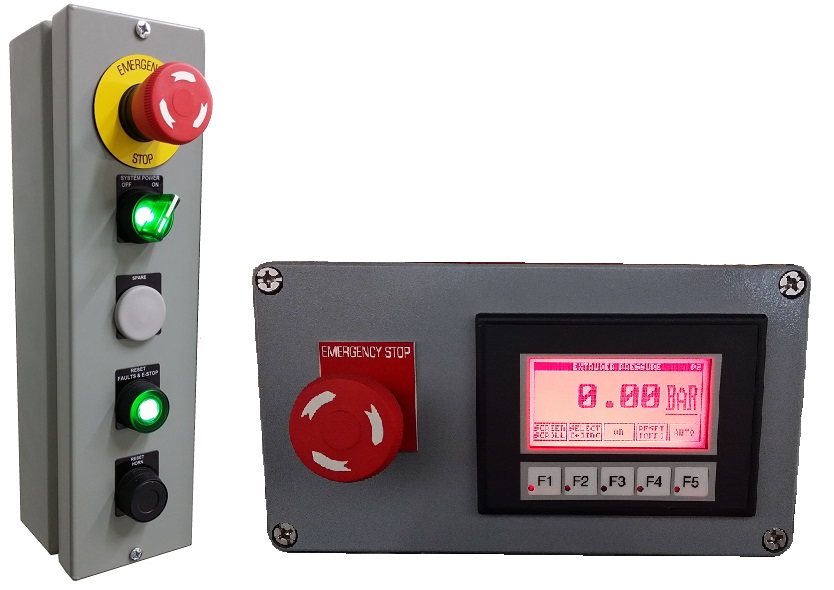

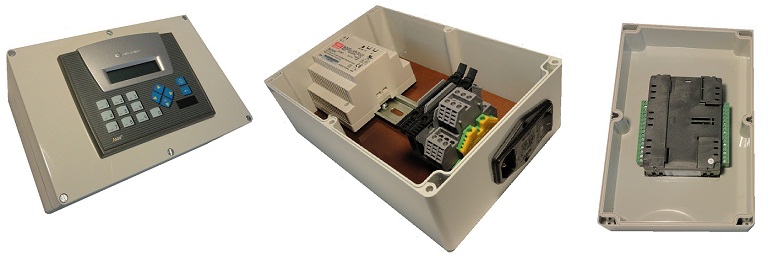

OPA-UN01P101
Pre-assembled enclosure consisting of a 24Vdc @ 1.2A Power Supply, On/Off w/fuse switch, four terminal blocks, including ground, two fuse blocks and a Programmable Logic Controller with onboard I/Os and a built-in Operator Panel. Jazz is specifically designed to control small machines, and to perform simple-to-medium automation tasks. Compact and economical, Jazz enables you to use a low-budget unit without compromising on features and technology.PART NUMBER: OPA-UN01P101
PRICE: $835.00
DESCRIPTION: Dimensions: L=9.45"/240mm * W=6.30"/160mm * H=4.72"/120mm.
PLC included is the JZ10-11-R10 with the following specs:
· Digital Inputs including 2 inputs which can function as either high-speed counters,
or as normal digital inputs
· 4 Relay Outputs
· 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays
· 24 VDC power supply
· Free programing software

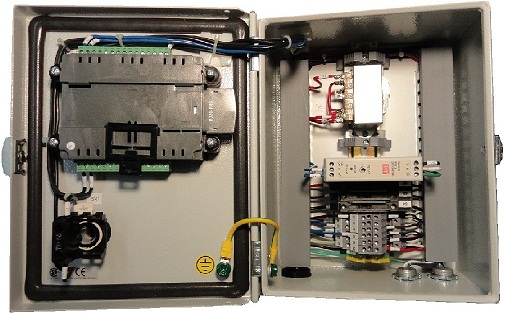

OPA-UN01M101
Pre-wired enclosure consisting of a 24Vdc @ 1A Power Supply, On/Off w/fuse switch, eigh terminal blocks, including ground, three fuse blocks and a Programmable Logic Controller with onboard I/Os and a built-in Operator Panel.Jazz is specifically designed to control small machines, and to perform simple-to-medium automation tasks. Compact and economical, Jazz enables you to use a low-budget unit without compromising on features and technology.
PART NUMBER: OPA-UN01M101
PRICE: $1200.00
DESCRIPTION: Dimensions: L=10" * W=8" * H=6".
PLC included is the JZ10-11-R10 with the following specs:
· Digital Inputs including 2 inputs which can function as either high-speed counters,
or as normal digital inputs
· 4 Relay Outputs
· NEMA 4/12 Enclosure
· 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays
· 24 VDC power supply
· Free programing software

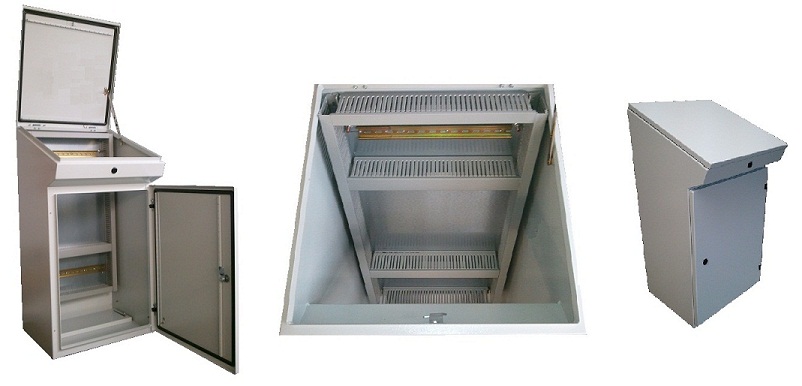

OPA-0335-5010-48-17
Ergonomically designed console assures optimum viewing and convenient operation of build-in elements like touch-screens and pushbuttons. Versatile designs out of mild steel or stainless steel open up vast applications. This pre assembled design includes wiring duct and DIN rail to reduce installation costs and speed up your wire/cable installation.NEMA/EEMAC 12 / IP559
PART NUMBER: OPA-0335-5010-48-17
PRICE: $1500.00
DESCRIPTION: Console with backpanel. Size: 38.47x19.69x19.37 in. (H*W*D).

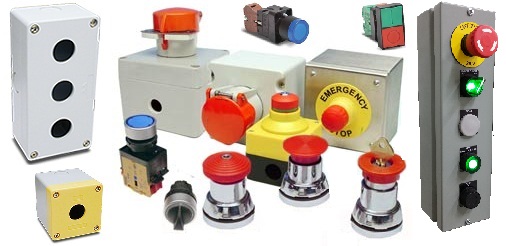

Custom-Made
We can provide customization to our catalogue products or design and develop completely new special products from scratch. Send us a CAD design and we can customize to your specific needs along with full environmental testing according to its environment and use.
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
