Industrial Enclosures Cooling Systems
Electrical Components
Application Specific Controls
FILTER FAN PACKAGES
Injection Molded PlasticMount with Hardware OR mount using Integrated Clips up to 14 gauge.
Filter media is Electrostatic Polypropylene.
All Kits Include Integrated Gaskets and Mounting Template.

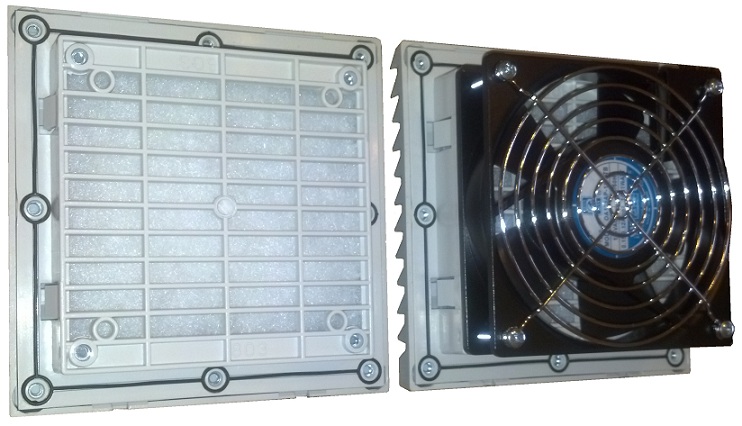

Front View:

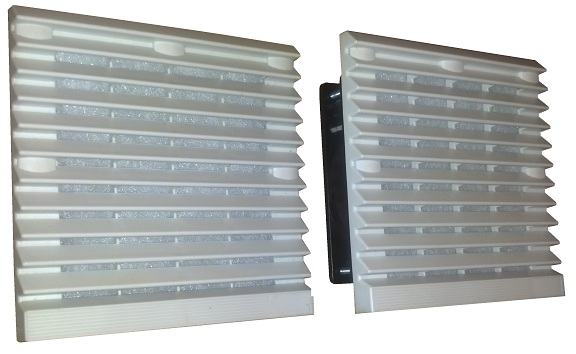

Rear View:
Part No. | CFM | Voltage/Hz. | Amps | Temperature | RPMs | Price |
---|---|---|---|---|---|---|
PFFP-080-126 | 80 | 115V, 50/60 | 0.11 | -40F to 158F | 2900 | $126.00 |
PFFP-080-236 | 80 | 230V, 50/60 | 0.06 | -40F to 158F | 2900 | $132.00 |
PFFP0-80-24 | 80 | 24Vdc | 0.11 | -40F to 158F | 2200 | $141.00 |
PFFP-100-126 | 80 | 230V, 50/60 | 0.18 | -40F to 158F | 3300 | $135.00 |
PFFP-100-236 | 80 | 115V, 50/60 | 0.11 | -40F to 158F | 3300 | $141.00 |
PFFP-100-24V | 80 | 24 Vdc | 0.06 | -40F to 158F | 3000 | $145.00 |

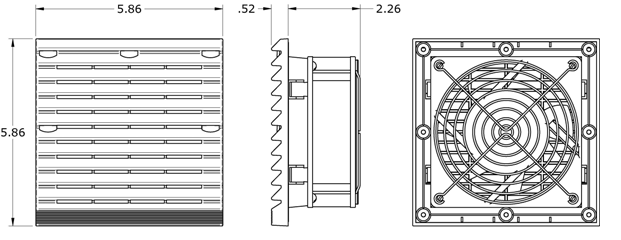

Model PFFP 080 Dimensions

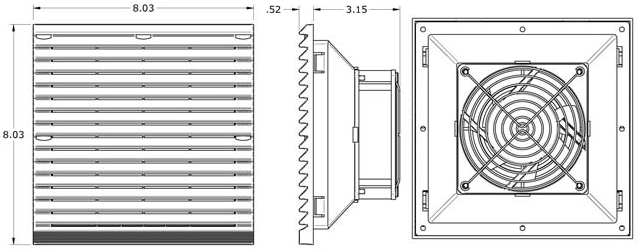

Model PFFP 100 Dimensions
Filters or Fans and Replacement Parts
PART NUMBER: 45003-1PRICE: $29.00
DESCRIPTION: 080-PFFP - Louvered Vent Side Assembly with Filter.
Dimensions 5.86 in. H x 5.86 in. W x 2.26 in. D.
PART NUMBER: 45000-2
PRICE: $29.00
DESCRIPTION: 100-PFFP - Louvered Vent Side Assembly with Filter..
Dimensions 8.03 in. H x 8.03 in. W x 3.15 in. D.
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
