Baldor's AC brushless servo motors BSM N-series provide industrial motion control applications with low inertia to attain the highest acceleration capability - to allow you to position rapidly. The BSM N-series is used in the world's fastest machines and demanding applications.
The BSM motor has been time proven over the years. The BSM N-series is used in the world's fastest machines, in industrial motion control applications such as: indexers, form/fill/seal, flying shears, cut-to-length, robotics, insertion, packaging, capping machines, laser trimming, marking/labeling and many other demanding applications.
BSM N-Series

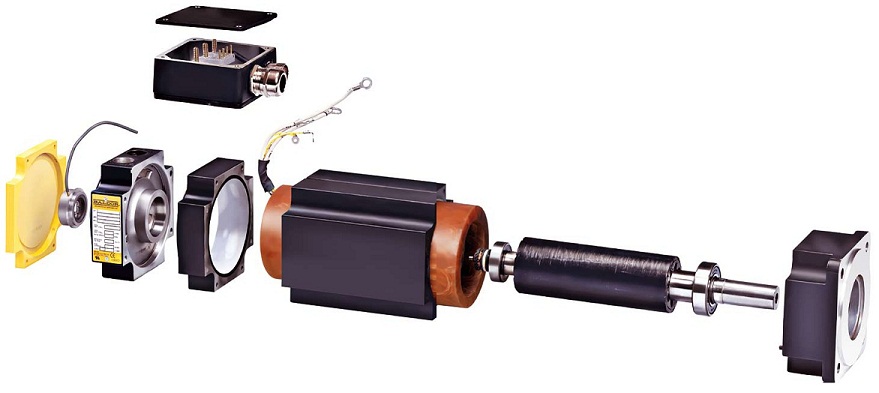

The N-Series brushless servo motors provide a rugged, durable design with high energy Neodymium-Iron-Boron magnetics. This series provides continuous stall torque capability ranging from 3.9 Lb-In (0.45 N-m) to 354 Lb-In (40 N-m). Peak torque capability is nominally 4 times continuous. This series has the lowest inertia to provide the maximum torque per package size. PART NUMBER: BSM90N-175AAPRICE: $1795.00
DESCRIPTION:
Cont. Stall Torque Lb-In (N-m): 53.00 (6.00)
Cont. Stall Current: 7.81
Peak Torque Lb-In (N-m): 212.4 (24)
Peak Current: 28.1
Torque Constant Lb-In/Amp (N-m/Amp): 7.55 (0.85)
Voltage Constant Vpk/KRPM (VRMS/KRPM): 72.9 (51.55)
Resistance: 1.24
Inductance (mHy): 4.15
Inertia Lb-In-s2 (Kg-cm2): 0.003 (3.387)
Speed at 300 Bus Volts (RPM): 4000
Max Speed (RPM): 7000
No. of Motor Poles: 8
Feedback Device: Resolver
PART NUMBER: BSM90N-175CA
PRICE: $1916.80
DESCRIPTION:
† Special: Shaft Oil Seal
Cont. Stall Torque Lb-In (N-m): 53.00 (6.00)
Cont. Stall Current: 7.81
Peak Torque Lb-In (N-m): 212.4 (24)
Peak Current: 28.1
Torque Constant Lb-In/Amp (N-m/Amp): 7.55 (0.85)
Voltage Constant Vpk/KRPM (VRMS/KRPM): 72.9 (51.55)
Resistance: 1.24
Inductance (mHy): 4.15
Inertia Lb-In-s2 (Kg-cm2): 0.003 (3.387)
Speed at 300 Bus Volts (RPM): 4000
Max Speed (RPM): 7000
No. of Motor Poles: 8
Feedback Device: Resolver
PART NUMBER: CBL061RP-12
PRICE: $179.05
DESCRIPTION:
Motor Power Cable
12 AWG at 20Ft. in Length
PART NUMBER: CBL061SF-R
PRICE: $298.32
DESCRIPTION:
Resolver Feedback Cable
20Ft. in Length with Flying Leeds
PART NUMBER: CBL061SF-R1
PRICE: $321.55
DESCRIPTION:
Resolver Feedback Cable
20Ft. in Length with DB Connector at Drive
PART NUMBER:BSM90N-2150AA
PRICE: $1955.00
DESCRIPTION:
Cont. Stall Torque Lb-In (N-m):88.00 (10.00)
Cont. Stall Current: 6.15
Peak Torque Lb-In (N-m):354 (40)
Peak Current: 22.1
Torque Constant Lb-In/Amp (N-m/Amp):15.93 (1.80)
Voltage Constant Vpk/KRPM (VRMS/KRPM):154.6 (109.3)
Resistance:1.92
Inductance (mHy):10.5
Inertia Lb-In-s2 (Kg-cm2):0.0056 (6.3224)
Speed at 300 Bus Volts (RPM):2000
Max Speed (RPM):7000
No. of Motor Poles: 8
Feedback Device: Resolver
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
