OPA-1CR1MSP4A Enclosed Combination Starters
Our Manual Motor Starter integrates a power disconnect, short-circuit and adjustable thermal overload protection in one compact unit. They are available in NEMA 1, 4X, 12 and in 3 phase 200-208Vac, 220-240Vac, 440-460Vac, and 575-600Vac. These units are cost effective, compact, easy to install, and maintain. They can be used in group motor installations ranging from 0.5Hp to 75Hp in parallel with Variable Frequency Drives and Soft Starters.
• Current range 0.1 to 50 A
• UL 508A Listed (US and Canada) for control and protection of motor loads
• Motor disconnect
• Short-circuit and overload protection
• Motor switching (magnetic)
• Pushbuttons, selector switches, and pilot lights - Optional
• Control transformer - Optional
• Auxiliary and trip indication contacts - Optional
• Other custom configurations available

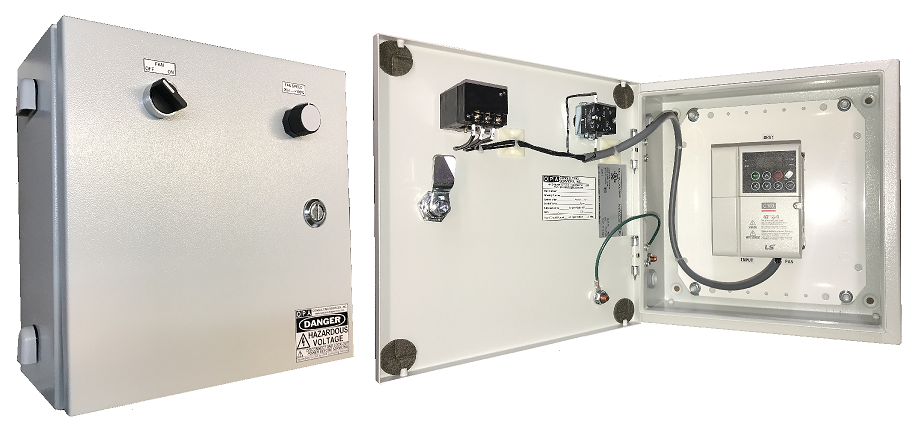

AC VFD Inverter Control Panel from 115/230/460VAC, 1/4 HP to 100 HP
AC Drive control panels are available in voltages of 115VAC, 230VAC, and 480VAC and sizes of 1/4 HP to 100 HP. Variable Frequency Drives are mounted in a NEMA 1 enclosure and includes two vents. These control panels can be powered by single or three phase power.

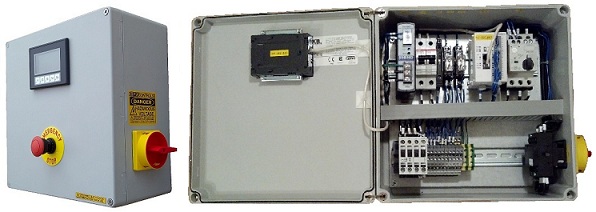

MTR-HC-11-16 for Marine and Harsh Environments
Pre-Configured Motor Controller saves time in sourcing individual controls, wiring labeling and terminations. Easy to understand display for alarming and controls. No fault codes to look up. Step by step instructions to turn on or off motor and make set point changes. It also has password protection capabilities.
The unit below can handle between 11 to 16 Amps at 480Vac. Please call or send us an e-mail with your requirements.
· Control Power OFF-ON, with Master Control Relay (MCR) in series with a Safety Relay.
· Circuit Breaker Type Combination Starters with MCR in series with a Safety Relay.
· Type S combination starters using thermal magnetic breakers.
PRICE: From $981.00 and up depending on the configuration
Motor Control with Safety Interlock
Designed for optimal protection our pre-configured Combination Starters and Control Power ON/OFF Panels with Safety Relay integrated in the control logic are an easy integration in your existing control system when safety is of concern. We have pre-configured, affordable control panels that have Control Power ON/OFF circuitry with a Safety Control Relay in series to protect the operator when a door to the machine has been opened or a light barrier has been broken. This is a must have addition if you have Old Control Panels where Control Power ON/OFF circuitry is not available. Also available in combination with motor starters where when opening a door the motor must shut down.
· Circuit Breaker Type Combination Starters with MCR in series with a Safety Relay.
· Type S combination starters using thermal magnetic breakers.
PRICE: From $910 and up depending on the configuration (Please call or send us an e-mail).

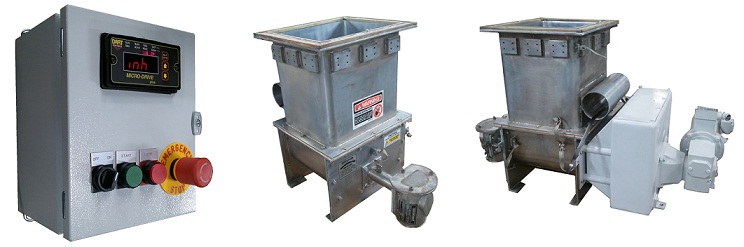

DC Drive Feeder Speed Controller
Our closed loop drive feeder control delivers clean DC current to the motor, which provides a cooler, quieter motor and also extends the motor brush life. The unit is a field-programmable closed loop DC drive system employing an advanced velocity-form PID algorithm for accurate and responsive control. It also features a unique, isolated 4-20mA input and output for easy integration with existing Process Control systems.
Standard features include: 1/50 to 2.0 HP range, universal power supply supports 85-265 VAC input, NEMA 4 stand-alone enclosure, front panel field-programming (with lock-out jumper), target and actual speed can be any engineering unit of measure, two alarm relay outputs (form C, 5 Amp @ 250 VAC), Large 1/2 in LED display, master/follower modes, displays set point or actual running speed, and adjustable PID settings.
Area of use:
·Volumetric Feeders
·Winders
·Mixers/Agitators
·Batching Conveyors
PRICE: From $1385 and up depending on the configuration. Please call or send us an E-Mail.

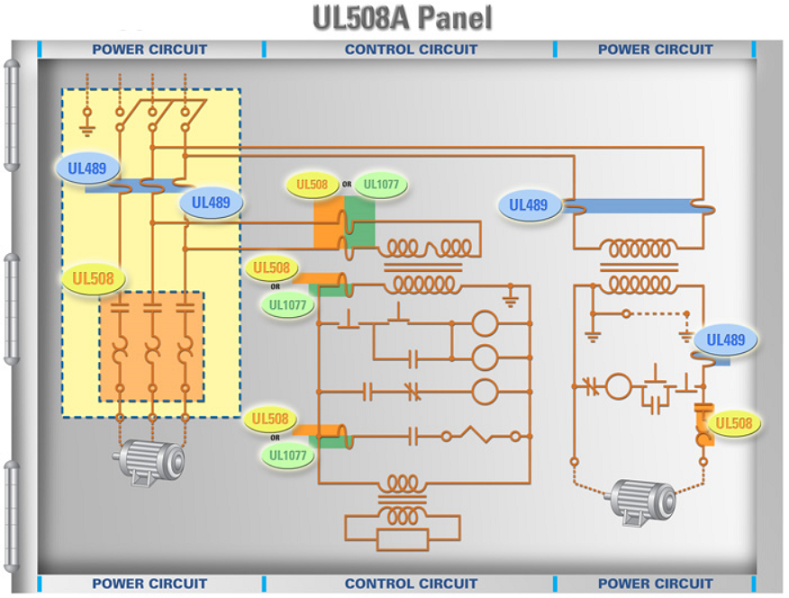

UL 508A Control Panels
Using the latest technology OPA Controls can provide quality control panels to meet the most challenging industrial tasks. Our products offer the highest level of reliability, efficiency, and workmanship. Please call or Email us with your specifications.
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
