Lovato Electric Platinum 22mm IEC
Pushuttons Switches & Indicators
Electrical Components
Application Specific Controls

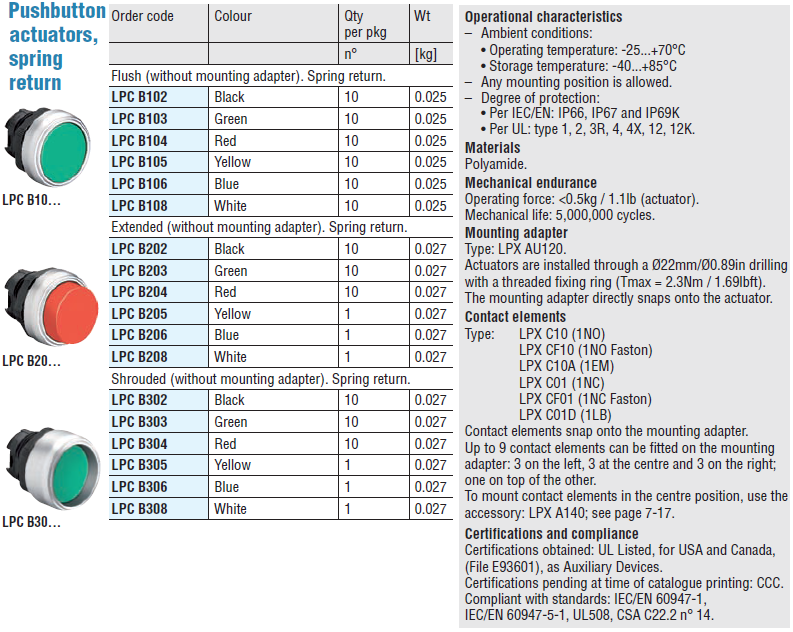

Platinum 22mm IEC Push Buttons Actuators, Spring Return
Operators are UL Listed and are rated for Type 1, 2, 3, 3R, 4/4X, 12, 13 and IP65 applications, and meet global standards requirements.
Flush (Without Mounting Adaptor). Spring Return
| Part Number |
Description |
Price |
| LPC B102 |
Black |
$14.20 |
| LPC B103 |
Green |
$14.20 |
| LPC B104 |
Red |
$14.20 |
| LPC B105 |
Yellow |
$14.20 |
| LPC B106 |
Blue |
$14.20 |
| LPC B108 |
White |
$14.20 |
Extended (Without Mounting Adaptor). Spring Return
| Part Number |
Description |
Price |
| LPC B202 |
Black |
$7.10 |
| LPC B203 |
Green |
$7.10 |
| LPC B204 |
Red |
$7.10 |
| LPC B205 |
Yellow |
$7.10 |
| LPC B206 |
Blue |
$7.10 |
| LPC B208 |
White |
$7.10 |
Shrouded (Without Mounting Adaptor). Spring Return
| Part Number |
Description |
Price |
| LPC B302 |
Black |
$14.20 |
| LPC B303 |
Green |
$14.20 |
| LPC B304 |
Red |
$14.20 |
| LPC B305 |
Yellow |
$14.20 |
| LPC B306 |
Blue |
$14.20 |
| LPC B308 |
White |
$14.20 |

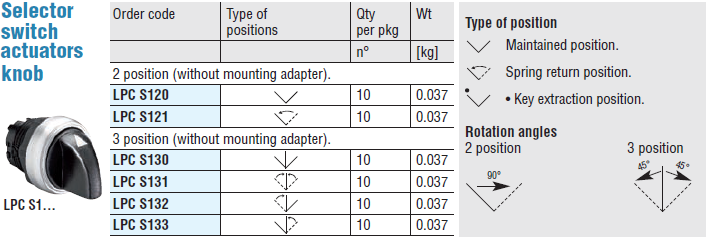

Platinum 22mm IEC Selector Switch Actuators Knob
Two Position. Without mounting adapter.
| Part Number |
Description |
Price |
| LPC S120 |
SELECTOR 2 POSITIONS 0-1 |
$13.10 |
| LPC S121 |
SELECTOR 2 POSITIONS 0 < 1 |
$15.30 |
Three Position. Without mounting adapter.
| Part Number |
Description |
Price |
| LPC S130 |
SELECTOR 3 POSITIONS 1-0-2 |
$13.30 |
| LPC S131 |
SELECTOR 3 POSITIONS 1>0<2 |
$15.30 |
| LPC S132 |
SELECTOR 3 POSITIONS 1>0-2 |
$15.30 |
| LPC S133 |
SELECTOR 3 POSITIONS 1-0<2 |
$15.30 |

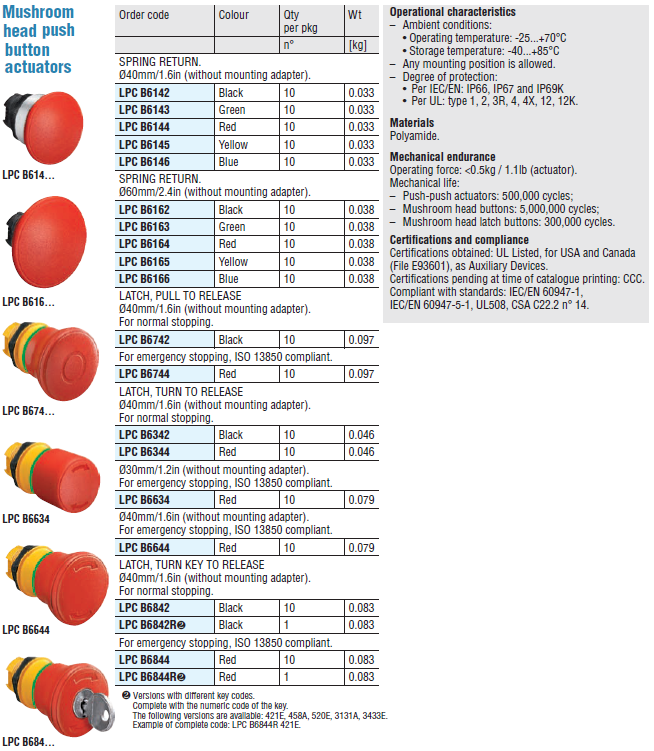

Platinum 22mm IEC Mushroom Head Push Button Actuator
Spring Return 40mm. Without mounting adapter.
| Part Number |
Description |
Price |
| LPCB6142 |
MUSHROOM HEAD PUSH-BUTTON 40MM BLACK |
$14.25 |
| LPCB6143 |
MUSHROOM HEAD PUSH-BUTTON 40MM GREEN |
$14.25 |
| LPCB6144 |
MUSHROOM HEAD PUSH-BUTTON 40MM RED |
$14.25 |
| LPCB6145 |
MUSHROOM HEAD PUSH-BUTTON 40MM YELLOW |
$14.25 |
| LPCB6146 |
MUSHROOM HEAD PUSH-BUTTON 40MM BLUE |
$14.25 |
Spring Return 60mm. Without mounting adapter.
| Part Number |
Description |
Price |
| LPCB6162 |
MUSHROOM HEAD PUSH-BUTTON 60MM BLACK |
$17.30 |
| LPCB6163 |
MUSHROOM HEAD PUSH-BUTTON 60MM GREEN |
$17.30 |
| LPCB6164 |
MUSHROOM HEAD PUSH-BUTTON 60MM RED |
$17.30 |
| LPCB6165 |
MUSHROOM HEAD PUSH-BUTTON 60MM YELLOW |
$17.30 |
| LPCB6166 |
MUSHROOM HEAD PUSH-BUTTON 60MM BLUE |
$17.30 |
Latch pull to release 40mm. Without mounting adapter.
| Part Number |
Description |
Price |
| LPCB6742 |
BLACK MUSHROOM-HEAD ACTUATOR 40MM |
$20.00 |
Latch pull to release 40mm. Without mounting adapter. For emergency stopping ISO 13850 Compliant.
| Part Number |
Description |
Price |
| LPCB6744 |
RED MUSHROOM-HEAD ACTUATOR 40MM |
$27.00 |
Latch turn to release 40mm. Without mounting adapter. For normal stopping.
| Part Number |
Description |
Price |
| LPCB6342 |
BLACK MUSHROOM-HEAD ACTUATOR 40MM |
$27.00 |
| LPCB6344 |
RED MUSHROOM-HEAD ACTUATOR 40MM |
$27.00 |
Latch turn to release 30mm. Without mounting adapter.For emergency stopping ISO 13850 Compliant.
| Part Number |
Description |
Price |
| LPCB6634 |
RED MUSHROOM-HEAD ACTUATOR 30MM |
$35.00 |
Latch turn to release 40mm. Without mounting adapter. For emergency stopping ISO 13850 Compliant.
| Part Number |
Description |
Price |
| LPCB6644 |
RED MUSHROOM-HEAD ACTUATOR 40MM |
$35.00 |
Latch turn key to release 40mm. Without mounting adapter. For normal stopping.
| Part Number |
Description |
Price |
| LPCB6842 |
BLACK MUSHROOM-HEAD ACTUATOR 40MM |
$35.00 |
| LPCB6842R |
RED MUSHROOM-HEAD ACTUATOR 40MM |
$50.00 |
Latch turn key to release 40mm. Without mounting adapter. For emergency stopping ISO 13850 Compliant.
| Part Number |
Description |
Price |
| LPCB6844 |
RED MUSHROOM-HEAD ACTUATOR 40MM |
$60.00 |
| LPCB6844R |
RED MUSHROOM-HEAD ACTUATOR 40MM |
$65.00 |

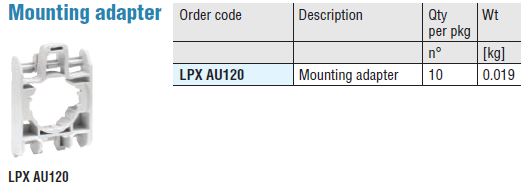

Platinum 22mm IEC Push Buttons Mounting Adapter
Mounting Adapter
| Part Number |
Description |
Price |
| LPXAU120 |
MOUNTING ADAPTER |
$2.00 |

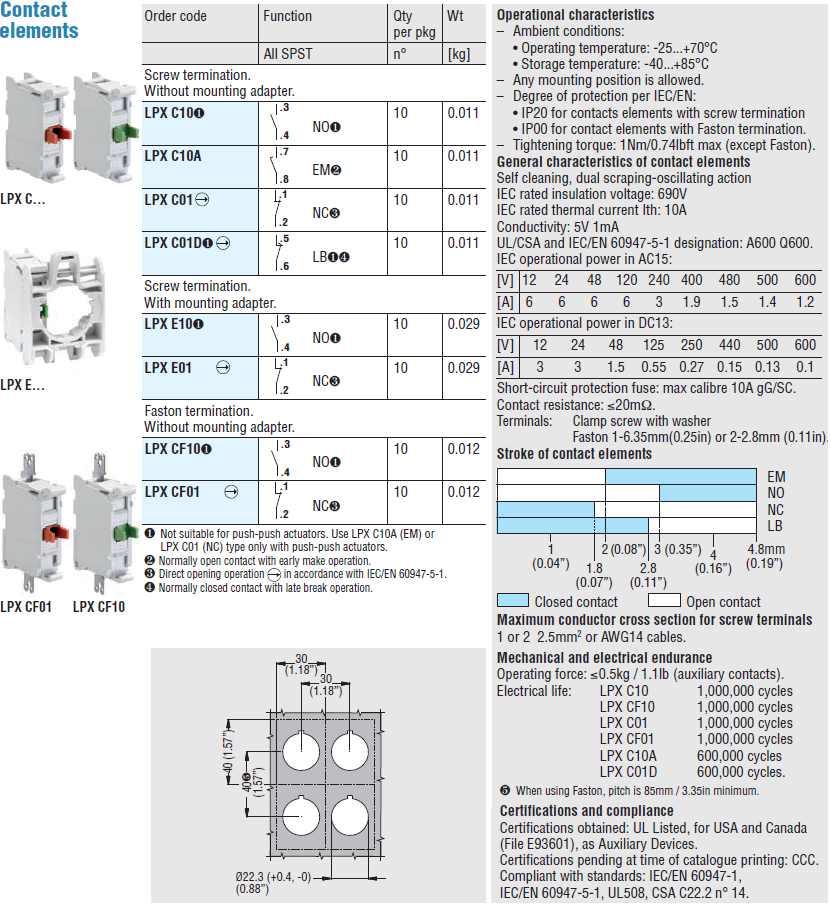

Platinum 22mm IEC Push Buttons Contact Elements
Screw termination. Without mounting adapter
| Part Number |
Description |
Price |
| LPX C10 |
AUX CONTACT 1NO SCREW TERMINALS |
$6.75 |
| LPX C10A |
AUX CONTACT 1EM EARLY MAKE |
$9.00 |
| LPX C01 |
AUX CONTACT 1NC SCREW TERMINALS |
$6.75 |
| LPX C01D |
AUX CONTACT 1LB LATE BREAK |
$9.00 |
Screw termination. With mounting adapter
| Part Number |
Description |
Price |
| LPX E10 |
AUX CONTACT 1NO C/W MNTG ADAPTER |
$10.90 |
| LPX E01 |
AUX CONTACT 1NC C/W MNTG ADAPTER |
$10.90 |
Faston termination. Without mounting adapter
| Part Number |
Description |
Price |
| LPX CF10 |
ADD-ON AUX CONTACT 1NO WITH FASTON TERMINALS |
$7.75 |
| LPX CF01 |
ADD-ON AUX CONTACT 1NC WITH FASTON TERMINALS |
$7.75 |
Complete Product Catalog Download
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
