LSIS S100 Drives...Strong power with a compact size!
Powerful sensorless control, and a diverse range of user friendly functions delivers added value to our customers. Meet the new standard drive LSLV-S100 by LSIS for the global market.
Specifications:
· Sensorless control functions
· Starting torque (200%/0.5Hz)

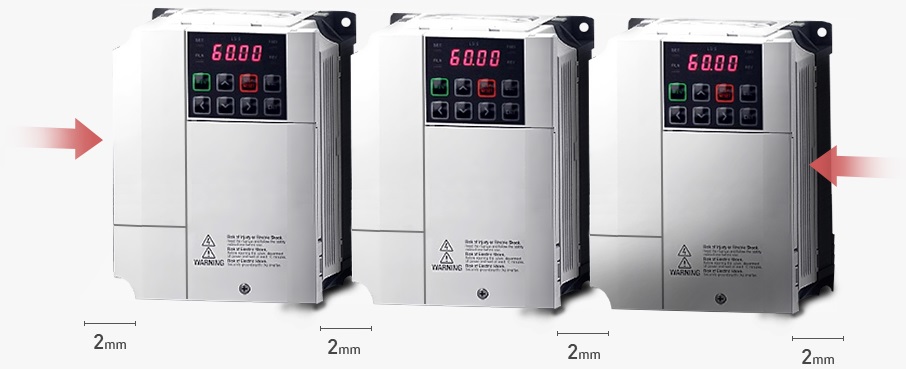

· Side-by-side installation
· Decreased dimensions
· Various field networks
· Built-in EMC filter
· International Standards
· Built-in Safe Torque Off (STO)

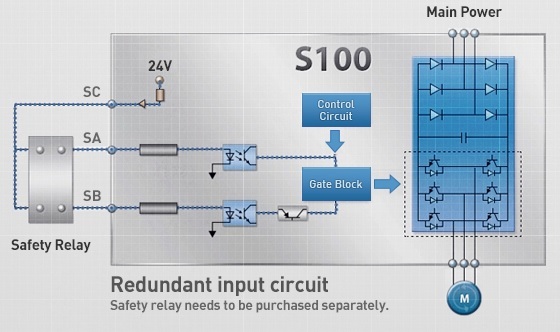

· Redundant input circuit
| Part Number | Order Code | HP | AMPS | EMC Filter | Price |
|---|---|---|---|---|---|
| LSLV0004S100-1EONNS | 6033000100 | 1/2 | 2.5 | NO | $199.00 |
| LSLV0004S100-1EOFNS | 6033000500 | 1/2 | 2.5 | YES | $256.00 |
| LSLV0008S100-1EONNS | 6033000200 | 1 | 5 | NO | $265.00 |
| LSLV0008S100-1EOFNS | 6033000600 | 1 | 5 | YES | $303.00 |
| LSLV0015S100-1EONNS | 6033000300 | 2 | 8 | NO | $291.00 |
| LSLV0015S100-1EOFNS | 6033000700 | 2 | 8 | YES | $328.00 |
| LSLV0022S100-1EONNS | 6033000400 | 3 | 11 | NO | $3830.00 |
| LSLV0022S100-1EOFNS | 6033000800 | 3 | 11 | YES | $417.00 |
| Part Number | Order Code | HP | AMPS | EMC Filter | Price |
|---|---|---|---|---|---|
| LSLV0004S100-2EONNS | 6030000100 | 1/2 | 2.5 | NO | $186.00 |
| LSLV0008S100-2EONNS | 6033000200 | 1 | 5 | NO | $214.00 |
| LSLV0015S100-2EONNS | 6033000300 | 2 | 8 | NO | $248.00 |
| LSLV0022S100-2EONNS | 6033000400 | 3 | 11 | NO | $287.00 |
| LSLV0037S100-2EONNS | 6033000500 | 5 | 16 | NO | $386.00 |
| LSLV0040S100-2EONNS | 6033000600 | 5.4 | 17 | NO | $386.00 |
| LSLV0055S100-2EONNS | 6033000700 | 7.5 | 24 | NO | $507.00 |
| LSLV0075S100-2EONNS | 6033000800 | 10 | 32 | NO | $621.00 |
| LSLV0110S100-2EONNS | 6030000900 | 15 | 46 | NO | $800.00 |
| LSLV0150S100-2EONNS | 6030001000 | 20 | 60 | NO | $910.00 |
| Part Number | Order Code | HP | AMPS | EMC Filter | Price |
|---|---|---|---|---|---|
| LSLV0004S100-4EONNS | 6031000100 | 1/2 | 1.3 | NO | $272.00 |
| LSLV0004S100-4EOFNS | 6031007100 | 1/2 | 1.3 | YES | $310.00 |
| LSLV0008S100-4EONNS | 6031000200 | 1 | 5 | NO | $321.00 |
| LSLV0008S100-4EOFNS | 6031007200 | 1 | 5 | YES | $361.00 |
| LSLV0015S100-4EONNS | 6031000300 | 2 | 4 | NO | $358.00 |
| LSLV0015S100-4EOFNS | 6031007300 | 2 | 4 | YES | $395.00 |
| LSLV0022S100-4EONNS | 6031000400 | 3 | 5 | NO | $390.00 |
| LSLV0022S100-4EOFNS | 6031007400 | 3 | 5 | YES | $428.00 |
| LSLV0037S100-4EONNS | 6031000500 | 5 | 8 | NO | $437.00 |
| LSLV0037S100-4EOFNS | 6031007500 | 5 | 8 | YES | $438.00 |
| LSLV0040S100-4EONNS | 6031000600 | 5.4 | 9 | NO | $401.00 |
| LSLV0040S100-4EOFNS | 6031007600 | 5.4 | 9 | YES | $438.00 |
| LSLV0055S100-4EOFNS | 6031000700 | 7.5 | 12 | YES | $523.00 |
| LSLV0075S100-4EOFNS | 6031000800 | 10 | 16 | YES | $654.00 |
| LSLV0110S100-4EOFNS | 6031000900 | 15 | 24 | YES | $855.00 |
| LSLV0150S100-4EOFNS | 6031007400 | 20 | 30 | YES | $1020.00 |
| LSLV0185S100-4EOFNS | 6031001100 | 25 | 39 | YES | $1166.00 |
| LSLV0220S100-4EOFNS | 6031001200 | 30 | 45 | YES | $1220.00 |
| LSLV0300S100-4CONDS | 6031006000 | 40 | 61 | NO | $2080.00 |
| LSLV0300S100-4COFDS | 6031001300 | 40 | 61 | YES | $2118.00 |
| LSLV0370S100-4CONDS | 6031006100 | 50 | 75 | NO | $2430.00 |
| LSLV0370S100-4COFDS | 6031001400 | 50 | 75 | YES | $2466.00 |
| LSLV0450S100-4CONDS | 6031006200 | 60 | 91 | NO | $2848.00 |
| LSLV0450S100-4COFDS | 6031001500 | 60 | 91 | YES | $2882.00 |
| LSLV0550S100-4CONDS | 6031001600 | 75 | 110 | NO | $3463.00 |
| LSLV0750S100-4CONDS | 6031001700 | 100 | 152 | YES | $3483.00 |
| Model Number | Order Code | Description | Price |
|---|---|---|---|
| LSIS-LCD-S100 | 64110038 | LCD Keypad, S100 Series | $52.00 |
| LSIS-2M-S100 | 64110009 | Cable, 2M, Drive to Keyboard | $13.00 |
| LSIS-3M-S100 | 64110010 | Cable, 3M, Drive to Keyboard | $19.00 |
| LSIS-TCP-S100 | 64150003 | Communication Protocol, INV, Ethernet IP & Modbus TCP for LSLV-S100 | $98.00 |
| CECT-S100 | 64150034 | Communication Protocol EtherCAT | $186.00 |
| LSIS-PROFINET-S100 | 64150035 | Communication Protocol Profinet | $186.00 |
| LSIS-TCP-S100 | 64150025 | INV,Extension I/O for LSLV-S100 --> 3 Digital Inputs, 2 Digital Outputs, 1 Analog Output, 2 Analog Inputs | $186.00 |
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
