M100 Variable Frequency Drive/Inverter
M100 is designed to meet global standards through upgraded design, materials and manufacturing improving its endurance for harsh environments.
The M100 has an advanced sensorless vector control along with a highly adaptable V/F mode making it one of the most versatile drives on the market.
· Built-in EMC filter (C2 Class)

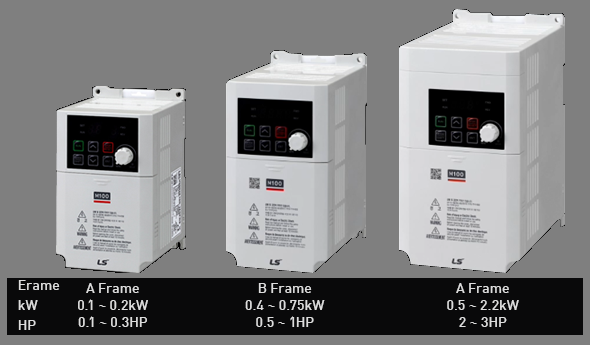

· Compact & Micro size
· DIN rail installation
· Side by side installation (2mm)
· Potenciometer
· Built-in RS485 communication (Advanced model)
· Built-in DB Unit (1.5kW or higher)
· Easy connection with RJ 45 port (Modbus, Smart Copier, Remote keypad, DriveView 7)
· CE and New UL 61800-5-2 design
| Model Number | Order Code | HP | KW | Output Current[A] | Price |
|---|---|---|---|---|---|
| LSLV0001M100-1EOFNA | 66430007 | 1/8 | 0.1 | 0.8 | $132.00 |
| LSLV0002M100-1EOFNA | 66430008 | 1/4 | 0.2 | 1.4 | $134.00 |
| LSLV0004M100-1EOFNA | 66430009 | 1/2 | 0.4 | 2.4 | $140.00 |
| LSLV0008M100-1EOFNA | 66430010 | 1 | 0.75 | 4.2 | $160.00 |
| LSLV0015M100-1EOFNA | 66430011 | 2 | 1.5 | 7.5 | $167.00 |
| LSLV0022M100-1EOFNA | 66430012 | 3 | 2.2 | 10.0 | $179.00 |
| Model Number | Order Code | Description | Price |
|---|---|---|---|

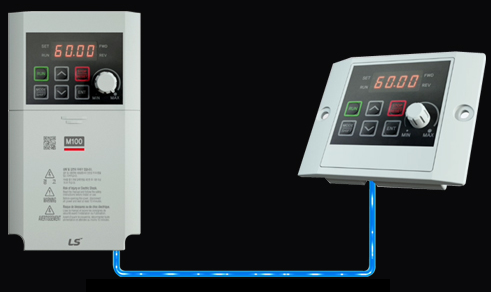

| LS Elec 1M | 64170007 | Includes Frame Kit + 7segment Keypad for installation on the door | $48.00 |
| LS Elec 1M | 64170008 | Includes Frame Kit + 7segment Keypad for installation on the door | $58.00 |
| LS Elec 1M | 64170009 | Includes Frame Kit + 7segment Keypad for installation on the door | $60.00 |
| LS Elec 1M | 64170010 | Includes Frame Kit + 7segment Keypad for installation on the door | $62.00 |
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
