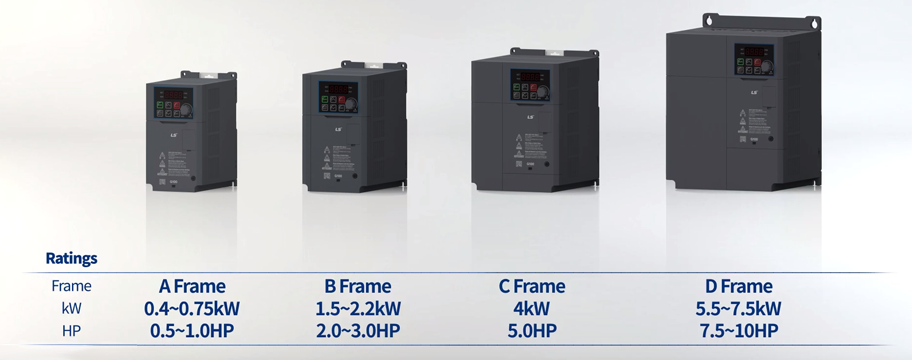

G100 Variable Frequency Drive/Inverter
G100 is designed to meet global standards through upgraded design, materials and manufacturing improving its endurance for harsh environments.
The G100 has an advanced sensorless vector control along with a highly adaptable V/F mode making it one of the most versatile drives on the market.
· Built-in EMC filter (C2 Class)
· Compact & Micro size
· DIN rail installation
· Side by side installation (2mm)
· Potenciometer
· Built-in RS485 communication (Advanced model)
· Built-in DB Unit (1.5kW or higher)
· Easy connection with RJ 45 port (Modbus, Smart Copier, Remote keypad, DriveView 7)
· CE and New UL 61800-5-2 design
| Model Number | Order Code | HP | KW | Output Current[A] | Price |
|---|---|---|---|---|---|
| LSLV0004G100-2EONN | 6040000100 | 1/2 | 0.4 | HD 2.5/ND 3.1 | $160.00 |
| LSLV0008G100-2EONN | 6040000200 | 1 | 0.75 | HD 5.0/ND 6.0 | $168.00 |
| LSLV0015G100-2EONN | 6040000300 | 2 | 1.5 | HD 8.0/ND 9.6 | $180.00 |
| LSLV0022G100-2EONN | 6040000400 | 3 | 2.2 | HD 11.0/ND 12.0 | $187.00 |
| LSLV0040G100-2EONN | 6040000600 | 5 | 3.7 | HD 17.0/ND 18.0 | $228.00 |
| LSLV0055G100-2EONN | 6040000700 | 7.5 | 5.5 | HD 24.0/ND 30.0 | $359.00 |
| LSLV0075G100-2EONN | 6040000800 | 10 | 7.5 | HD 32.0/ND 40.0 | $405.00 |
| Model Number | Order Code | HP | KW | Output Current[A] | Price |
|---|---|---|---|---|---|
| LSLV0004G100-4EOFN | 6041002100 | 1/2 | 0.4 | HD 1.3/ND 2.0 | $168.00 |
| LSLV0008G100-4EOFN | 6041002200 | 1 | 0.75 | HD 2.5/ND 3.1 | $176.00 |
| LSLV0015G100-4EOFN | 6041002300 | 2 | 1.5 | HD 4.0/ND 5.1 | $184.00 |
| LSLV0022G100-4EOFN | 6041002400 | 3 | 2.2 | HD 5.5/ND 6.9 | $194.00 |
| LSLV0040G100-4EOFN | 6041002600 | 5 | 3.7 | HD 9.0/ND 10.0 | $220.00 |
| LSLV0055G100-4EOFN | 6041002700 | 7 | 5.5 | HD 12.0/ND 16.0 | $314.00 |
| LSLV0075G100-4EOFN | 66041002800 | 10 | 7.5 | HD 16.0/ND 23.0 | $335.00 |
| Model Number | Order Code | Description | Price |
|---|---|---|---|
| LS Elec 1M | 64180001 | Includes Frame Kit + 7segment Keypad for installation on the door | $48.00 |
| LS Elec 1M | 64180002 | Includes Frame Kit + 7segment Keypad for installation on the door | $58.00 |
| LS Elec 1M | 64180003 | Includes Frame Kit + 7segment Keypad for installation on the door | $60.00 |
| LS Elec 1M | 64180004 | Includes Frame Kit + 7segment Keypad for installation on the door | $62.00 |
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
