Noark Motor Overloads, Manual Starters, etc.
Electrical Components
Application Specific Controls
Noark Ex9SN Overload Relays

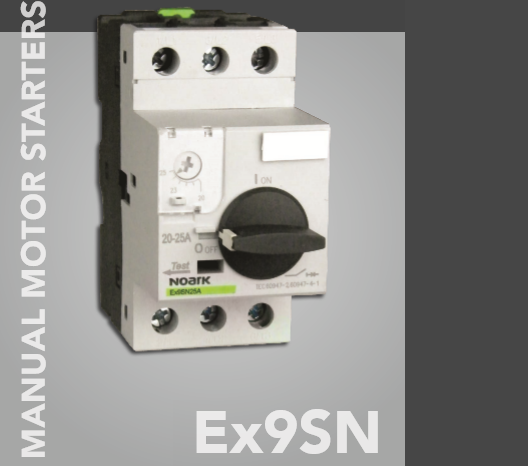

Manual motor starters are electromechanical protection devices for the main circuit. They are used mainly to switch motors manually ON/OFF and protect them fuse less against short circuit and loss-phase. None-fuss protection with a manual motor starter saves costs, space and ensures a quick reaction under short-circuit condition, by switching off the motor within milliseconds. Manual motor starter combinations are setup together with contactors and overload relays.
cULus and CE markings make them suitable for use anywhere in the world. IP20 guarded terminals, selectable reset mode, and selectable test mode functionality - and of course c3controls quality are just a few of the features that will make Series 320 Overload Relays ideal for your application.
· Available with enclosed coils for protection against particle contamination.
· Short-circuit protection.
· Disconnect function: Overload protection and Loss-phase protection.
· Suitable for three and single-phase applicatio.
· Trip-free mechanism.
· Lockable handle.
· UL 508 Listed, File Number E467185, UL 60947-1 and 60947-4-1A.
· Certified for Canada according to CSA standards 22.2 No. 14.
· IEC/EN 60947-2 and 60947-4-1 .
Product | Part Number | Description | Rated Current (A) | List Price (USD) |
---|---|---|---|---|
Ex9SN25A0.16A | 1600001 | Rotary Handle | 0.10 - 0.16 | $38.00 |
Ex9SN25A0.25A | 1600002 | Rotary Handle | 0.16 - 0.25 | $38.00 |
Ex9SN25A0.4A | 1600003 | Rotary Handle | 00.25 - 0.40 | $38.00 |
Ex9SN25A0.63A | 1600004 | Rotary Handle | 0.40 - 0.63 | $38.00 |
Ex9SN25A1A | 1600005 | Rotary Handle | 0.63 - 1 | $38.00 |
Ex9SN25A1.6A | 1600006 | Rotary Handle | 1 - 1.6 | $38.00 |
Ex9SN25A2.5A | 1600007 | Rotary Handle | 1.6 - 2.5 | $38.00 |
Ex9SN25A4A | 1600008 | Rotary Handle | 2.5 - 4 | $38.00 |
Ex9SN25A6.3A | 1600009 | Rotary Handle | 4 - 6.3 | $38.00 |
Ex9SN25A10A | 1600010 | Rotary Handle | 6 ~ 10 | $38.00 |
Ex9SN25A14A | 1600011 | Rotary Handle | 9 ~ 14 | $38.00 |
Ex9SN25A18A | 1600012 | Rotary Handle | 13 - 18 | $38.00 |
Ex9SN25A23A | 1600013 | Rotary Handle | 17 - 23 | $38.00 |
Ex9SN25A25A | 1600014 | Rotary Handle | 20 - 25 | $38.00 |
Product | Part Number | Description | Rated Current (A) | List Price (USD) |
---|---|---|---|---|
Ex9SN25B0.16A | 1600015 | Pushbutton | 0.10 - 0.16 | $38.00 |
Ex9SN25B0.25A | 1600016 | Pushbutton | 0.16 - 0.25 | $38.00 |
Ex9SN25B0.4A | 1600017 | Pushbutton | 00.25 - 0.40 | $38.00 |
Ex9SN25B0.63A | 1600018 | Pushbutton | 0.40 - 0.63 | $38.00 |
Ex9SN25B1A | 1600019 | Pushbutton | 0.63 - 1 | $38.00 |
Ex9SN25B1.6A | 1600020 | Pushbutton | 1 - 1.6 | $38.00 |
Ex9SN25B2.5A | 1600021 | Pushbutton | 1.6 - 2.5 | $38.00 |
Ex9SN25B4A | 1600022 | Pushbutton | 2.5 - 4 | $38.00 |
Ex9SN25B6.3A | 1600023 | Pushbutton | 4 - 6.3 | $38.00 |
Ex9SN25B10A | 1600024 | Pushbutton | 6 ~ 10 | $38.00 |
Ex9SN25B14A | 1600025 | Pushbutton | 9 ~ 14 | $38.00 |
Ex9SN25B18A | 1600026 | Pushbutton | 13 - 18 | $38.00 |
Ex9SN25B23A | 1600027 | Pushbutton | 17 - 23 | $38.00 |
Ex9SN25B25A | 1600028 | Pushbutton | 20 - 25 | $38.00 |
Noark Ex9SN Accessories: Auxiliary Contact and Enclosure
Note: Ex9SN Manual Motor Starter Not Included.Product | Part Number | Description | Type | List Price (USD) |
---|---|---|---|---|

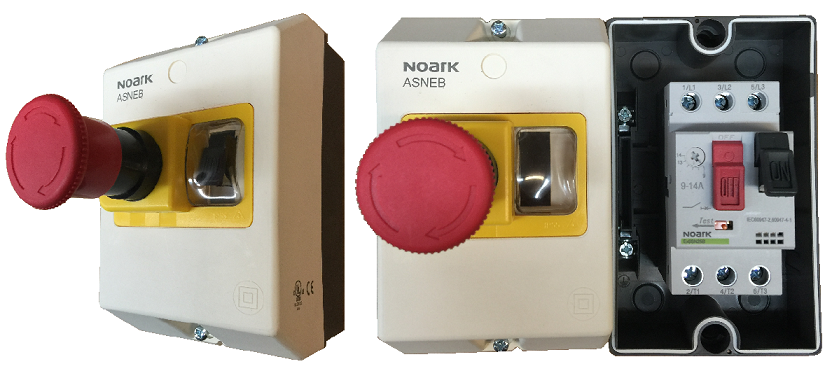

ASNEA | 1600043 | Manual Motor Starter IP55 Waterproof Mounting Box | Actuating Diaphragm | $20.00 |
ASNEB | 1600044 | Manual Motor Starter IP55 Waterproof Mounting Box | Emergency Stop Pushbutton | $27.00 |

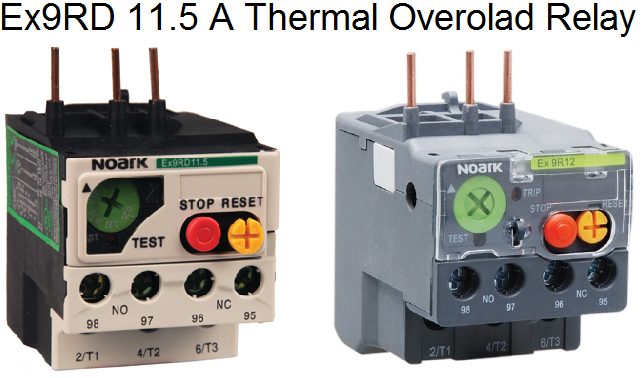

NOARK Ex9RD 11.5 A Thermal Overolad Relay
Thermal overload relays are economic electromechanical protection devices for the main circuit. They are used mainly to protect motors against overload and phase failures. Starter combinations are setup together with contactors.
The overload relays have a setting scale in Amperes, which allows the direct adjusting of the relay without any additional calculation. In compliance with international and national standards, the setting current is the rated current of the motor and not the tripping current (no tripping at 1.05 x I, tripping at 1.2 x I; I = setting current). The relays are constructed to protect themselves in the event of an overload. The overload relay has to be protected against short-circuit. The appropriate short-circuit protection devices are shown in the table..
· Rated current from 6~12 A @ 600 Vac, 50/60 Hz.
· ROverload protection trip Class 10 A.
· Phase loss sensitivity.
· Temperature compensation from -13 to 131 F (-25 to +55 C).
· Adjustable current setting for overload protection.
· Automatic or manual reset selectable.
· Trip-free mechanism.
· Status indication.
· STOP and TEST function.
· Direct mount to contactors or 35 mm DIN rail mounting base option.
Product | Part Number | Current Rating | Ratings | List Price (USD) |
---|---|---|---|---|
Ex9RD11.5A0.16 | 1410001 | 0.1 - 0.16 Amps | UL508 | $12.75 |
Ex9RD11.5A0.25 | 1410002 | 0.16 - 2.5 Amps | UL508 | $12.75 |
Ex9RD11.5A0.4 | 1410003 | 0.25 - 0.4 Amps | UL508 | $12.75 |
Ex9RD11.5A0.63 | 1410004 | 0.4 - 0.63 Amps | UL508 | $12.75 |
Ex9RD11.5A0.63 | 1410004 | 0.4 - 0.63 Amps | UL508 | $12.75 |
Ex9RD11.5A1 | 1410005 | 0.63 - 1.0 Amps | UL508 | $12.75 |
Ex9RD11.5A1.6 | 1410008 | 1.0 - 1.6 Amps | UL508 | $12.75 |
Ex9RD11.5A2 | 1410006 | 1.25 - 2.0 Amps | UL508 | $12.75 |
Ex9RD11.5A2.5 | 1410007 | 1.6 - 2.5 Amps | UL508 | $12.75 |
Ex9RD11.5A4 | 1410009 | 2.5 - 4.0 Amps | UL508 | $12.75 |
Ex9RD11.5A6 | 1410010 | 4.0 - 6.0 Amps | UL508 | $12.75 |
Ex9RD11.5A8 | 1410011 | 5.5 - 8.0 Amps | UL508 | $12.75 |
Ex9RD11.5A10 | 1410012 | 7.0 - 10.0 Amps | UL508 | $12.75 |
Ex9RD11.5A13 | 1410013 | 9.0 - 13.0 Amps | UL508 | $12.75 |
♦ Due to the wide product range we kindly recommend that you download the PDF document/product guide below and send us an E-mail with your selection of part numbers so we can accurately quote you pricing and delivery.
Document Download Page
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
