Lovato Miniature Circuit Breakers and Residual Current Devices
These devices are used to protect against short circuits and overloads of wiring installations and loads in panel boards, office buildings, stores, and similar applications. Their purpose is circuit protection, circuit isolation and load operation controls. They have instantaneous trip characteristics defined as follows:
· B-type: Instantaneous trip 3-5 times In For non-inductive or low inductive loads (heating resistors, generators, very long wire lines)· C-type: Instantaneous trip 5-10 times In For inductive loads (mixed loads, resistive and inductive with low inrush current))
· D-type: Instantaneous trip 10-14 times In For highly inductive loads (loads with high inrush and current such as motors).
Main features include:
· IEC rated current In: 1-63A
· Pole width: 17.5mm / 0.69 in.
· Contact status with flag indicator
· Trip characteristic: Curve type B, C and D
· Auxiliary contacts and trip releases mounted on MCB left side)
· Fixing on 35mm DIN rail (IEC/EN 60715).
Operational characteristics:
· Dissipation per pole: 3-13W
· IEC rated insulation voltage: 440V
· IEC rated impulse voltage: 4kV
· IEC rated operational voltage Ue: 230/440VAC.
Certifications and compliance:
Certifications obtained: TUV - Rheinland; UL Recognized for USA and Canada (cURus - File E359585) as Supplementary Protectors, designated as Overcurrent type, for general industrial use, suitable for factory wiring only with 125-135% tripping current of amp rating. Products having this type of marking are intended for use as components of complete workshop- assembled equipment. Compliant with standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA C22.2 n°235.
CURVE INFORMATION:· B (3-5 In): Protection for people and big length cables in TN and IT system.
· C (5-10 In): Protecting for resistive and inductive loads with low inrush current.
· D (10-14 In): Protecting for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers, breakdown lamps).
·D Curve is for industrial area, it is slowest.
Poles/Current | B Curve | C Curve | D Curve | Price |
---|---|---|---|---|
1P/1A | P1 MB 1P B01 | P1 MB 1P C01 | P1 MB 1P D01 | $9.75 |
1P/2A | P1 MB 1P B02 | P1 MB 1P C02 | P1 MB 1P D02 | $9.75 |
1P/3A | N/A | N/A | N/A | N/A |
1P/4A | P1 MB 1P B04 | P1 MB 1P C04 | P1 MB 1P D04 | $9.75 |
1P/6A | P1 MB 1P B06 | P1 MB 1P B06 | P1 MB 1P B06 | $9.75 |
1P/10A | P1 MB 1P B10 | P1 MB 1P C10 | P1 MB 1P D10 | $9.75 |
1P/16A | P1 MB 1P B16 | P1 MB 1P C16 | P1 MB 1P D16 | $9.75 |
1P/20A | P1 MB 1P B20 | P1 MB 1P C20 | P1 MB 1P D20 | $9.75 |
1P/25A | P1 MB 1P B25 | P1 MB 1P C25 | P1 MB 1P D25 | $9.75 |
1P/32A | P1 MB 1P B32 | P1 MB 1P C32 | P1 MB 1P D32 | $9.75 |
1P/40A | P1 MB 1P B32 | P1 MB 1P C32 | P1 MB 1P D32 | $9.75 |
1P/50A | P1 MB 1P B40 | P1 MB 1P C40 | P1 MB 1P D40 | $9.75 |
1P/63A | P1 MB 1P B63 | P1 MB 1P C63 | P1 MB 1P D63 | $9.75 |
Poles/Current | B Curve | C Curve | D Curve | Price |
---|---|---|---|---|
2P/1A | P1 MB 2P B01 | P1 MB 2P C01 | P1 MB 2P D01 | $17.85 |
2P/2A | P1 MB 2P B02 | P1 MB 2P C02 | P1 MB 2P D02 | $17.85 |
2P/3A | N/A | N/A | N/A | N/A |
2P/4A | P1 MB 2P B04 | P1 MB 2P C04 | P1 MB 2P D04 | $17.85 |
2P/6A | P1 MB 2P B06 | P1 MB 2P C06 | P1 MB 2P D06 | $17.85 |
2P/10A | P1 MB 2P B10 | P1 MB 2P C10 | P1 MB 2P D10 | $17.85 |
2P/16A | P1 MB 2P B16 | P1 MB 2P C16 | P1 MB 2P D16 | $17.85 |
2P/20A | P1 MB 2P B20 | P1 MB 2P C20 | P1 MB 2P D20 | $17.85 |
2P/25A | P1 MB 2P B25 | P1 MB 2P C25 | P1 MB 2P D25 | $17.85 |
2P/32A | P1 MB 2P B32 | P1 MB 2P C32 | P1 MB 2P D32 | $17.85 |
2P/40A | P1 MB 2P B40 | P1 MB 2P C40 | P1 MB 2P D40 | $17.85 |
2P/50A | P1 MB 2P B50 | P1 MB 2P C50 | P1 MB 2P D50 | $17.85 |
2P/63A | P1 MB 2P B63 | P1 MB 2P C63 | P1 MB 2P D63 | $17.85 |
Poles/Current | B Curve | C Curve | D Curve | Price |
---|---|---|---|---|
3P/1A | P1 MB 3P B01 | P1 MB 3P C01 | P1 MB 3P D01 | $19.75 |
3P/2A | P1 MB 3P B02 | P1 MB 3P C02 | P1 MB 3P D02 | $19.75 |
3P/3A | N/A | N/A | N/A | N/A |
3P/4A | P1 MB 3P B04 | P1 MB 3P C04 | P1 MB 3P D04 | $19.75 |
3P/6A | P1 MB 3P B06 | P1 MB 3P C06 | P1 MB 3P D06 | $19.75 |
3P/10A | P1 MB 3P B10 | P1 MB 3P C10 | P1 MB 3P D10 | $19.75 |
3P/16A | P1 MB 3P B16 | P1 MB 3P C16 | P1 MB 3P D16 | $19.75 |
3P/20A | P1 MB 3P B20 | P1 MB 3P C20 | P1 MB 3P D20 | $19.75 |
3P/25A | P1 MB 3P B25 | P1 MB 3P C25 | P1 MB 3P D25 | $19.75 |
3P/32A | P1 MB 3P B32 | P1 MB 3P C32 | P1 MB 3P D32 | $19.75 |
3P/40A | P1 MB 3P B40 | P1 MB 3P C40 | P1 MB 3P D40 | $19.75 |
3P/50A | P1 MB 3P B50 | P1 MB 3P C50 | P1 MB 3P D50 | $19.75 |
3P/63A | P1 MB 3P B63 | P1 MB 3P C63 | P1 MB 3P D63 | $19.75 |

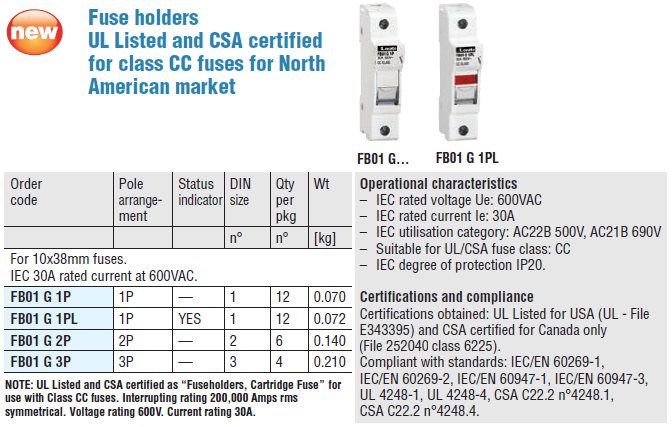

Lovato Fuse holders UL Listed and CSA certified for class CC fuses
AC FUSE HOLDERS CLASS CC FOR NORTH AMERICAN MARKET
MB1s Supplementary Protectors are ideal for providing protection in many applications, including: control power transformers, relays, contactor coils, PLC I/O points, power suppliesand other electronic equipment.Specifications:
· Modular size for 10x38, 14x51 and 22x58mm fuses
· 5000A Interrupt VAC, 10,000A Interrupt VDC
· Finger safe IEC IP20 degree of protection against accidental contact with live parts and with sealable cover
· Version with status indicator to quickly determine if the fuse is still operative or needs to be replaced
· UL and CSA certified versions
Part Number | Number of Poles | Status Indicator | Din Size | Qty./per pkg. | Price |
---|---|---|---|---|---|
FB01G1P | 1P | N/A | 1 | 12 | $5.75 |
FB01G1PL | 1P | YES | 1 | 12 | $16.75 |
FB01G2P | 2P | N/A | 2 | 6 | $14.75 |
FB01G3P | 3P | N/A | 3 | 4 | $28.75 |
♦ Due to the wide product range we kindly recommend that you download the PDF document/product guide below and send us an E-mail with your selection of part numbers so we can accurately quote you pricing and delivery.
Complete Product Catalog Download
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
