SCE General Purpose Type 1 Enclosures
Electrical Components
Application Specific Controls
SCE Nema-1 Enclosures
Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection. For installation information, consult Installation Manual at www.saginawcontrol.com.·0.048”, 0.060” & 0.075” carbon steel depending on its size.
· Spot weld construction.
· Standoffs provided for mounting optional sub-panels.
· Butt hinge.
· Doors open 180 degrees.
· Black quarter turn latches.
· Latches are opened or closed with a screwdriver.
· Ground stud on door and body.
· Mounting holes in back of enclosure.
· Sub-panel mounting hardware included.
· Mounting holes in back of enclosure.
Finish -
ANSI-61 gray powder coated inside and out. Optional sub-panels powder coated white.
IS8 - Industry Standards -
NEMA Type 1
UL Listed Type 1
CSA Type 1
IEC 60529 IP30

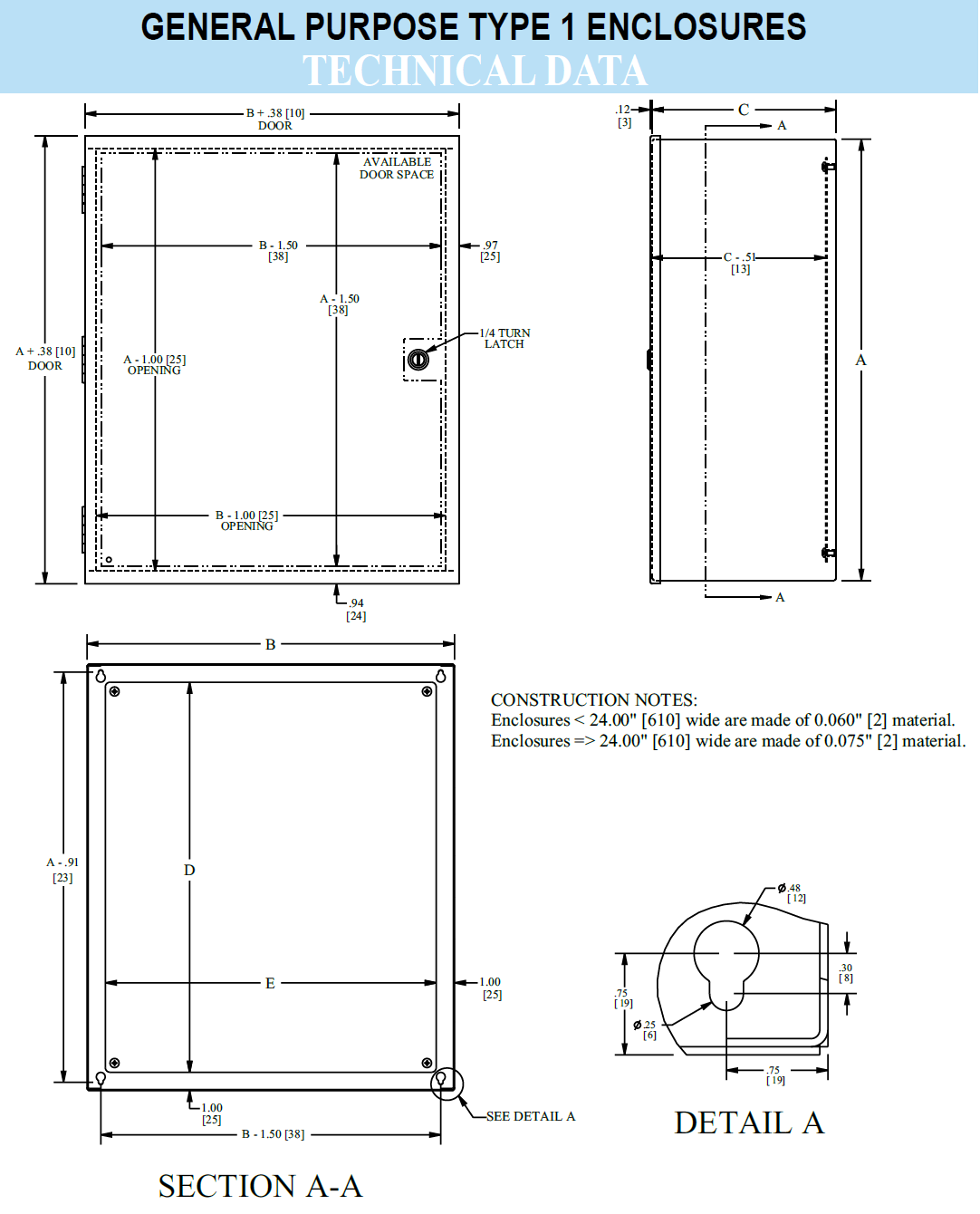

Enc. Cat. Number | Dimension (in.) (A) (B) (C) |
Price | Sub-Panel Cat. Number | imension (in.) (D) (E) |
Price |
---|---|---|---|---|---|
SCE-10N1006LP | 10.00 x 10.00 x 6.00 | $47.00 | SCE-10N10MP | 8.00 x 8.00 | $4.50 |
SCE-12N1206LP | 12.00 x 12.00 x 6.00 | $56.00 | SCE-12N12MP | 10.00 x 10.00 | $6.50 |
SCE-12N1208LP | 12.00 x 12.00 x 8.00 | $63.00 | SCE-12N12MP | 10.00 x 10.00 | $6.50 |
SCE-16N1608LP | 16.00 x 16.00 x 8.00 | $112.00 | SCE-16N16MP | 14.00 x 14.00 | $18.50 |
Download Complete SCE Catalog
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
