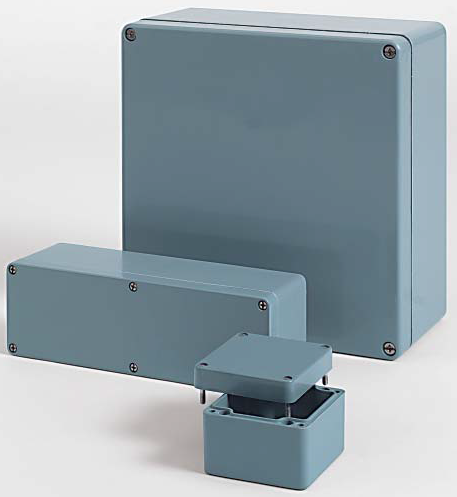

Fiberglass Watertight 02 Enclosures
Our fiberglass watertight enclosures are the enclosures to use when harsh environments are a problem. These enclosures are made of compression molded fiberglass, the best method for producing a strong, rugged enclosure which will withstand all conditions: weather, liquids, chemicals and harsh manufacturing environments. OPA’s fiberglass enclosures stand up to adverse weather conditions and most industrial chemicals with no deterioration over many years. They will also withstand the effects of ultra-violet rays. Our Fiberglass Watertight 02 enclosure consists of a compression molded lid and base, captive stainless steel lid screws, molded-in mounting inserts in base, polyurethane gasket. Silicone and RFI gaskets are available as an option. These Fiberglass Watertight 02 enclosures can be used for water pollution control devices, paper processing controls and ship and harbor beacon signal controls.Color: Gray is standard similar to RAL 7000.
Material: Fiberglass reinforced Polyester plastic.
Impact Resistance: >7Nm, EN50014.
Flammability: Self-extinguishing, UL 94 V0.
Protection Classifications: NEMA Types: up to Nema 4, 4X IP 66, EN 60529
Approvals: UL Listed File #E206630, UL 508
PART NUMBER: 020823080
PRICE: $98.00
DESCRIPTION: Enclosures : Fiberglass : L-12.60/320 in/mm, W-3.94/100 in/mm, H-3.19/81 in/mm Enclosure Only ; ideal for 22mm PBs. for use w/ NEMA controls ; 1 Unit .

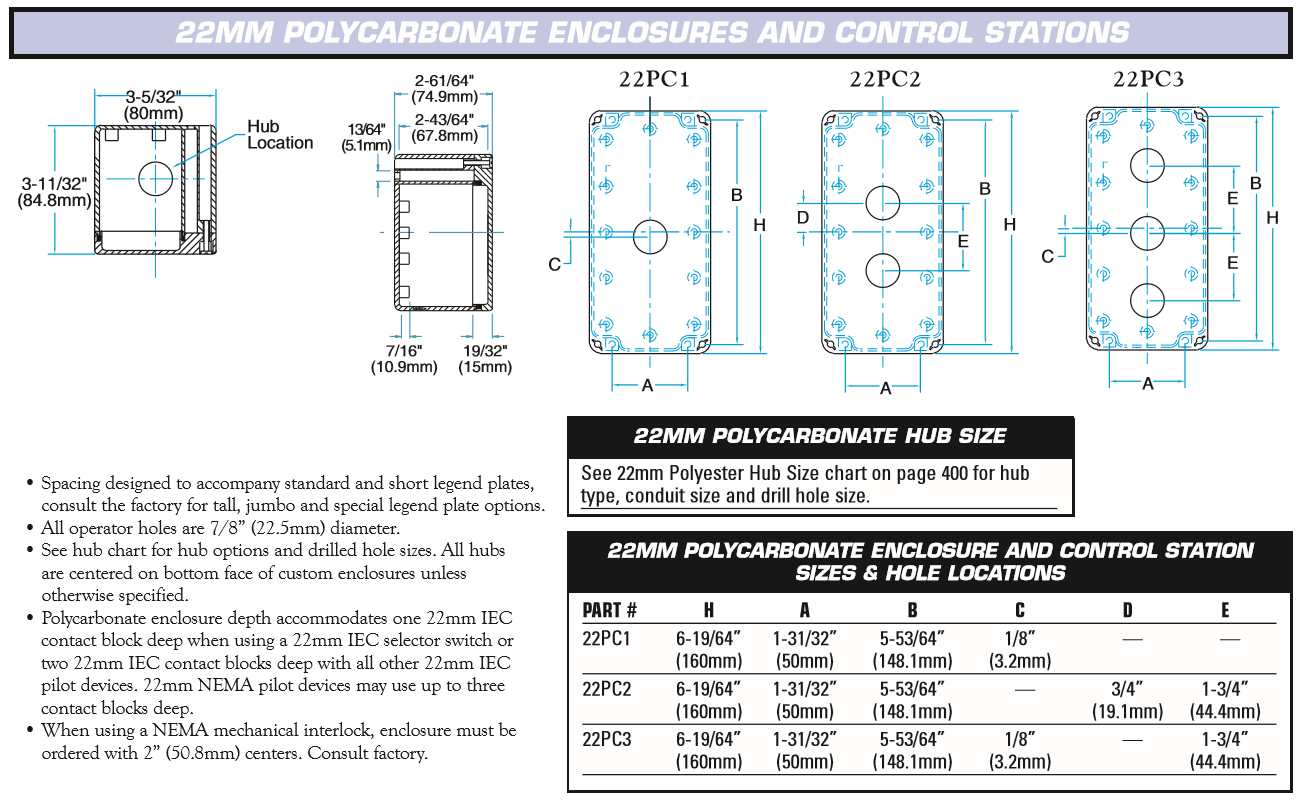

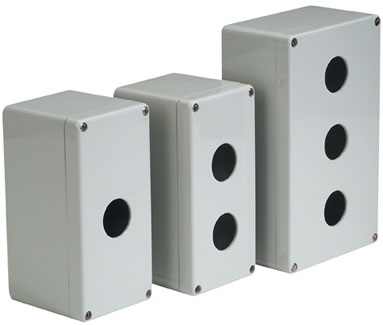

Watertight Polycarbonate Enclosure
Our Polycarbonate enclosure offers exceptional design possibilities in high quality plastic at low prices. A broad range of sizes covers a wide array of widths and depths. Ideal where high impact resistance or chemical corrosion must be addressed at a reasonable cost. Wall mounting holes are molded into each corner. These holes are outside the internal chamber to maintain the enclosures watertight integrity. The lid must be removed to utilize the wall mounting feature. This is a basic shoe box design made of injection-molded polycarbonate. Our enclosures are designed for use in the electro-mechanical and the electronics industry. They are good for small instruments and junction boxes. Typical applications are relay module enclosures, geophysical sensoring equipment and temperature control monitors. The Polycarbonate box comes with a solid color lid and base, captive stainless steel lid screws, molded-in lid screw inserts in the base and a neoprene gasket. Metric press-in brass inserts for internal mounting bosses are also available.Note: Design subject to change without notice. Consult factory for current price and dimensions.
PART NUMBER: 22PC1
PRICE: $55.00
DESCRIPTION: Enclosures : Polycarbonate : Enclosure Only ; 22mm (for use w/ NEMA controls) ; 1 Unit .
PART NUMBER: 22PC2
PRICE: $65.00
DESCRIPTION:Enclosures : Polycarbonate : Enclosure Only ; 22mm (for use w/ NEMA controls) ; 2 Units .
PART NUMBER: 22PC3
PRICE: $75.00
DESCRIPTION: Enclosures : Polycarbonate : Enclosure Only ; 22mm (for use w/ NEMA controls) ; 3 Units .
Watertight Diecast Aluminum Enclosure
Watertight diecast aluminum enclosures in the powdercoated version may be used for electronics, measurement and control, power distribution, as well as for pneumatic techniques and hydraulic applications. Each aluminum enclosure consists of a powdercoat painted die-cast base and lid, and captive stainless steel lid screws. 30mm and 22mm die cast enclosures are rated Type 1, 3R, 4, 12, IP66 and IP67.Disconnect die cast enclosures are rated Type 4/4X, IP66 and IP67.
Standard finish: Smooth powder coat grey .
Note: Design subject to change without notice. Consult factory for current price and dimensions.
PART NUMBER: 22DC1
PRICE: $85.00
DESCRIPTION: Enclosures : Die Cast : Enclosure Only ; 22mm (for use w/ NEMA controls) ; 1 Unit .
PART NUMBER: 22DC2
PRICE: $95.00
DESCRIPTION:Enclosures : Die Cast : Enclosure Only ; 22mm (for use w/ NEMA controls) ; 2 Units .
PART NUMBER: 22DC3
PRICE: $115.00
DESCRIPTION: Enclosures : Die Cast : Enclosure Only ; 22mm (for use w/ NEMA controls) ; 3 Units .
p align="center">

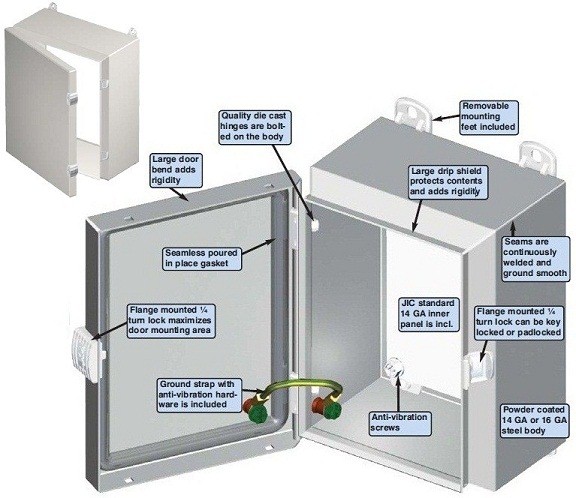

EXM NEMA 4-12 JIT Enclosures
The 5412 ESCHB are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. The 5412 ESCHB are made from quality 16 GA steel, with corner seems continuously welded.The opening has a curled lip around all sides to prevent dripping water from entering the enclosure when the door is open, it also increases rigidity. A high quality robotically poured-inplace seamless gasket ensures a complete and durable water tight seal.
The enclosures feature die cast hinges, which are bound to the cover by an exclusive concealed hinge pin system. The covers are interchangeable and can be removed by unfastening the antivibration lock nuts.
EXM's exclusive flange-mounted ¼ turn locking system ensures positive closing while leaving a full workable mounting surface on the door. Each enclosure comes complete with a 14 GA inner panel which mounts on weld nuts. The enclosure can be internally mounted or externalymounted using the included wall mounting feet. These feet have oblong holes to facilitate installation. Enclosures and panels are finished with heat fused polyester powder, electrostatically applied on a pretreaded base. Box is RAL7035 textured light gray, panel is white (other colors available).
CSA Certified / UL Listed
NEMA/EEMAC 4-12 / IP66
PART NUMBER: 5412 ESCHB040403
PRICE: $62.29
DESCRIPTION: JIC wall mount with backpanel. Size:04x04x03 in. (H*W*D).
PART NUMBER: 5412 ESCHB060404
PRICE: $71.85
DESCRIPTION: JIC wall mount with backpanel. Size: 06x04x04 in. (H*W*D).
PART NUMBER: 5412 ESCHB060604
PRICE: $75.86
DESCRIPTION: JIC wall mount with backpanel. Size: 06x06x04 in. (H*W*D).
PART NUMBER: 5412 ESCHB081004
PRICE: $94.81
DESCRIPTION: JIC wall mount with backpanel. Size: 08x10x04 in. (H*W*D).
PART NUMBER: 5412 ESCHB100804
PRICE: $96.29
DESCRIPTION: JIC wall mount with backpanel. Size: 10x08x04 in. (H*W*D).
PART NUMBER: 5412 ESCHB100806
PRICE: $98.50
DESCRIPTION: JIC wall mount with backpanel. Size: 10x08x06 in. (H*W*D).
PART NUMBER: 5412 ESCHB121005
PRICE: $118.50
DESCRIPTION: JIC wall mount with backpanel. Size: 12x10x05 in. (H*W*D).
PART NUMBER: 5412 ESCHB121008
PRICE: $128.50
DESCRIPTION: JIC wall mount with backpanel. Size: 12x10x08 in. (H*W*D).
PART NUMBER: 5412 ESCHB161410
PRICE: $177.50
DESCRIPTION: JIC wall mount with backpanel. Size: 16x14x10 in. (H*W*D).
PART NUMBER: 5412 ESCHBaAbBcC
PRICE:Please Call
DESCRIPTION: Other sizes are available so please call or send us an e-mail.

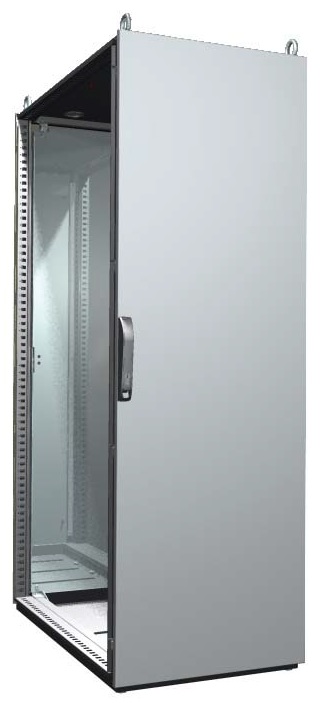

EXM NEMA 4-12 Free Standing Enclosures
The 9412 water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or to water coming from any direction or for protection against dust, dirt or oil splashing. The 9412 are made from quality code gauge steel, with corner seems continuously welded. The opening has a curled lip around all sides to prevent dripping water from entering the enclosure whenthe door is open, it also increases rigidity. A high quality robotically poured-in-place seamless gasket ensures a complete and durable water tight seal. The pins of the concealed hinges can be pulled out to remove the door. Quarter turn locking mechanisms on three sides of the door ensure positive closing. Optional back panels can be mounted at any depth, using the three sets of rails welded on the sides of the cabinet. Side panels can also be ordered separately. A print pocket is provided. Enclosures and panels are finished with heat fused polyester powder, electrostatically applied on a pretreaded base. Box is ANSI/ASA 61 gray, panel is white (other colors available).
CSA Certified / UL Listed
NEMA/EEMAC 4-12 / IP66
PRICE: $1698.50
DESCRIPTION: Free Standing with backpanel. Size: 72x24x18 in. (H*W*D).
PART NUMBER: 9412 723624
PRICE: $2398.50
DESCRIPTION: Free Standing with backpanel. Size: 72x36x24 in. (H*W*D).
PART NUMBER: 9412 902420
PRICE: $2698.50
DESCRIPTION: Free Standing with backpanel. Size: 90x24x20 in. (H*W*D).
PART NUMBER: 9412 903636
PRICE: $3307.50
DESCRIPTION: Free Standing with backpanel. Size: 90x36x36 in. (H*W*D).

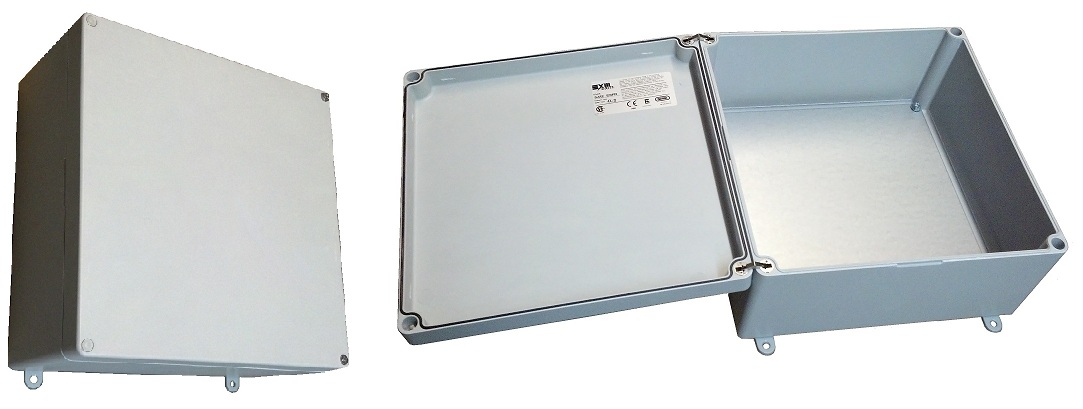

EXM NEMA 4X-12 Fiberglass Enclosures
EXM NEMA 4X enclosures are intended for use indoors or outdoors. They are constructed so as to provide a degree of protection against rain, snow, marine environment, toxic chemicals, windblown dust, splashing and hose directed water. They are undamaged by the external formation of ice on the enclosure. They are also corrosion resistant.
CSA Certified / UL Listed
NEMA/EEMAC 4-12 / IP66
PRICE: $78.50
DESCRIPTION: Hinged corrosion resistant fiberglass enclosures. Size: 8.5x8.5x4.125 in. (H*W*D).
PART NUMBER:5412 ESFRH121206
PRICE: $118.50
DESCRIPTION: Hinged corrosion resistant fiberglass enclosures. Size: 12.5x12.5x6.125 in. (H*W*D).
PART NUMBER:5412 ESFRH141206
PRICE: $120.50
DESCRIPTION: Hinged corrosion resistant fiberglass enclosures. Size: 14.5x12.5x6.125 in. (H*W*D).
PART NUMBER:5412 ESFRQ080804
PRICE: $99.50
DESCRIPTION: Quick release cover fiberglass enclosures. Size: 8.5x8.5x4.125 in. (H*W*D).
PART NUMBER:5412 ESFRQ121206
PRICE: $125.50
DESCRIPTION: Quick release cover fiberglass enclosures. Size: 12.5x12.5x6.125 in. (H*W*D).
PART NUMBER:5412 ESFRQ141206
PRICE: $129.50
DESCRIPTION: Quick release cover fiberglass enclosures. Size: 14.5x12.5x6.125 in. (H*W*D).

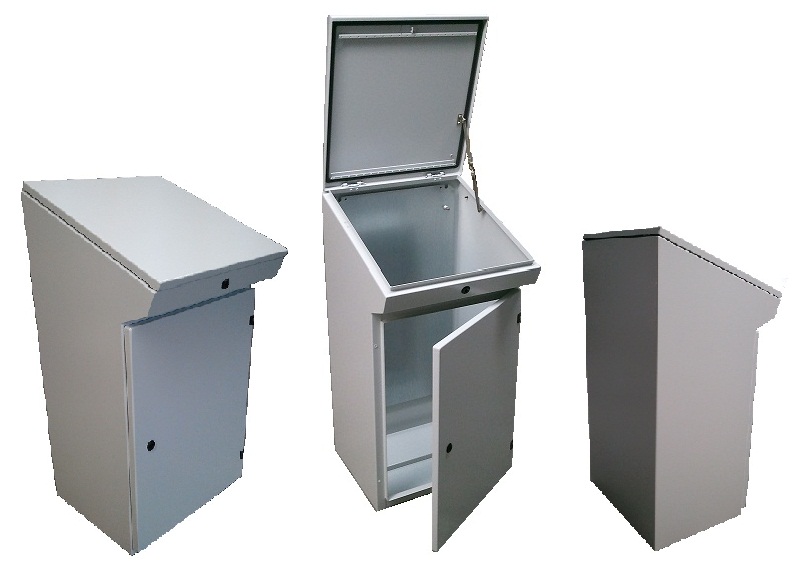

Haewa Console Enclosures
Ergonomically designed console assures optimum viewing and convenient operation of build-in elements like touch-screens and pushbuttons. Versatile designs out of mild steel or stainless steel open up vast applications.
NEMA/EEMAC 12 / IP559
PRICE: $595.50
DESCRIPTION: Console with backpanel. Size: 38.47x19.69x19.37 in. (H*W*D).
PART NUMBER: 0335-6010-49-17
PRICE: $632.50
DESCRIPTION: Console with backpanel. Size: 38.47x23.62x19.37 in. (H*W*D).
PART NUMBER: 0335-8010-49-17
PRICE: $727.00
DESCRIPTION: Console with backpanel. Size: 38.47x31.50x19.37 in. (H*W*D).

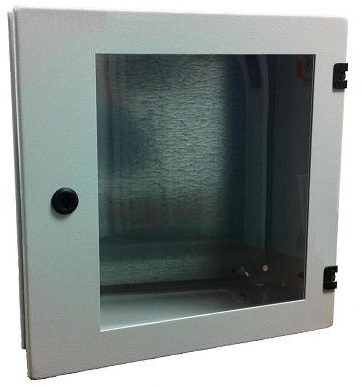

Haewa Window-Enclosures
SN type wall mount enclosures w/ window-doors powder coated (Epoxy-Polyester) RAL 7035, texture finish.
• UV-resistant Makrolon ®
• Maintains NEMA 4 rating
• Mounting Plate
PRICE: $395.50
DESCRIPTION: Window Door Enclosures with backpanel. Size: 24x24x8 in. (H*W*D).

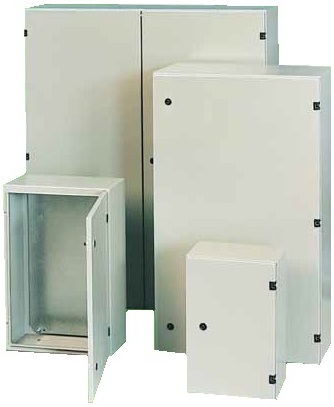

Haewa Single Door Wall Mount Enclosures
SN-Enclosures single door with cable entry plate 0331.
• Cable entry plate
• NEMA 4, 12, 13
• UNDERWRITERS LABORATORIES
• Mounting Plate
PRICE: $132.50
DESCRIPTION: Single Door Enclosures with backpanel. Size: 12x12x8 in. (H*W*D).
PART NUMBER: 0331-4040-20-17
PRICE: $167.00
DESCRIPTION: Single Door Enclosures with backpanel. Size: 16x16x8 in. (H*W*D).
PART NUMBER: 0331-6010-35-17
PRICE: $435.50
DESCRIPTION: Single Door Enclosures with backpanel. Size: 24x40x14 in. (H*W*D).
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
