3M™ MicroTouch™ Display C1500SS (15in.) USB with Contour Flange Bezel
3M™ Touch Systems Part Number 11-71315-225-03.Features and Benefits:
·Multiple bezel options for maximum design flexibility
·Mounting option flexibility including brackets and 75mm VESA pattern
·Remote OSD simplifying display adjustments
·Accepts 12V DC or 110/220V AC power
·Color match files available to synchronize display color with printed output
·Convection Cooled
PRICE: $725.00 [Some Prices Subject to change. Please call or send us an E-Mail]
DESCRIPTION:
Stock Number: 98000328546
UPC: 0-51119-95704-4
LCD Technology: TFT, Active Matrix
Display Colors: 16.2 million
Pixel Pitch: .297 mm
Contrast Ration: 500:1
Video Response Time: 12 ms typical
Maximum Resolution: 1024 x 768
Physical Dimensions, Enclosure (WxHxD): 350.4 x 277.3 x 50mm, 13.80x 10.92 x 1.96 inches
Display Area (WxH): 304.1 x 228.1mm, 11.9 x 8.9 inches
Video Cable Connector: 15-pin D-sub
Power Supply: Internal 12V DC Power Supply. Also accepts 110/220V AC.
Weight (Net): 4.2kg/9.2 lbs
Agency Approvals: FCC B, CE, UL, cUL
Mounting Options: Brackets (2), 75mm VESA pattern
Warranty: 3 years
C1500SS Industrial Bezel
3M™ Touch Systems Part Number 29368Features and Benefits:
·Multiple bezel options for maximum design flexibility
·Mounting option flexibility including brackets and 75mm VESA pattern
·Remote OSD simplifying display adjustments
·Accepts 12V DC or 110/220V AC power
·Color match files available to synchronize display color with printed output
·Convection Cooled
PRICE: $125.00 [Some Prices Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Industrial flanged bezel for C1500SS.
Stock Number: 98000321681
UPC: 0-51119-95300-8

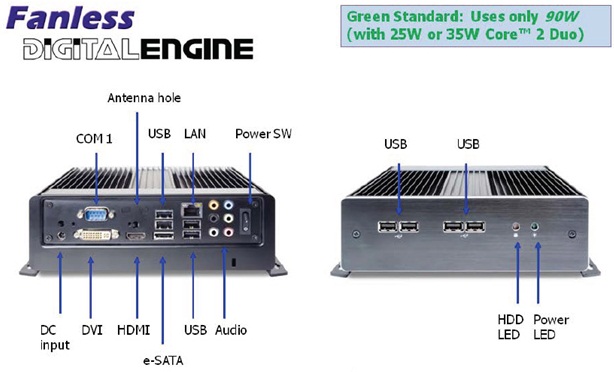

PM Industrial Computer
Features:· Housing Material: SECC / Aluminum
· Housing Color: Black
· Dimension: 200(W) x 60(H) x 200(D)mm
· 7.87(W) x 2.36(H) x 7.87(D)inch
· Volume: 2.40L
· Weight(Kg/Pound) : 2.85kg / 6.27 pound (N.W.)
· CPU: Socket P
· Support Intel Core 2 Duo CPU
· FSB 667/800/1066MHz
· Note : CPU Power Consumption less than 35 Watts
· Chipset: Intel GM45+ICH9M Chipset
· Memory: Dual Channel Mode
· 200-pin DDRII SO-DIMM x 2 · DDRII 667/800
· Max memory size : 4GB*
· Graphics: Integrated VGA Engine in GM45 chipset (Intel GMA X4500MHD)
· HDMI Port x 1, DVI Port x 1, D-Sub VGA Port x 1 (via DVI to D-Sub Converter)
· Expansion Slot: mini Card Slot x 2
· Audio: Realtek ALC888 HD Audio CODEC on-board
· 7.1 Channel
· LAN: Integrated Intel Gigabit LAN Controller
· USB: Integrated in chipset
· USB 2.0 Port x 8 (4 Rear, 4 Front)
· Chassis: 2.5 in. SATA II HDD Bay x 1
· Front Panel IO: HDD indicator (Orange) x 1
· Power indicator (Green) x 1
· USB 2.0 Port x 4
· Rear Panel IO: DC 20V Jack x 1
· Power Buttom x 1
· DVI-i Port x 1
· HDMI Port x 1
· RJ45 LAN Jack x 1
· USB 2.0 Port x 4
· RS232 Serial Port x 1
· eSATA Port x 1
· 7.1 channel Audio I/O Ports x 1
· Security: Kensington Lock Hole x 1
· CPU Thermal: AOpen Proprietary Fan Less Thermal Solution
· WatchDog Timer: 1 ~ 255 sec/min
· Adapter: 90W (20V, 4.5A) AC Adapter
· Input Voltage: AC 100 ~ 240V
· Environment: MTBF : 40,000 hrs
· Operating Temperature : -5 ~ 40 C (23 ~ 104 F)
· Relative Humidity : 90% RH (40 C non-condensing)
· Operating Vibration : 0.4 Grms, Random, 10~500Hz, X,Y,Z 3Axes, 0.5hr/Axis
· Operating Shock : 8G, half sine, 11ms duration, X,Y,Z 3Axes, 6Direction, 3 shocks/direction
· Accessory: 90W Power Adapter (20V) x 1
· Power Cord x 1
· DVI to D-Sub Adapter x 1
· Power Clamp x 2
· Screw Bag M3*L5 (4pcs) x 1 (for 2.5 in. HDD)
· Utilities and Drivers CD x 1
· Assembly Guide x 1
· Certification: CE, FCC, UL, CB
· Support OS: Windows XP, Windows 7, Windows Embedded
PRICE: $825.00 [Starting Price. Please call or send us an E-Mail]
DESCRIPTION:Panel Mount Industrial PC
Operating System not included.
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
