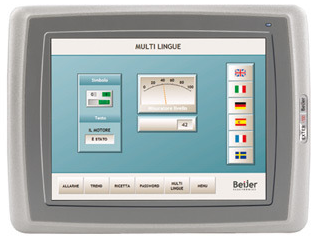

Beijer Electronics Exter T100
The EXTER operator panel is developed to satisfy the demands of human-machine communication. Built-in functions such as displaying and controlling text, dynamicFeatures and Benefits:
·Manufacturer: Beijers Electronics
·Display type: TFT-LCD CCFL backlight lifetime at the ambient temperature of +25 °C
·Presentation form: Graphics + Text
·Display size: 800 x 600 pixels, high-resolution 10.4 "
·Memory: 64 MB
·Power supply: +24 V DC (20 - 30 V DC). 3-pin jack connection block
·Enclosure: IP66 Classified
·Dimensions W x H x D: 302 x 228 x 6 mm
·Expansion card locations: 2
·Communication port: RS422/485, RS232, Ethernet 10/100 Mbit/s. Shielded RJ 45, USB, CF-Slot, and Field Bus Expansion Module
PART NUMBER: EXTER T100
PRICE: $ ??? [Model Obsolete. Please call or send us an E-Mail for availability]
DESCRIPTION:
Description: Aluminum frame and casing in appealing design, powder-coated in steel-gray color, provides protection and gives a timeless look. The 4-color foil print further enhances the sense of depth in the operator panel. The front enclosure is IP66 classified, which means that it is waterproof even when exposed to high pressure washing. The operator panel is configured with the user-friendly software tool Information Designer.
iX Series
The open technology of iX automation software takes advantages of .NET controls, C# scripting and WPF objects giving you more options than ever. iX offers enhanced connectivity with simple real-time exchange of data between controllers as well as SQL and OPC UA client / server communications.iX Panel T4A
Graphic touch aluminum operator terminal. 480x272 pixels, LED backlit 4.3" TFT-LCD color display, 350 cd/m2, ARM9 400 MHz CPU, 1x Ethernet, 2x4 serial ports, 1x USB 2.0, 1x SD card slot, optional CAN module. Power supply 24 VDC. Does NOT include Web browser, PDF viewer and Windows Media Player support. -10 to 60 C operating temperature. IP65. Includes iX Runtime. CE and UL certified. Beijer-branded.General Description
·Article number: T4A·HMI development software: iX Developer 1.31 or above
·Presentation form: Graphics + Text
System Info
·RAM: 128MB·CPU: 400MHz ARM9
·Application storage: 80 MB
Display
·Type: TFT-LCD·Size: 4,3 " 480 x 272 pixels
·Backlight: LED backlight
·Backlight lifetime: 50000 h
·Brightness: 350 cd/m2
Interaction
·External control: USB·Front LED Red/ Blue: software programmable
·Touch screen type: Resistive touch
Power
·Power consumption at rated voltage: 3,6 W·Voltage: +24 V DC (18-32 V DC)
·Fuse Internal: DC fuse, 2.0 AT, 5 x 20mm
Mechanical
·Size: 145 x 103 x 43 mm·Weight: 0,5 Kg
·Housing material: Powder-coated aluminum
Serial Communication
·Com 1: RS232 (RTS/CTS)·Com 2: RS422/ RS485
·Com 3: RS232
·Com 4: RS422 (RTS)/ RS485
Ethernet
·Ethernet 1: 1 x 10/100 Mbit/s (shielded RJ 45)·Ethernet 2: N/A
Expansion
·USB: 1xUSB Host 2.0, max output current 200mA·Memory expansion: 1xSD card
·iX Field buss expansion: yes
Certifications
·UL: UL 508.·CE: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.
Environmental
·Humidity: <85% non-condensed·Operating temperature: -10 ° to +60° C
·Storage temperature: -20° to +70° C
·Sealing - front panel: IP 65
PART NUMBER: 630000102
PRICE: $480.00 [Prices Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Description: iX Panel T4A is a 4.3 " graphic touch HMI with iX software.

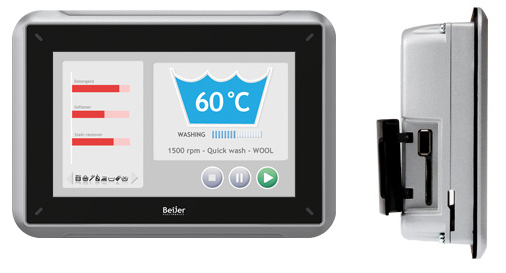

iX Panel T7A
Graphic touch aluminum operator terminal. 800x480 pixels, LED backlit 7" TFT-LCD color display, 350 cd/m2, ARM9 400 MHz CPU, 1x Ethernet, 2x4 serial ports, 1x USB 2.0, 1x SD card slot, optional CAN module. Power supply 24 VDC. Does NOT include Web browser, PDF viewer and Windows Media Player support. -10 to 60 C operating temperature. IP65. Includes iX Runtime. CE, UL and DNV certified. Beijer-branded.General Description
·Article number: T7A·HMI development software: iX Developer 1.31 or above
·Presentation form: Graphics + Text
System Info
·RAM: 128MB·CPU: 400MHz ARM9
·Application storage: 80 MB
Display
·Type: TFT-LCD·Size: 7" 800 x 480 pixels
·Backlight: LED backlight
·Backlight lifetime: 20000 h
·Brightness: 450 cd/m2
Interaction
·External control: 1 x USB 2.0 full-speed, 200 mA max·Front LED Red/ Blue: software programmable
·Touch screen type: Resistive touch
Power
·Power consumption at rated voltage: 6 W·Voltage: +24 V DC (18-32 V DC)
·Fuse Internal: DC fuse, 2.0 AT, 5 x 20mm
Mechanical
·Size: 204 x 143 x 43 mm·Weight: 0,8 Kg
·Housing material: Powder-coated aluminum
Serial Communication
·Com 1: RS232 (RTS/CTS)·Com 2: RS422/ RS485
·Com 3: RS232
·Com 4: RS422 (RTS)/ RS485
Ethernet
·Ethernet 1: 1 x 10/100 Mbit/s (shielded RJ 45)·Ethernet 2: N/A
Expansion
·USB: 1xUSB Host 2.0, max output current 200mA·Memory expansion: 1xSD card
·iX Field buss expansion: yes
Certifications
·UL: UL 508.·CE: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.
Environmental
·Humidity: <85% non-condensed·Operating temperature: -10 ° to +60° C
·Storage temperature: -20° to +70° C
·Sealing - front panel: IP 65
PART NUMBER: 630000202
PRICE: $840.00 [Prrice Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Description: iX Panel T7A is a 7 " graphic touch HMI with iX software.
PART NUMBER: 630002502
PRICE: $990.00 [Prices Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Description: iX Panel T7AM is a Marine-certified graphic touch aluminum operator terminal. 800x480 pixels, bright LED backlit 7" TFT-LCD color, 500 cd/m2, 0-100% dimmable display, ARM9 400 MHz CPU, 1x Ethernet, 2x4 serial ports, 1x USB 2.0, 1x SD card slot. Power supply 24 VDC. Does NOT include Web browser, PDF viewer and Windows Media Player support. -10 to 60 C operating temperature. IP65. Includes iX Runtime. CE & UL, DNV, ABS, GL, LR, BV marine approvals (RS and KR pending). Black, non-branded front bezel.
PART NUMBER: 630003102
PRICE: $1090.00 [Prices Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Description: iX Panel T7AM-CAN is a Marine-certified graphic touch aluminum operator terminal. 800x480 pixels, bright LED backlit 7" TFT-LCD color, 500 cd/m2, 0-100% dimmable display, ARM9 400 MHz CPU, 1x Ethernet, 2x4 serial ports, 1x USB 2.0, 1x SD card slot, 2-port CAN module. Power supply 24 VDC. Does NOT include Web browser, PDF viewer and Windows Media Player support. -10 to 60 C operating temperature. IP65. Includes iX Runtime. CE & UL, DNV, ABS, GL, LR, BV marine approvals (RS and KR pending). Black, non-branded front bezel.

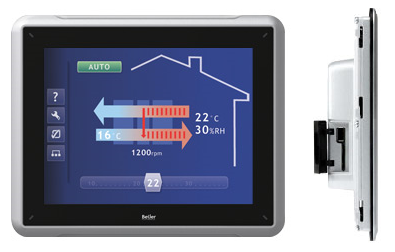

iX Panel T10A
Graphic touch aluminum operator terminal. 640x480 pixels, LED backlit 10.4" TFT-LCD color display, 450 cd/m2, ARM9 400 MHz CPU, 1x Ethernet, 2x4 serial ports, 1x USB 2.0, 1x SD card slot, optional CAN module. Power supply 24 VDC. Does NOT include Web browser, PDF viewer and Windows Media Player support. -10 to 60 C operating temperature. IP65. Includes iX Runtime. CE and UL certified. Beijer-branded.General Description
·Article number: T10A·HMI development software: iX Developer 1.31 or above
·Presentation form: Graphics + Text
System Info
·RAM: 128MB·CPU: 400MHz ARM9
·Application storage: 80 MB
Soft Control
·Persistent retain memory: 16 Kbyte·SoftControl development software: CODESYS 3.5
·Remote I/O bus: Modbus RTU
Display
·Type: TFT-LCD·Size: 10" 640 x 480 pixels
·Backlight: LED backlight
·Backlight lifetime: 50000 h
·Brightness: 450 cd/m2
Interaction
·External control: USB·Front LED Red/ Blue: software programmable
·Touch screen type: Resistive touch
Power
·Power consumption at rated voltage: 9,6 W·Voltage: +24 V DC (18-32 V DC)
·Fuse Internal: DC fuse, 2.0 AT, 5 x 20mm
Mechanical
·Size: 280 x 228 x 44 mm·Weight: 1,5 Kg
·Housing material: Powder-coated aluminum
Serial Communication
·Com 1: RS232 (RTS/CTS)·Com 2: RS422/ RS485
·Com 3: RS232
·Com 4: RS422 (RTS)/ RS485
Ethernet
·Ethernet 1: 1 x 10/100 Mbit/s (shielded RJ 45)·Ethernet 2: N/A
Expansion
·USB: 1xUSB Host 2.0, max output current 200mA·Memory expansion: 1xSD card
·iX Field buss expansion: yes
Certifications
·UL: UL 508.·CE: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.
Environmental
·Humidity: <85% non-condensed·Operating temperature: -10 ° to +60° C
·Storage temperature: -20° to +70° C
·Sealing - front panel: IP 65
PART NUMBER: 630000302
PRICE: $1320.00 [Price Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Description: iX Panel T10A is a 10.4 " graphic touch HMI with iX software.

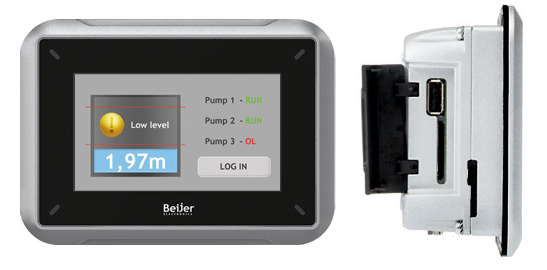

iX T4A SoftControl
T4A with iX with 480x272 pixels LED backlit 4.3" TFT-LCD color display, includes Windows Embedded CE RTOS, ARM9 400Mhz CPU, 80 MB application memory shared between iX and CoDeSys, 16 Kbyte non-volatile memory for retain data, Ethernet interface as programming port, recommend Modbus I/O driver, execution performance examples:-- 16000 BOOL logical instructions = 0.73 ms
-- 8000 INT (16 bits) calculations = 0.47 ms
-- 5000 REAL (32 bits) calculations = 2.3 ms
Suitable for 0-100 I/O points, Ethernet interface as programming port. Requires CoDeSys IEC 61131-3 Development System V3.5 SP1 or later (free download).
General Description
·Article number: 630001702·HMI development software: iX Developer 1.31 or above
·Presentation form: Graphics + Text
System Info
·RAM: 128MB·CPU: 400MHz ARM9
·Application storage: 80 MB
Soft Control
·Persistent retain memory: 16 Kbyte·SoftControl development software: CODESYS 3.5
·Remote I/O bus: Modbus RTU
Display
·Type: TFT-LCD·Size: 4,3 " 480 x 272 pixels
·Backlight: LED backlight
·Backlight lifetime: 50000 h
·Brightness: 350 cd/m2
Interaction
·External control: USB·Front LED Red/ Blue: software programmable
·Touch screen type: Resistive touch
Power
·Power consumption at rated voltage: 3,6 W·Voltage: +24 V DC (18-32 V DC)
·Fuse Internal: DC fuse, 2.0 AT, 5 x 20mm
Mechanical
·Size: 145 x 103 x 43 mm·Weight: 0,5 Kg
·Housing material: Powder-coated aluminum
Serial Communication
·Com 1: RS232 (RTS/CTS)·Com 2: RS422/ RS485
·Com 3: RS232
·Com 4: RS422 (RTS)/ RS485
Ethernet
·Ethernet 1: 1 x 10/100 Mbit/s (shielded RJ 45)·Ethernet 2: N/A
Expansion
·USB: 1xUSB Host 2.0, max output current 200mA·Memory expansion: 1xSD card
·iX Field buss expansion: yes
Certifications
·UL: UL508 *pending·DNV: DNV EMC class A
·CE: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.
Environmental
·Humidity: <85% non-condensed·Operating temperature: -10 ° to +60° C
·Storage temperature: -20° to +70° C
·Sealing - front panel: IP 65
PART NUMBER: 630001702
PRICE: $600.00 [Prices Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Description: iX T4A SoftControl is a 4.3 " graphic touch HMI with iX and CODESYS software. Communication with I/Os via serial Modbus RTU.
iX T7A SoftControl
T7A with iX with 800x480 pixels LED backlit 7" TFT-LCD color display, includes Windows Embedded CE RTOS, ARM9 400Mhz CPU, 80 MB application memory shared between iX and CoDeSys, 16 Kbyte non-volatile memory for retain data, Ethernet interface as programming port, recommend Modbus I/O driver, execution performance examples:-- 16000 BOOL logical instructions = 0.73 ms
-- 8000 INT (16 bits) calculations = 0.47 ms
-- 5000 REAL (32 bits) calculations = 2.3 ms
Suitable for 0-100 I/O points, Ethernet interface as programming port. Requires CoDeSys IEC 61131-3 Development System V3.5 SP1 or later (free download).
General Description
·Article number: 630001802·HMI development software: iX Developer 1.31 or above
·Presentation form: Graphics + Text
System Info
·RAM: 128MB·CPU: 400MHz ARM9
·Application storage: 80 MB
Soft Control
·Persistent retain memory: 16 Kbyte·SoftControl development software: CODESYS 3.5
·Remote I/O bus: Modbus RTU
Display
·Type: TFT-LCD·Size: 7" 800 x 480 pixels
·Backlight: LED backlight
·Backlight lifetime: 20000 h
·Brightness: 350 cd/m2
Interaction
·External control: USB·Front LED Red/ Blue: software programmable
·Touch screen type: Resistive touch
Power
·Power consumption at rated voltage: 6 W·Voltage: +24 V DC (18-32 V DC)
·Fuse Internal: DC fuse, 2.0 AT, 5 x 20mm
Mechanical
·Size: 204 x 143 x 43 mm·Weight: 0,8 Kg
·Housing material: Powder-coated aluminum
Serial Communication
·Com 1: RS232 (RTS/CTS)·Com 2: RS422/ RS485
·Com 3: RS232
·Com 4: RS422 (RTS)/ RS485
Ethernet
·Ethernet 1: 1 x 10/100 Mbit/s (shielded RJ 45)·Ethernet 2: N/A
Expansion
·USB: 1xUSB Host 2.0, max output current 200mA·Memory expansion: 1xSD card
·iX Field buss expansion: yes
Certifications
·UL: UL508 *pending·DNV: DNV EMC class A
·CE: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.
Environmental
·Humidity: <85% non-condensed·Operating temperature: -10 ° to +60° C
·Storage temperature: -20° to +70° C
·Sealing - front panel: IP 65
PART NUMBER: 630001802
PRICE: $980.00 [Prices Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Description: iX T7A SoftControl is a 7 " graphic touch HMI with iX and CODESYS software. Communication with I/Os via serial Modbus RTU.
iX T10A SoftControl
T10A with iX with 640x480 pixels LED backlit 10.4" TFT-LCD color display, includes Windows Embedded CE RTOS, ARM9 400Mhz CPU, 80 MB application memory shared between iX and CoDeSys, 16 Kbyte non-volatile memory for retain data, Ethernet interface as programming port, recommend Modbus I/O driver, execution performance examples:-- 16000 BOOL logical instructions = 0.73 ms
-- 8000 INT (16 bits) calculations = 0.47 ms
-- 5000 REAL (32 bits) calculations = 2.3 ms
Suitable for 0-100 I/O points, Ethernet interface as programming port. Requires CoDeSys IEC 61131-3 Development System V3.5 SP1 or later (free download).
General Description
·Article number: 630001902·HMI development software: iX Developer 1.31 or above
·Presentation form: Graphics + Text
System Info
·RAM: 128MB·CPU: 400MHz ARM9
·Application storage: 80 MB
Soft Control
·Persistent retain memory: 16 Kbyte·SoftControl development software: CODESYS 3.5
·Remote I/O bus: Modbus RTU
Display
·Type: TFT-LCD·Size: 10" 640 x 480 pixels
·Backlight: LED backlight
·Backlight lifetime: 50000 h
·Brightness: 450 cd/m2
Interaction
·External control: USB·Front LED Red/ Blue: software programmable
·Touch screen type: Resistive touch
Power
·Power consumption at rated voltage: 9,6 W·Voltage: +24 V DC (18-32 V DC)
·Fuse Internal: DC fuse, 2.0 AT, 5 x 20mm
Mechanical
·Size: 280 x 228 x 44 mm·Weight: 1,5 Kg
·Housing material: Powder-coated aluminum
Serial Communication
·Com 1: RS232 (RTS/CTS)·Com 2: RS422/ RS485
·Com 3: RS232
·Com 4: RS422 (RTS)/ RS485
Ethernet
·Ethernet 1: 1 x 10/100 Mbit/s (shielded RJ 45)·Ethernet 2: N/A
Expansion
·USB: 1xUSB Host 2.0, max output current 200mA·Memory expansion: 1xSD card
·iX Field buss expansion: yes
Certifications
·UL: UL508 *pending·DNV: DNV EMC class A *pending
·CE: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.
Environmental
·Humidity: <85% non-condensed·Operating temperature: -10 ° to +60° C
·Storage temperature: -20° to +70° C
·Sealing - front panel: IP 65
PART NUMBER: 630001902
PRICE: $1,560.00 [Prices Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Description: iX T10A SoftControl is a 10.4 " graphic touch HMI with iX and CODESYS software. Communication with I/Os via serial Modbus RTU.

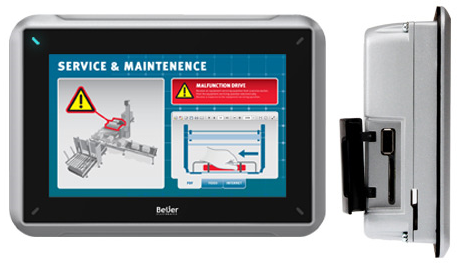

iX T7B SoftControl
7 " graphic touch HMI with iX and CODESYS software. T7B with iX with 800x480 pixels LED backlit 7" TFT-LCD color display, includes Windows CE RTOS, Intel Atom 1.1 GHz CPU, 1 GB application memory Shared between iX and CODESYS, 32 Kbyte non-volatile memory for persistent data, Ethernet interface as programming port, programmable with CODESYS Ver.3, recommended Modbus/TCP I/O driver (Modbus Serial also available) and EtherCAT, execution performance examples:-- 16,000 BOOL logical instructions = 0.19 ms
-- 8,000 INT (16 bits) calculations = 0.21 ms
-- 5,000 REAL (32 bits) calculations = 0.07 ms
30 PID Loops REAL calculations = 0.21 ms Suitable for 0-1000 I/O points. Requires CoDeSys IEC 61131-3 Development System V3.5 SP1 or later (free download).
General Description
·Article number: 640002001·HMI development software: iX Developer 2.0 or above
·Presentation form: Graphics + Text
System Info
·RAM: 1 GB·CPU: Intel Atom
·Application storage: 1.4 GB
Soft Control
·Persistent retain memory: 32 Kbyte·SoftControl development software: CODESYS 3.5
·Remote I/O bus: EtherCAT, Modbus RTU, Modbus TCP
Display
·Type: TFT-LCD·Size: 7" 800 x 480 pixels
·Backlight: LED backlight
·Backlight lifetime: 50000 h
·Brightness: 500 cd/m2
Interaction
·External control: USB·Front LED Red/ Blue: software programmable
·Touch screen type: Resistive touch
Power
·Power consumption at rated voltage: 14 W·Voltage: +24 V DC (18-32 V DC)
·Fuse Internal: Internal DC fuse, 3.15A slow
Mechanical
·Size: 204 x 143 x 50 mm·Weight: 0,9 Kg
·Housing material: Powder-coated aluminum
Serial Communication
·Com 1: RS232 (RTS/CTS)·Com 2: RS422/ RS485
·Com 3: RS232
·Com 4: RS422 (RTS)/ RS485
Ethernet
·Ethernet 1: 1 x 10/100 Mbit/s (shielded RJ 45)·Ethernet 2: 1 x 10/100/1000 Mbit/s (shielded RJ 45)
Expansion
·USB: 3x USB Host 2.0, max output current 500mA·Memory expansion: 1xSD card
·iX Field buss expansion: yes
Certifications
·UL: UL508·DNV: N/A
·CE: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.
Environmental
·Humidity: 5%-85% non-condensed·Operating temperature: -10 ° to +60° C
·Storage temperature: -20° to +70° C
·Sealing - front panel: IP 65
PART NUMBER: 640002001
PRICE: $1,875.00 [Prices Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Description: iX T7B SoftControl is a 7 " graphic touch HMI with iX and CODESYS software. Communication with I/Os via serial Modbus, Modbus TCP and RTU EtherCAT.
iX T12B SoftControl
T12B with iX with 1280x800 pixels, LED backlit 12.1" TFT-LCD color display, includes Windows CE RTOS, Intel Atom 1.1 GHz CPU, 1 GB application memory Shared between iX and CODESYS, 32 Kbyte non-volatile memory for persistent data, Ethernet interface as programming port, programmable with CODESYS Ver.3, recommended Modbus/TCP I/O driver (Modbus Serial also available) and EtherCAT, execution performance examples:-- 16,000 BOOL logical instructions = 0.19 ms. Requires CoDeSys IEC 61131-3 Development System V3.5 SP1 or later (free download).
-- 8,000 INT (16 bits) calculations = 0.21 ms
-- 5,000 REAL (32 bits) calculations = 0.07 ms
30 PID Loops REAL calculations = 0.21 ms
Suitable for 0-1000 I/O points. Requires CoDeSys IEC 61131-3 Development System V3.5 SP1 or later (free download).
General Description
·Article number: 640002201·HMI development software: iX Developer 2.0 or above
·Presentation form: Graphics + Text
System Info
·RAM: 1 GB·CPU: Intel Atom
·Application storage: 1.4 GB
Soft Control
·Persistent retain memory: 32 Kbyte·SoftControl development software: CODESYS 3.5
·Remote I/O bus: EtherCAT, Modbus RTU, Modbus TCP
Display
·Type: TFT-LCD·Size: 12" 1280 X 800 pixels
·Backlight: LED backlight
·Backlight lifetime: 50000 h
·Brightness: 400 cd/m2
Interaction
·External control: USB·Front LED Red/ Blue: software programmable
·Touch screen type: Resistive touch
Power
·Power consumption at rated voltage: 22 W·Voltage: +24 V DC (18-32 V DC)
·Fuse Internal: Internal DC fuse, 3.15A slow
Mechanical
·Size: 340 x 242,2 x 79mm·Weight: 2,5 Kg
·Housing material: Powder-coated aluminum
Serial Communication
·Com 1: RS232 (RTS/CTS)·Com 2: RS422/ RS485
·Com 3: RS232
·Com 4: RS422 (RTS)/ RS485
Ethernet
·Ethernet 1: 1 x 10/100 Mbit/s (shielded RJ 45)·Ethernet 2: 1 x 10/100/1000 Mbit/s (shielded RJ 45)
Expansion
·USB: 3x USB Host 2.0, max output current 500mA·Memory expansion: 1xSD card
·iX Field buss expansion: yes
Certifications
·UL: UL508·DNV: N/A
·CE: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.
Environmental
·Humidity: 5%-85% non-condensed·Operating temperature: -10 ° to +60° C
·Storage temperature: -20° to +70° C
·Sealing - front panel: IP 65
PART NUMBER: 640002201
PRICE: $2,750.00 [Prices Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Description: iX T12B SoftControl is a 12.1 " graphic touch HMI with iX and CODESYS software. Communication with I/Os via serial Modbus, Modbus TCP and RTU EtherCAT.

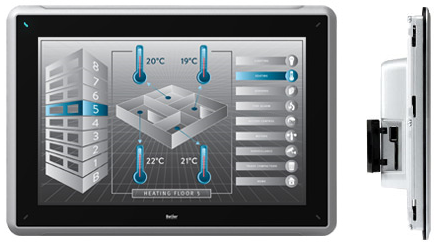

iX T15B SoftControl
T15B with iX with 1280x800 pixels, LED backlit 15" TFT-LCD color display, includes Windows CE RTOS, Intel Atom 1.1 GHz CPU, 1 GB application memory Shared between iX and CODESYS, 32 Kbyte non-volatile memory for persistent data, Ethernet interface as programming port, programmable with CODESYS Ver.3, recommended Modbus/TCP I/O driver (Modbus Serial also available) and EtherCAT, execution performance examples:-- 16,000 BOOL logical instructions = 0.19 ms
-- 8,000 INT (16 bits) calculations = 0.21 ms
-- 5,000 REAL (32 bits) calculations = 0.07 ms
30 PID Loops REAL calculations = 0.21 ms
Suitable for 0-1000 I/O points. Requires CoDeSys IEC 61131-3 Development System V3.5 SP1 or later (free download).
General Description
·Article number: 640002401·HMI development software: iX Developer 2.0 or above
·Presentation form: Graphics + Text
System Info
·RAM: 1 GB·CPU: Intel Atom
·Application storage: 1.4 GB
Soft Control
·Persistent retain memory: 32 Kbyte·SoftControl development software: CODESYS 3.5
·Remote I/O bus: EtherCAT, Modbus RTU, Modbus TCP
Display
·Type: TFT-LCD·Size: 15" 1280 X 800 pixels
·Backlight: LED backlight
·Backlight lifetime: 50000 h
·Brightness: 450 cd/m2
Interaction
·External control: USB·Front LED Red/ Blue: software programmable
·Touch screen type: Resistive touch
Power
·Power consumption at rated voltage: 22 W·Voltage: +24 V DC (18-32 V DC)
·Fuse Internal: Internal DC fuse, 3.15A slow
Mechanical
·Size: 340 x 242,2 x 79mm·Weight: 3,6 Kg
·Housing material: Powder-coated aluminum
Serial Communication
·Com 1: RS232 (RTS/CTS)·Com 2: RS422/ RS485
·Com 3: RS232
·Com 4: RS422 (RTS)/ RS485
Ethernet
·Ethernet 1: 1 x 10/100 Mbit/s (shielded RJ 45)·Ethernet 2: 1 x 10/100/1000 Mbit/s (shielded RJ 45)
Expansion
·USB: 3x USB Host 2.0, max output current 500mA·Memory expansion: 1xSD card
·iX Field buss expansion: yes
Certifications
·UL: UL508·DNV: N/A
·CE: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.
Environmental
·Humidity: 5%-85% non-condensed·Operating temperature: -10 ° to +60° C
·Storage temperature: -20° to +70° C
·Sealing - front panel: IP 65
PART NUMBER: 640002401
PRICE: $3,375.00 [Prices Subject to change. Please call or send us an E-Mail]
DESCRIPTION: Description: iX T15B SoftControl is a 15.4 " graphic touch HMI with iX and CODESYS software. Communication with I/Os via serial Modbus, Modbus TCP and RTU EtherCAT.
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
