PI Series HMI
Most PLC brands are supported, 7",10.2",10.4",15",CANBUS,TTS,WIFI and Ethernet, Hot sale for more than 10 years.Features and Benefits:
·Print out the selected content in the scope of Printer Objects. The printer parts only print out the content which can be displayed by screen printer
·Display type: Restore the data to certain register from USB flash disk, SD Card or HMI local flash,used for backup as well, the format of recipe is compatible with CSV opening by OFFICE Excel
·When HMI system time surpasses the installment setting time, installment password input dialog will pop up. Only after entering the right password, the HMI can continue to work
·Display size: HMIs Interconnection Mode allows user connecting more than one Wecon HMI (up to 255 ) to eternal device, communication speed is much faster than Modbus protocol.
·Memory: et receiver and sender for the SMS module, short message will send to receiver when alarm, also controller will be activated by the short message containing certain operator from mobile phone.
·Memory: Users are authorized to change the way of HMI behaves.

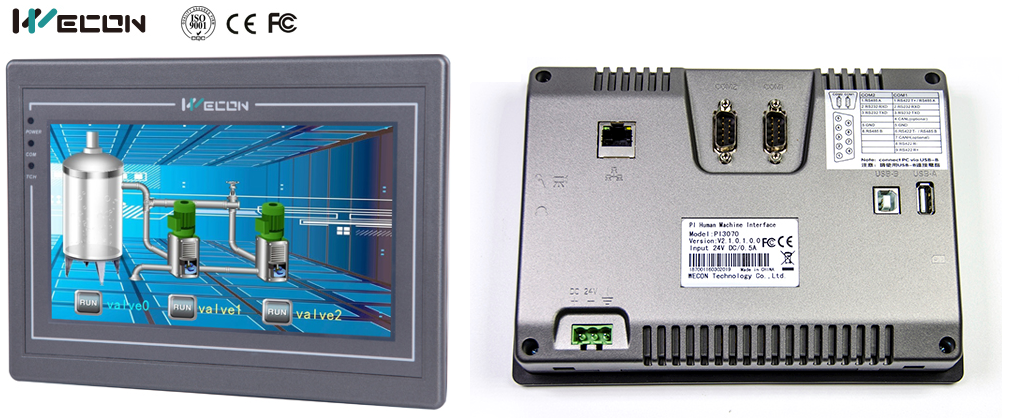

PART NUMBER: PI3070N
PRICE: $285.00
DESCRIPTION:
Wecon 7 inch Human Machine Interface Standard; CORTEX A8 600MHZ CPU, 128M FLASH, 128M DDII RAM; 800×480 TFT LCD 16,000,000colors; RS232/RS485/RS422 (2 COM ports available),one Ethernet port; Support Date Storage, SD Card, U Disk; WINCE7.0 LINUX supported.

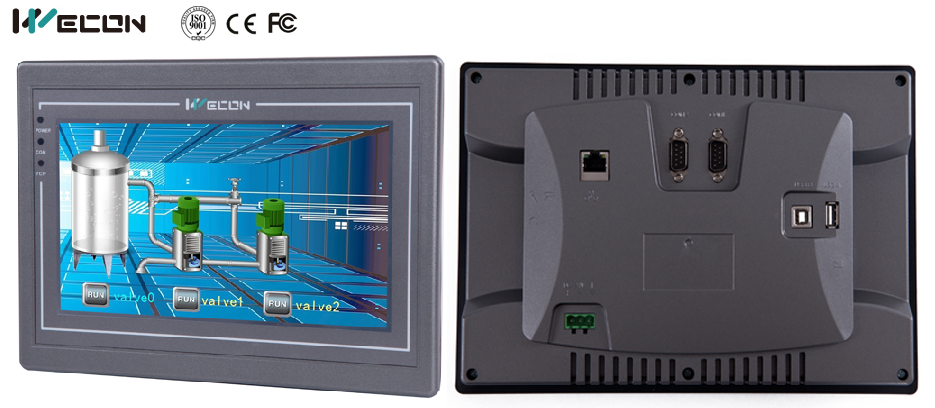

PART NUMBER: PI3102
PRICE: $398.00
DESCRIPTION:
Wecon 10.2 inch Human Machine Interface Standard; CORTEX A8 600MHZ CPU, 800×480 TFT LCD 260,000 colors, RS232/RS485/RS422 (2 COM ports available),one Ethernet port; Support Date Storage, SD Card, U Disk; WINCE7.0 LINUX is optional.

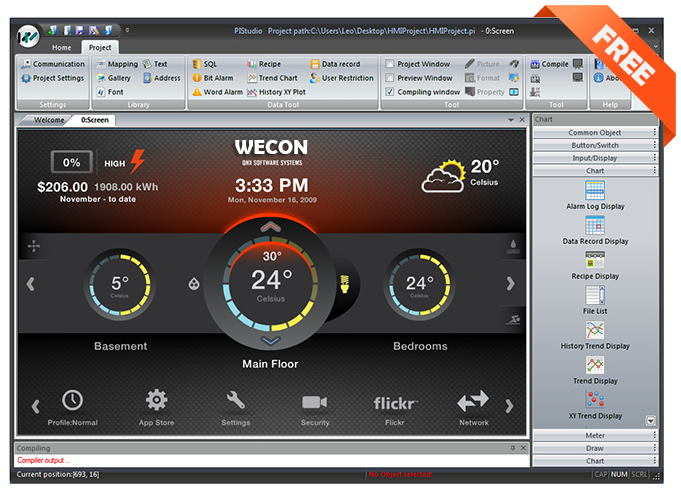

PIStudio Software Download
Document Download Page
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
