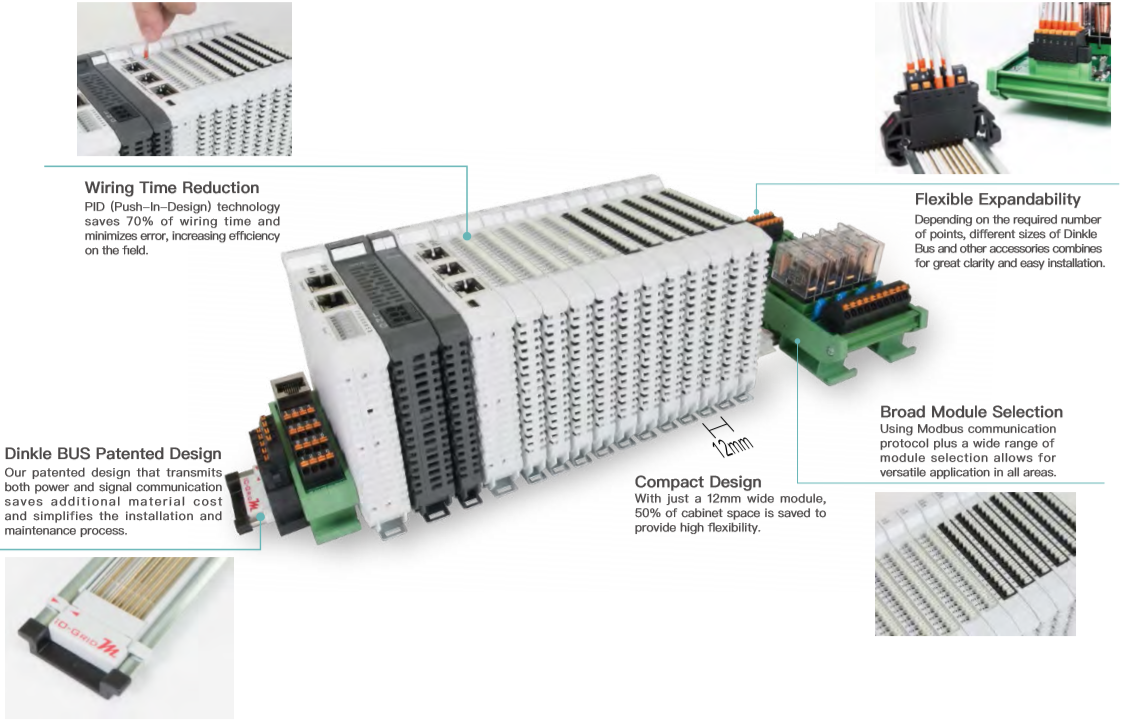

The Dinkle Bus portfolio consists of enclosures, a bus plate and accessories. All enclosures can be mounted on the bus plate for inter-connection of signal and power. The bus plate features a grounding function that ensures undisrupted signal transmission and power safety. The patented misplacement-proofing structure and quaternary coder markers assist users to complete wiring jobs conveniently and efficiently.
| Part Number |
Description |
Price |

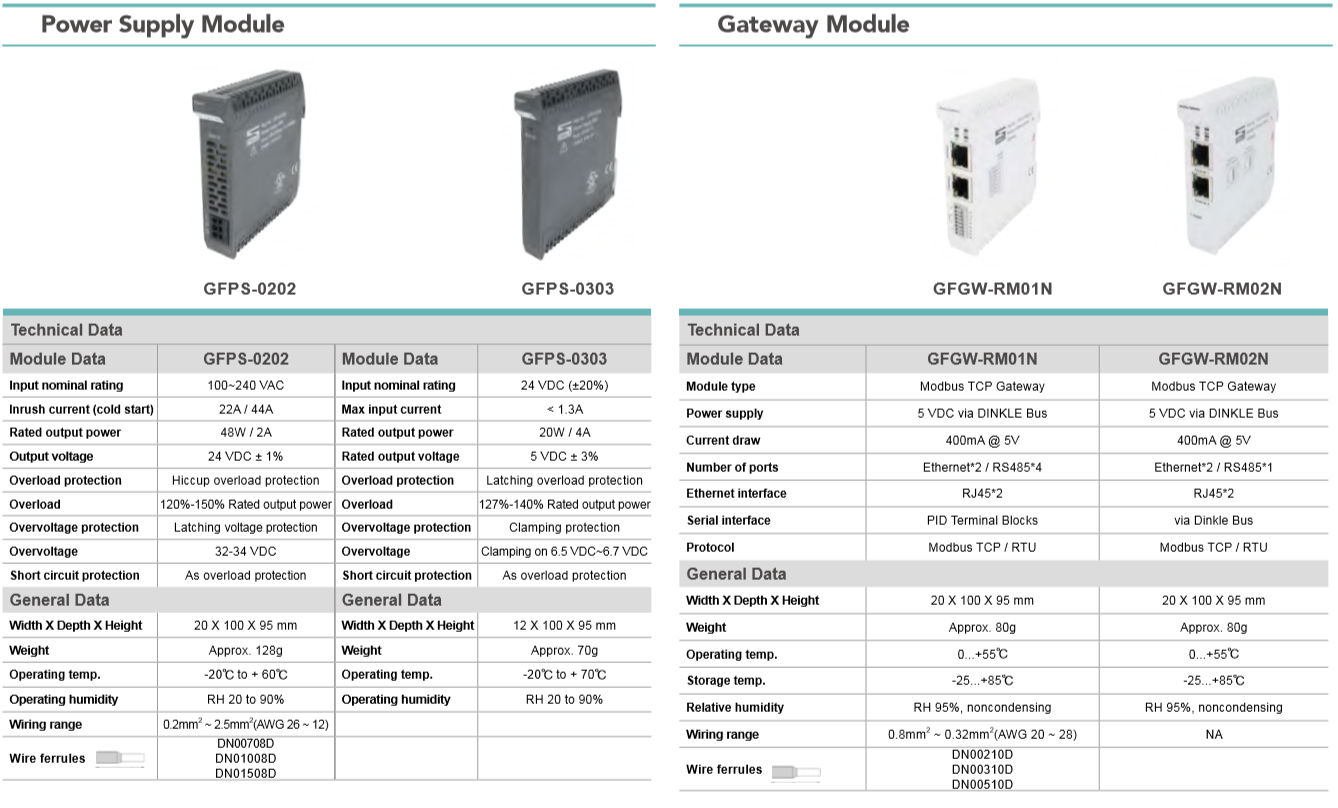

| GFPS-0202 |
A/D Power Supply |
$50.00 |
| GFPS-0303 |
D/D Power Supply |
$44.00 |
| GFGW-RM01N |
Gateway/4 Port |
$256.00 |
| GFGW-RM02N |
Gateway/1 Port |
$137.00 |

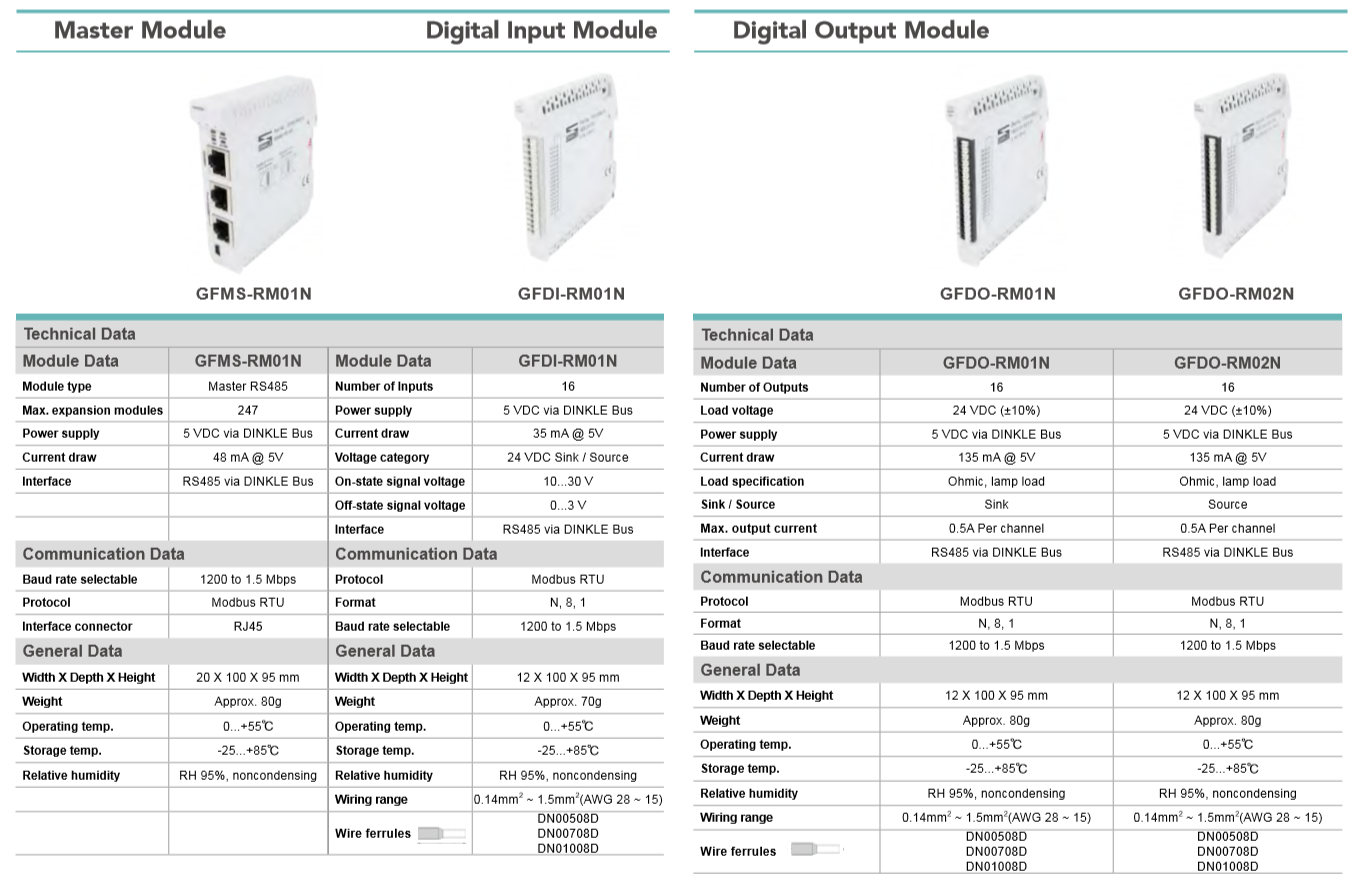

| GFMS-RM01N |
Master |
$102.00 |
| GFDI-RM01N |
16 Digital Input |
$51.00 |
| GFDO-RM01N |
16 Digtal Ooutput (Sink) |
$60.00 |
| GFDO-RM02N |
16 Digital Output (Source) |
$68.00 |

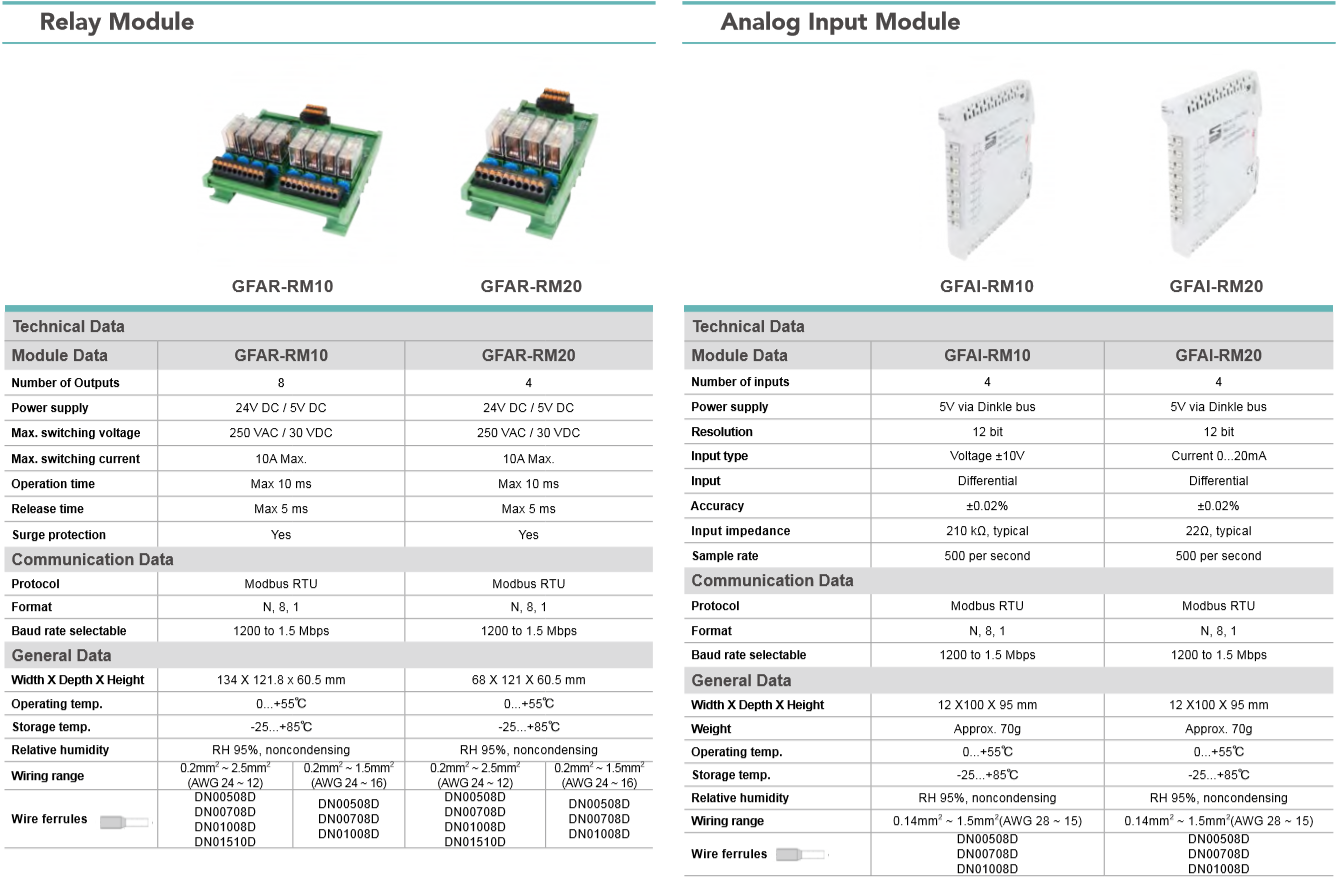

| GFAR-RM10 |
8 Channel Relay Output |
$78.00 |
| GFAR-RM20 |
4 Channel Relay Output |
$55.00 |
| GFAI-RM10 |
4 Analog Input (Voltage) |
$171.00 |
| GFAI-RM20 |
4 Analog Input (Current) |
$171.00 |

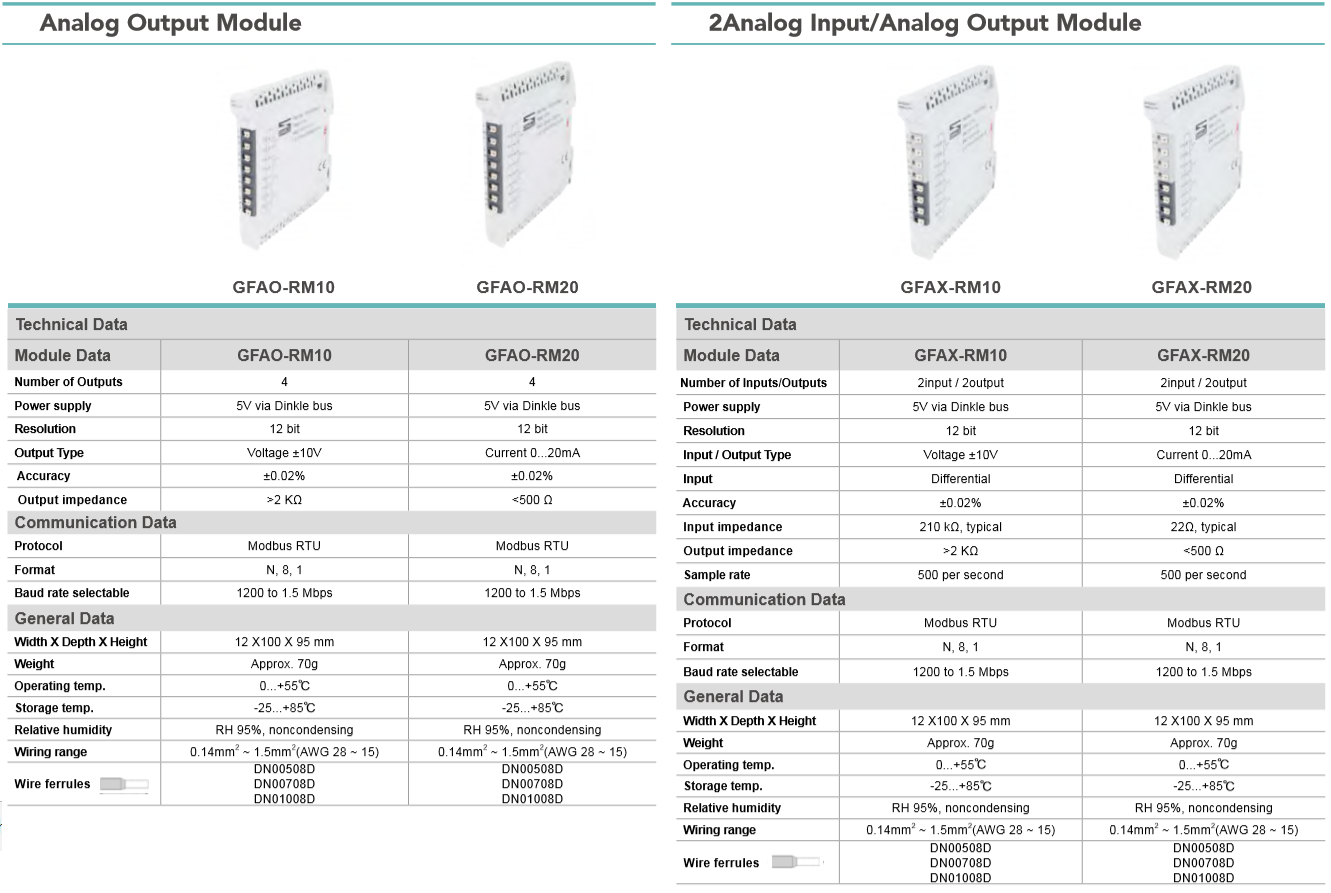

| GFAO-RM10 |
4 Analog Output (Voltage) |
$213.00 |
| GFAO-RM20 |
4 Analog Output (Current) |
$213.00 |
| GFAX-RM10 |
2AI+2AO (Voltage) |
$192.00 |
| GFAX-RM20 |
2AI+2AO (Current) |
$192.00 |

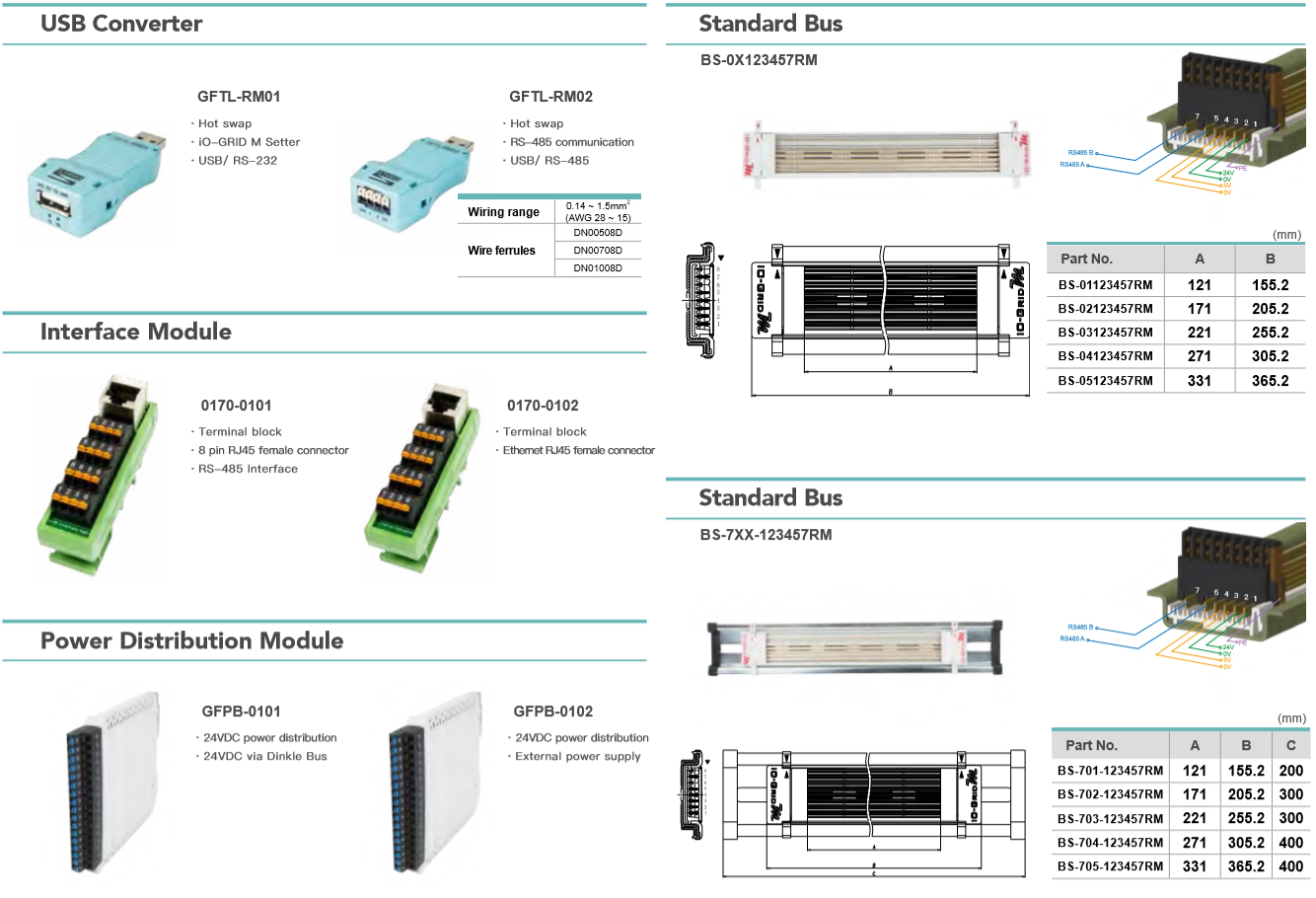

| GFTL-RM01 |
USB Converter (RS232) |
$16.00 |
| GFTL-RM02 |
USB Converter (RS485) |
$18.00 |
| GFPB-0101 |
Power Distribution (Bus) |
$38.00 |
| GFPB-0102 |
Power Distribution (External) |
$35.00 |
| 0171-0101 |
Interface Module (RS485) |
$12.00 |
| 0171-0102 |
Interface Module (Ethernet) |
$13.00 |
Standard Bus Plates
| Part Number |
Description |
Price |
| BS-01123457RM |
150mm Standard Bus |
$8.00 |
| BS-02123457RM |
200mm Standard Bus |
$10.00 |
| BS-03123457RM |
250mm Standard Bus |
$12.00 |
| BS-04123457RM |
300mm Standard Bus |
$14.00 |
| BS-05123457RM |
360mm Standard Bus |
$17.00 |
| BS-701-123457RM |
150mm Standard Bus (with TS-35) |
$9.00 |
| BS-702-123457RM |
200mm Standard Bus (with TS-35) |
$12.00 |
| BS-703-123457RM |
250mm Standard Bus (with TS-35) |
$14.00 |
| BS-704-123458RM |
300mm Standard Bus (with TS-35) |
$16.00 |
| BS-705-123458RM |
360mm Standard Bus (with TS-35) |
$19.00 |
Wire Harness
| Part Number |
Description |
Price |
| BS-WR00101 |
6+6 0.25M |
$17.00 |
| BS-WR00102 |
6+6 0.4M |
$17.00 |
| BS-WR00201 |
3+3 0.25M |
$13.00 |
| BS-WR00202 |
3+3 0.5M |
$13.00 |
| BS-WR00203 |
3+3 1M |
$14.00 |
| BS-WR00204 |
3+3 1.5M |
$15.00 |
| BS-WR00205 |
3+3 2M |
$16.00 |
| BS-WR00301 |
5+5 0.25M |
$15.00 |
| BS-WR00302 |
5+5 0.5M |
$16.00 |
| BS-WR00303 |
5+5 1M |
$18.00 |
| BS-WR00304 |
5+5 1.5M |
$19.00 |
| BS-WR00305 |
5+5 2M |
$21.00 |
Accesories
| Part Number |
Description |
Price |
| BS-210 |
Adaptor Socket |
$2.00 |
| BS-211 |
Plug |
$3.00 |
| BS-200 |
Expansion Connector |
$1.00 |
| BS-C028 |
Bus Cover |
$1.00 |
Labels
| Part Number |
Description |
Price |
| TM20W |
Empty Labels |
$2.00 |
| TM20W-S13120 |
Numerical Labels |
$3.00 |
| TM20W-S13121 |
Alphabetical Labels |
$3.00 |
| TM20W-S13122 |
Alphabetical Labels |
$3.00 |
Document Download Page
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
