Fatek ™ Series PLCs
The FBs-PLC’s design incorporates a System on Chip (SoC) developed in-house by Fatek Corporation. The BGA chip consists of over 120,000 gates which integrates powerful features such as a Central Processing Unit (CPU), Memory, Hardware Logic Solver (HLS), 5 high-speed communication ports, 4 sets of hardware high-speed counters/timers, 4 axes of high-speed pulse outputs for NC positioning control (with linear interpolation), 16 high-speed interrupts and captured inputs. The FBs-PLC represents high functionality and reliability with exceptional value compared to other PLC’s in its class.

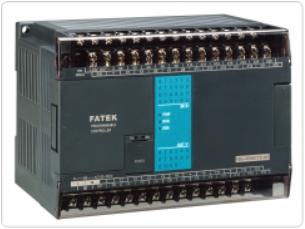

Fatek FBs Series
The FBs-PLC has more than 300 instructions which adopts a user friendly and readable multi-input/multi-output function structure. With this multi-input instruction structure the user can derive many types of functionality which other brands of PLC’s may require the use of many instructions to achieve this. user can derive many types of functionality which other brands of PLC’s may require the use of many instructions to achieve this.
PART NUMBER: FBs-10MAT2-D24PRICE: $147.00
DESCRIPTION: 6 points 24VDC digital input (2 points high speed 100KHz, 2 points medium speed 20KHz, 2 points medium speed total 5KHz); 4 points transistor output (2 points high speed 100KHz, 2 points medium speed 20KHz); 1 RS232 or USB port(expandable up to 3); I/O is not expandable.
PART NUMBER: FBs-60MAT2-D24
PRICE: $401.00
DESCRIPTION: 36 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 8 points medium speed total 5KHz); 24 points transistor output (2 points high speed 100KHz, 6 points medium speed 20KHz); 1 RS232 or USB port(expandable up to 3); (MB is detachable terminal block).

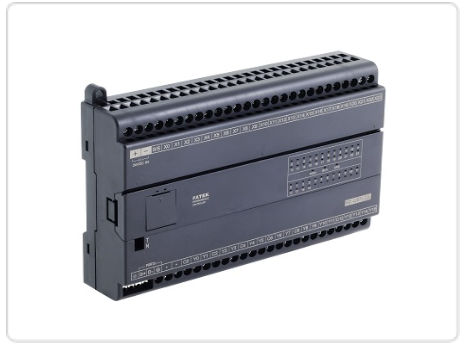

Fatek B1/B1z Series
The streamline design of SoC technology significantly reduces the hardware costs. The B1/B1z series PLC incorporates the most sophisticated manufacturing process and high quality two-layer board design. This makes the B1/B1z PLC very price-competitive in today’s cost conscience PLC market!
PART NUMBER: B1z-10MT25-D24PRICE: $107.00
DESCRIPTION: 6 points 24VDC digital input (4 points 50KHz, 2 points total 5KHz), 4 points transistor output (2 points 50KHz), built-in 1-2 communication ports, left side is expandable 0-2 modules, right side is expandable up to 80 I/O points.
PART NUMBER: B1z-40MT25-D24
PRICE: $240.00
DESCRIPTION: 24 points 24VDC digital input (8 points 50KHz, 8 points total 5KHz, 8 points low speed), 16 points transistor output (6 points 50KHz),built-in 1-2 communication ports, left side is expandable 0-2 modules, right side is expandable up to 80 I/O points.
Fatek HB1 Series
HB1 main unit PLC is designed for the P5 HMI, this can be mounted onto the back of the P5 HMI. This increases reliability and improves
PART NUMBER: HB1-14MR5-D24SPRICE: $127.00
DESCRIPTION: 8 points 24VDC digital input (4 points 50KHz, 4 points total 5KHz), 6 points relay output or 6 points transistor output, built-in 1 communication ports, left side is expandable 2 modules, right side is expandable up to 80 I/O points
Fatek Accesories
PART NUMBER: FBs-232PO-9F-150PRICE: $27.00
DESCRIPTION: MD4M to DB9F communication cable (FBs main unit Port 0 RS232 connect to standard DB9M), length 150cm. PART NUMBER: FBs-CBEH
PRICE: $37.00

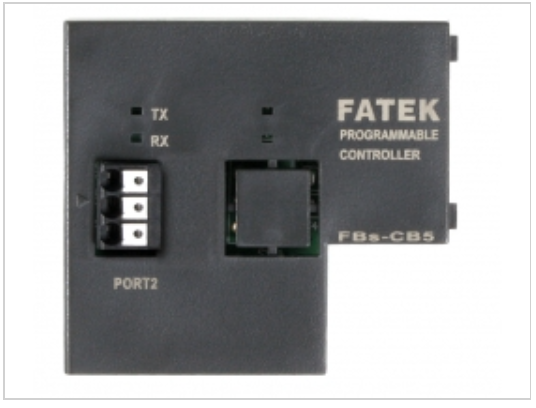

DESCRIPTION: 1 port RS485 (Port 2) communication board. PART NUMBER: FBs-CBEH
PRICE: $197.00
DESCRIPTION: 1 port 100 Base T Ethernet communication board.
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
