Unitronics Vision ™ Series PLCs
Electrical Components
Application Specific Controls
Jazz

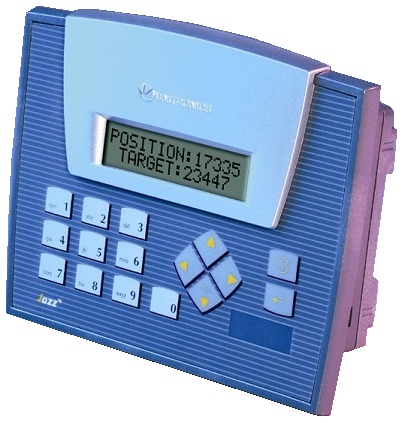

PART NUMBER: JZ10-11-R10PRICE: $160.00
DESCRIPTION:
·6 Digital Inputs including 2 inputs which can function as either high-speed counters, or as normal digital inputs
·4 Relay Outputs
·2 Lines x 16 characters, STN LCD, LED backlight HMI Displays
·24 VDC power supply
PART NUMBER: JZ10-11-T10
PRICE:$160.00
DESCRIPTION:
·6 Digital Inputs including 2 inputs which can function as either high-speed counters, or as normal digital inputs
·4 Transistor Outputs
·2 Lines x 16 characters, STN LCD, LED backlight HMI Displays
·24 VDC power supply
Vision350
PART NUMBER: V350-35-R2PRICE: $760.00
DESCRIPTION:
·10 Digital Inputs including 3 shaft-encoder Inputs
·2 Analog / Digital Inputs
·6 Relay Outputs
·1 built-in RS232/RS485 Port
·1 optional port for serial or Ethernet communication
·1 optional port for CANbus communication
·24 VDC power supply
PART NUMBER:V350-35-T2
PRICE:$860.00
DESCRIPTION:
·10 Digital Inputs including 3 shaft-encoder Inputs
·2 Analog / Digital Inputs
·12 Transistor Outputs
·1 built-in RS232/RS485 Port
·1 optional port for serial or Ethernet communication
·1 optional port for CANbus communication
·24 VDC power supply
Vision560
PART NUMBER: V560-T25BPRICE: $976.00
DESCRIPTION:
PLC:
·I/O options: via onboard and expansion modules
·6 Relay Outputs
·I/O types: Digital (including shaft-encoder inputs and PWM outputs), Analog, and Temperature measurement
·Application Logic: 2MB ; Fonts: 1MB ; Images: 6MB
·Scan time: 9 micro sec per 1K of typical application
·Up to 20 built-in PID loops, including auto-tune
·Recipe programs and datalogging via Data Tables HMI
HMI:
·5.7 in. 256-Color Touchpanel, QVGA TFT display (or CSTN)
·Data entry/modification via keypad
·Up to 1024 user-designed displays and 500 images per application
·255 variables per display; link up to 150 images/messages to each variable
·Info mode: view/modify I/O status, integer values, and system data via the panel
Communications:
·Two isolated RS232/RS485 ports
·Ethernet via TCP/IP port (optional)
·GSM/SMS support
·Remote access for data acquisition and program download
·MODBUS (master/slave)
·CANbus and UniCAN
·OPC/DDE server
·Additional communication protocols
EX-A1
PART NUMBER: EX-A1PRICE: $87.00
DESCRIPTION:
Local expansion adapter used to link between the PLC and up to 8 expansion modules (no. of I/Os may vary according to model). Supports both 12/24VDC.
IO-AI4-AO2
PART NUMBER: IO-AI4-AO2PRICE: $250.00
DESCRIPTION:
·24VDC (power supply)
·4 Analog inputs, 12 bit, 0-10V, 0-20mA, 4-20mA
·2 Analog outputs, 12 bit + sign, 0-10V, 0-20mA, 4-20mA.
IO-DI8-TO8
PART NUMBER: IO-DI8-TO8PRICE: $190.00
DESCRIPTION:
·24VDC
·8 Digital pnp/npn inputs, including 1 High-speed counter
·8 Transistor pnp outputs.
·Supports Fast-response (in conjunction with Vision PLCs)
IO-TO16
PART NUMBER: IO-TO16PRICE: $180.00
DESCRIPTION:
·24VDC
·16 Digital pnp/npn inputs, including 1 High-speed counter
IO-TO16
PART NUMBER: IO-TO16PRICE: $180.00
DESCRIPTION:
·24VDC
·16 Transistor pnp outputs.
IO-ATC8
PART NUMBER: IO-ATC8PRICE: $295.00
DESCRIPTION:
8 Thermocouple/Analog inputs (T/C: J, K, T, B, E, N, R, S, 0.1 deg. resolution. Analog: 12/14 bit, 0-10V, 0-20mA, 4-20mA).
IO-PT400
PART NUMBER: IO-PT400PRICE: $250.00
DESCRIPTION:
4 PT100 / NI100 / NI120 inputs,
·Range PT100: -50° C : 460° C (-58° F : 860° F)
·Range NI100: -50° C : 232° C (-58° F : 449° F)
·Range NI120: -50° C : 172° C (-58° F : 341° F)
·12 bit
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
