Finder 72 Series Liquid Level Control Relays
Electrical Components
Application Specific Controls
72 Series Liquid Level Control Relays for Conductive Liquids
Monitoring Relays for a variety of applications including water/waste water, pools & fountains as well as the food & beverage industry. Suitable Liquids: sewage, well, city, rain, sea waters, milk, beer, coffee, liquid fertilizers, low percentage alcohol liquidsFINDER products have a wide range of quality approvals with great switching performance. Compliant with the CE directive, IEC standards and the RoHS directive.
Specifications:· Emptying or filling functions
· LED indicator
· 35 mm rail (EN 60715) mount
· Reinforced insulation (6 kV - 1.2/50 s) between: - supply and contacts - electrodes and supply - contacts and electrodes
· Control a single level or Control between Min./Max. limits
· Sensitivity range (5...150) kΩ adjustable
· Delay time (0.5s or 7s) switch selectable
· Emptying or filling functions switch selectable
72 SERIES RELAYS OPTIONS
| Part Number | Supply Voltage | Description | Price |
|---|---|---|---|
| 72.01.8.024.0000 | 24V AC | Level control relays for conductive liquids | $57.00 |
| 72.01.8.125.0000 | 120V AC | Level control relays for conductive liquids | $57.00 |
| 72.01.8.240.0000 | 240V AC | Level control relays for conductive liquids | $57.00 |
| 72.01.9.024.0000 | 24V DC | Level control relays for conductive liquids | $57.00 |
| Part Number | Supply Voltage | Description | Price |
|---|---|---|---|
| 72.11.8.024.0000 | 24V AC | Level control relays for conductive liquids | $57.00 |
| 72.11.8.125.0000 | 120V AC | Level control relays for conductive liquids | $57.00 |
| 72.11.8.240.0000 | 240V AC | Level control relays for conductive liquids | $57.00 |
| 72.11.9.024.0000 | 24V DC | Level control relays for conductive liquids | $57.00 |
| Part Number | Supply Voltage | Description | Price |
|---|---|---|---|

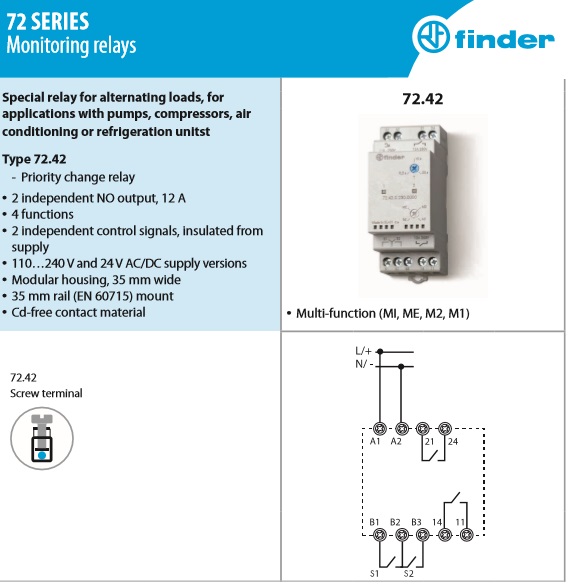

| 72.42.0.024.0000 | 24V AC/DC | Alternating Load Relay | $82.00 |
| Part Number | Picture | Description | Price |
|---|---|---|---|
| 072.11 |  |
Floor Water Sensor designed for the detection & reporting of the presence of floor surface water |
$20.00 |
| 072.01.06 |  |
Suspended electrode for conductive liquids Electrode compatible with food processing applications. Cable length: 6 m |
$12.00 |
| 072.01.15 | |
Suspended electrode for conductive liquids Electrode compatible with food processing applications. Cable length: 15 m |
$22.00 |
| 072.02.06 |  |
Electrode for swimming pools with high levels of chlorine, or in salt-water pools with high levels of salinity.. Cable length: 6 m |
$15.00 |
| 072.53 |  |
Electrode holder with three pole connector |
$71.00 |
| 072.51 |  |
Electrode holder with two pole connector |
$40.00 |
| 072.31 |  |
Electrode | $17.00 |
| 072.500 |  |
Electrode 500 mm long | $70.00 |
| 072.501 |  |
Inter electrode connector | $5.00 |
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
