Dinkle Power Supply
Electrical Components
Application Specific Controls

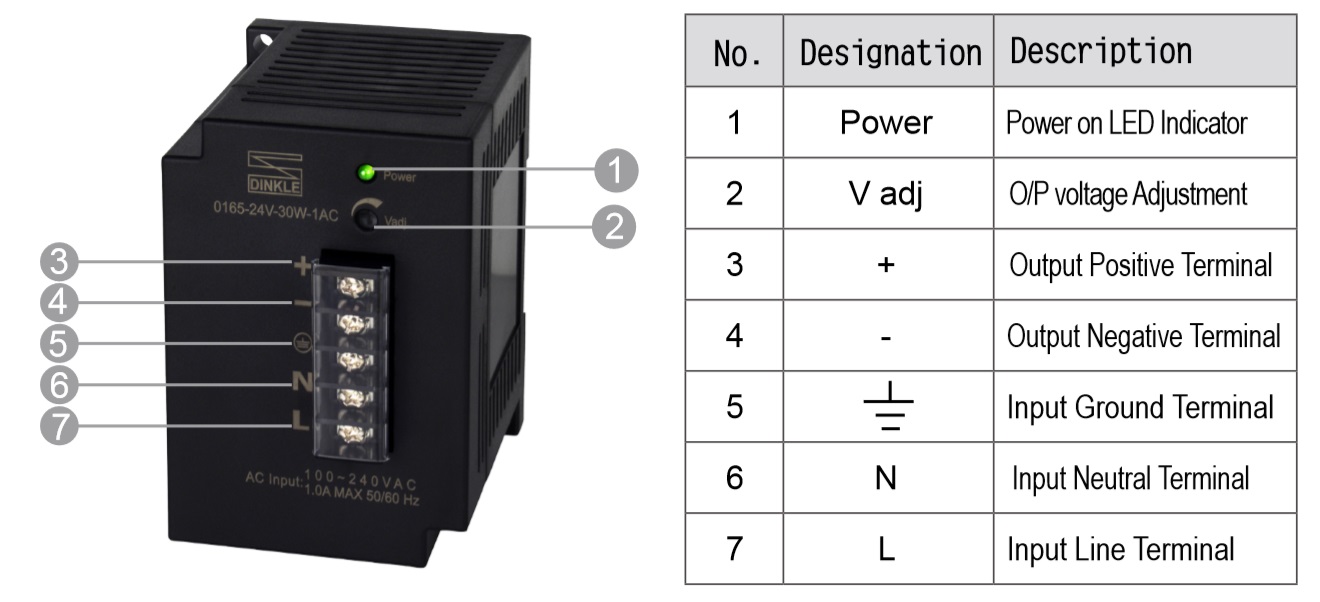

Dinkle Switching Power Supplies
General characteristics This type of equipment is used to power supply electromechanical and electronic devices with DC control, such as contactors, time relays, sensors, PLCs, DC motors, displays, SSRs and other equipment normally found in automation systems and networks.Protections:
·Short circuit
·Overload
·Input voltage peaks
Indications:
·LED indicator for low voltage conditions
·LED indicator for power on
Certifications and compliance Certifications obtained: EAC; UL Listed for USA and Canada (cULus-File E318016) as Power Supplies in power circuit and motor-mounted apparatus category. Compliant with standards: IEC/EN 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL508, CSA C22.2 n° 107.1.
| Part Number | Input Voltage[Vac] | Output Voltage[Vdc] | Output Current[A] | Output Power[W] | Price |
|---|---|---|---|---|---|
| 0165-24V-30W-1AC | 1Φ 100-240 | 24 | 1.25 | 30 | $30.00 |
| 0165-24V-48W-1AC | 1Φ 100-240 | 24 | 2 | 48 | $30.00 |
| 0165-24V-72W-1AC | 1Φ 100-240 | 24 | 3 | 72 | $30.00 |
| 0165-24V-96W-1AC | 1Φ 100-240 | 24 | 4 | 96 | $57.00 |
| 0165-24V-120W-1AC | 1Φ 100-240 | 24 | 5 | 120 | $63.00 |
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
