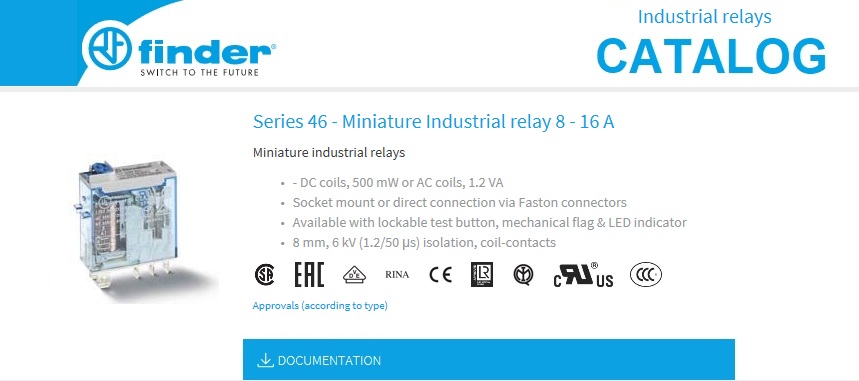

Finder 46 Miniature Industrial Relays 8-16A

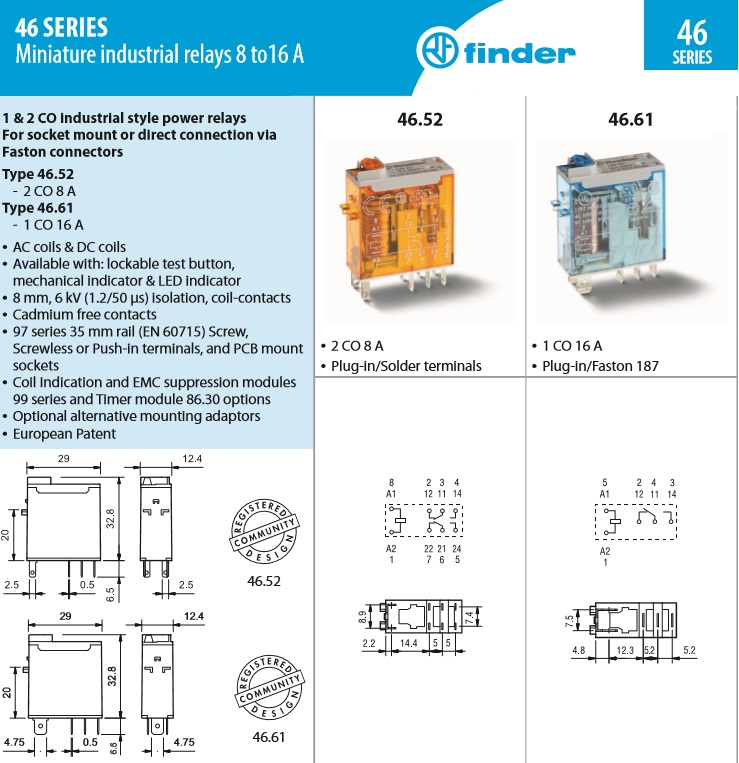

1 and 2 CO industrial style power relays. For socket mount or direct connection via Faston connectors.
Features:· - DC coils, 500 mW or AC coils, 1.2 VA
· Socket mount or direct connection via Faston connectors
· Available with lockable test button, mechanical flag & LED indicator
·8 mm, 6 kV (1.2/50 μs) isolation, coil-contacts

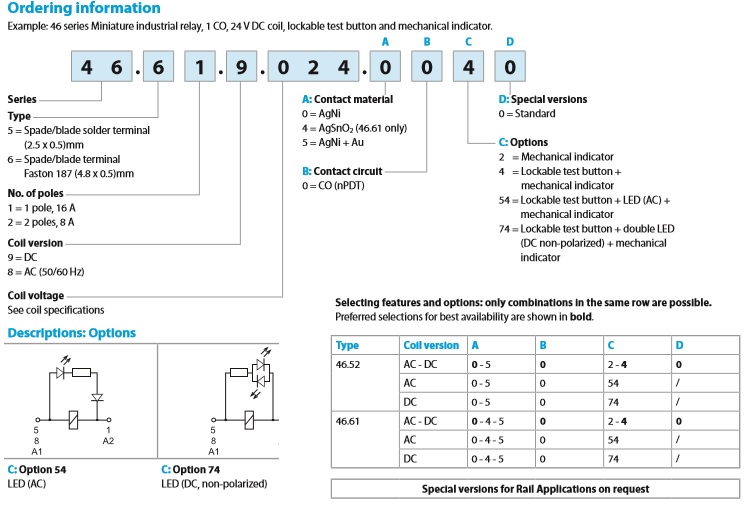

| Type | Coil Voltage | Contact Rating | Socket | Price |
|---|---|---|---|---|
| 46.61.8.012.0040 | 12VAC | 16A @ 250V & 12A @ 30VDC | 97.01 | $6.95 |
| 46.61.8.024.0040 | 24VAC | 16A @ 250V & 12A @3 0VDC | 97.01 | $5.40 |
| 46.61.8.120.0040 | 120VAC | 16A @ 250V & 12A @3 0VDC | 97.01 | $5.95 |
| 46.61.8.240.0040 | 240VAC | 16A @ 250V & 12A @ 30VDC | 97.01 | $8.95 |
| 46.61.9.012.0040 | 12VDC | 16A @ 250V & 12A @ 30VDC | 97.01 | $4.95 |
| 46.61.9.024.0040 | 24VDC | 16A @ 250V & 12A @ 30VDC | 97.01 | $4.25 |
| Type | Coil Voltage | Contact Rating | Socket | Price |
|---|---|---|---|---|
| 46.61.8.012.0054 | 12VAC | 16A @ 250V & 12A @ 30VDC | 97.01 | $7.95 |
| 46.61.8.024.0054 | 24VAC | 16A @ 250V & 12A @3 0VDC | 97.01 | $6.40 |
| 46.61.8.120.0054 | 120VAC | 16A @ 250V & 12A @3 0VDC | 97.01 | $6.95 |
| 46.61.8.240.0054 | 240VAC | 16A @ 250V & 12A @ 30VDC | 97.01 | $9.95 |
| Type | Coil Voltage | Contact Rating | Socket | Price |
|---|---|---|---|---|
| 46.61.9.012.0074 | 12VDC | 16A @ 250V & 12A @ 30VDC | 97.01 | $6.95 |
| 46.61.9.024.0074 | 24VDC | 16A @ 250V & 12A @ 30VDC | 97.01 | $5.45 |
| Type | Coil Voltage | Contact Rating | Socket | Price |
|---|---|---|---|---|
| 46.52.8.024.0040 | 24VAC | 8A @ 250V & 6A @3 0VDC | 97.02 | $7.95 |
| 46.52.8.120.0040 | 120VAC | 8A @ 250V & 16A @3 0VDC | 97.02 | $7.95 |
| 46.52.8.240.0040 | 240VAC | 8A @ 250V & 6A @ 30VDC | 97.02 | $9.95 |
| 46.52.9.012.0040 | 12VDC | 8A @ 250V & 6A @ 30VDC | 97.02 | $5.95 |
| 46.52.9.024.0040 | 24VDC | 8A @ 250V & 6A @ 30VDC | 97.02 | $5.25 |
| Type | Coil Voltage | Contact Rating | Socket | Price |
|---|---|---|---|---|
| 46.52.8.024.0054 | 24VAC | 8A @ 250V & 6A @3 0VDC | 97.02 | $8.95 |
| 46.52.8.120.0054 | 120VAC | 8A @ 250V & 6A @3 0VDC | 97.02 | $9.95 |
| 46.52.8.240.0054 | 240VAC | 8A @ 250V & 6A @ 30VDC | 97.02 | $10.95 |
| Type | Coil Voltage | Contact Rating | Socket | Price |
|---|---|---|---|---|
| 46.52.9.012.0074 | 12VDC | 8A @ 250V & 6A @ 30VDC | 97.02 | $7.95 |
| 46.52.9.024.0074 | 24VDC | 8A @ 250V & 6A @ 30VDC | 97.02 | $7.25 |

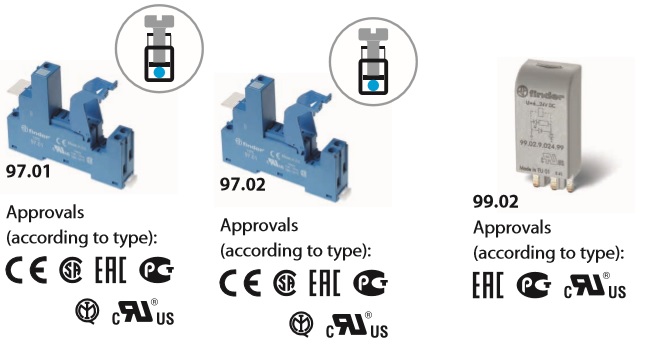

Finder 46 Series Accessories
| Type | Description | Price |
|---|---|---|
| 97.01 | DIN -Rail/Panel mount screw terminal socket for 46.61 relay | $3.95 |
| 97.02 | DIN -Rail/Panel mount screw terminal socket for 46.52 relay | $5.95 |
♦ Due to the wide product range we kindly recommend that you download the PDF document/product guide below and send us an E-mail with your selection of part numbers so we can accurately quote you pricing and delivery.
Finder Document Download Page
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
