Finder 77 Series Solid State Relays
Range of modular and " hockey puck " Industrial Solid State Relays (SSR) Particularly suitable for resistive loads and for industrial applications where high switching frequencies and high inrush currents can be problematic.
Features:·NO output, from 5 to 50 A
·Versions available for " Zero Crossing " or " Random " switching
·High-speed switching and high electrical life or " contact " bounce
·35 mm rail (EN 60715) mount or panel mount

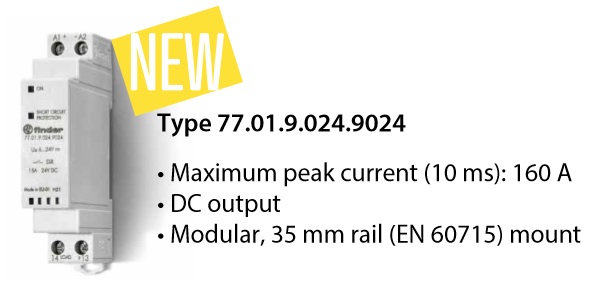

Type: 77.01.9.024.9024
Features:· Maximum peak current (10 ms): 160 A
· DC output
· Modular, 35 mm rail (EN 60715) mount
| Type | Switching Characteristic | Input Operating Range | Output Rated Current | Output Switching Voltage Range | Price |
|---|---|---|---|---|---|
| 77.01.9.024.9024 | Fast turn ON | (4...36)V DC | 015 A | (16...32)V DC | $68.00 |

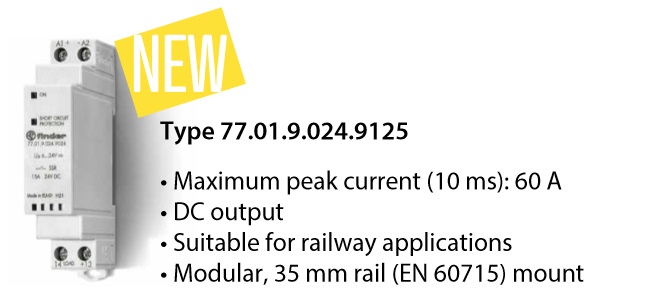

Type: 77.01.9.024.9125
Features:· Maximum peak current (10 ms): 60 A
· DC output
· Suitable for railway applications
· Modular, 35 mm rail (EN 60715) mount
| Type | Switching Characteristic | Input Operating Range | Output Rated Current | Output Switching Voltage Range | Price |
|---|---|---|---|---|---|
| 77.01.9.024.9125 | Fast turn ON | (4...36)V DC | 7 A | (43...140)V DC | $68.00 |

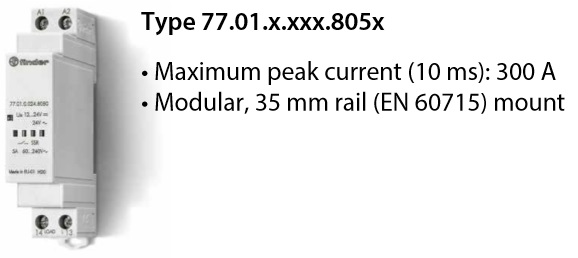

Type: 77.01.x.xxx.805x
Features:· Maximum peak current (10 ms): 300 A
· Modular, 35 mm rail (EN 60715) mount
| Type | Switching Characteristic | Input Operating Range | Output Rated Current | Output Switching Voltage Range | Price |
|---|---|---|---|---|---|
| 77.01.0.024.8050 | Zero Crossing | (16...32)V AC, (9.8...32)V DC | 5 A | (48...265)V AC | $53.00 |
| 77.01.0.024.8051 | Random | (16...32)V AC, (9.8...32)V DC | 5 A | (48...265)V AC | $53.00 |
| 77.01.8.230.8050 | Zero Crossing | (90...265)V AC | 5 A | (48...265)V AC | $63.00 |
| 77.01.8.230.8051 | Random | (90...265)V AC | 5 A | (48...265)V AC | $63.00 |

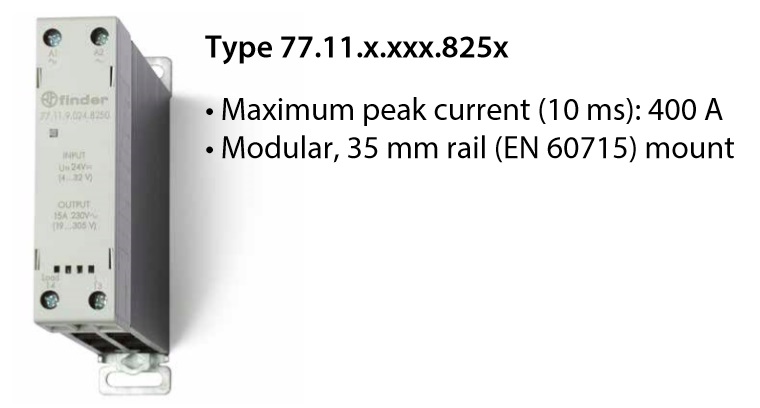

Type: 77.11.x.xxx.825x
Features:· Maximum peak current (10 ms): 400 A
· Modular, 35 mm rail (EN 60715) mount
| Type | Switching Characteristic | Input Operating Range | Output Rated Current | Output Switching Voltage Range | Price |
|---|---|---|---|---|---|
| 77.11.9.024.8250 | Zero Crossing | (4...32)V DC | 15 A | (19...305)V AC | $68.00 |
| 77.11.9.024.8251 | Random | (4...32)V DC | 15 A | (19...305)V AC | $68.00 |
| 77.11.8.230.8250 | Zero Crossing | (40...305)V AC | 15 A | (19...305)V AC | $68.00 |
| 77.11.8.230.8251 | Random | (40...305)V AC | 15 A | (19...305)V AC | $68.00 |

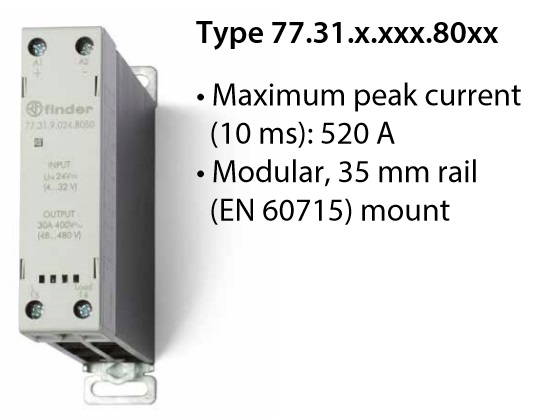

Type: 77.11.x.xxx.80xx
Features:· Maximum peak current (10 ms): 520 A
· Modular, 35 mm rail (EN 60715) mount
| Type | Switching Characteristic | Input Operating Range | Output Rated Current | Output Switching Voltage Range | Price |
|---|---|---|---|---|---|
| 77.31.9.024.8050 | Zero Crossing | (4...32)V DC | 30A | (48...480)V AC | $93.00 |
| 77.31.9.024.8051 | Random | (4...32)V DC | 30 A | (48...480)V AC | $93.00 |
| 77.31.8.230.8050 | Zero Crossing | (40...305)V AC | 30 A | (48...480)V AC | $93.00 |
| 77.31.8.230.8051 | Random | (40...305)V AC | 30 A | (48...480)V AC | $93.00 |
| Type | Switching Characteristic | Input Operating Range | Output Rated Current | Output Switching Voltage Range | Price |
|---|---|---|---|---|---|
| 77.31.9.024.8070 | Zero Crossing | (4...32)V DC | 30A | (48...480)V AC | $93.00 |
| 77.31.9.024.8071 | Random | (4...32)V DC | 30 A | (48...480)V AC | $93.00 |
| 77.31.8.230.8070 | Zero Crossing | (40...305)V AC | 30 A | (48...480)V AC | $93.00 |
| 77.31.8.230.8071 | Random | (40...305)V AC | 30 A | (48...480)V AC | $93.00 |

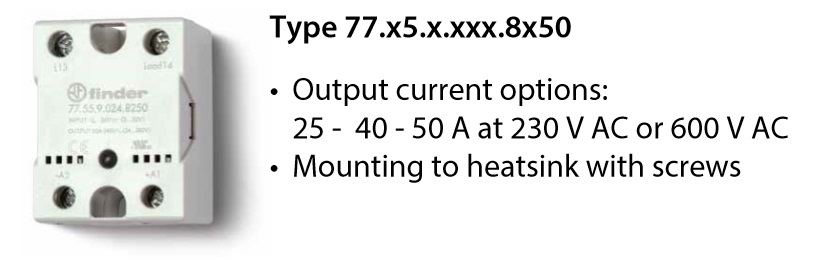

Type: 77.x5.x.xxx.8x50
Features:· Output current options: 25 - 40 - 50 A at 230 V AC or 600 V AC
· Mounting to heatsink with screws
| Type | Switching Characteristic | Input Operating Range | Output Rated Current | Output Switching Voltage Range | Price |
|---|---|---|---|---|---|
| 77.25.9.024.8250 | Zero Crossing | (3...32)V DC | 25A | (21.6...280)V AC | $28.00 |
| 77.25.8.230.8250 | Zero Crossing | (90...280)V AC | 25 A | (21.6...280)V AC | $33.00 |
| 77.45.9.024.8250 | Zero Crossing | (3...32)V DC | 40 A | (21.6...280)V AC | $48.00 |
| 77.45.8.230.8250 | Zero Crossing | (90...280)V AC | 40 A | (21.6...280)V AC | $43.00 |
| 77.55.9.024.8250 | Zero Crossing | (3...32)V DC | 50A | (21.6...280)V AC | $53.00 |
| 77.55.8.230.8250 | Zero Crossing | (90...280)V AC | 50 A | (21.6...280)V AC | $61.00 |
| 77.25.9.024.8650 | Zero Crossing | (4...32)V DC | 25 A | (43.2...660)V AC | $43.00 |
| 77.25.8.230.8650 | Zero Crossing | (40...280)V AC | 25 A | (43.2...660)V AC | $53.00 |
| 77.45.9.024.8650 | Zero Crossing | (4...32)V DC | 40 A | (43.2...660)V AC | $53.00 |
| 77.45.8.230.8650 | Zero Crossing | (40...280)V AC | 40 A | (43.2...660)V AC | $63.00 |
| 77.55.9.024.8650 | Zero Crossing | (4...32)V DC | 50 A | (43.2...660)V AC | $59.00 |
| 77.55.8.230.8650 | Zero Crossing | (40...280)V AC | 50 A | (43.2...660)V AC | $69.00 |
♦ Due to the wide product range we kindly recommend that you download the PDF document/product guide below and send us an E-mail with your selection of part numbers so we can accurately quote you pricing and delivery.

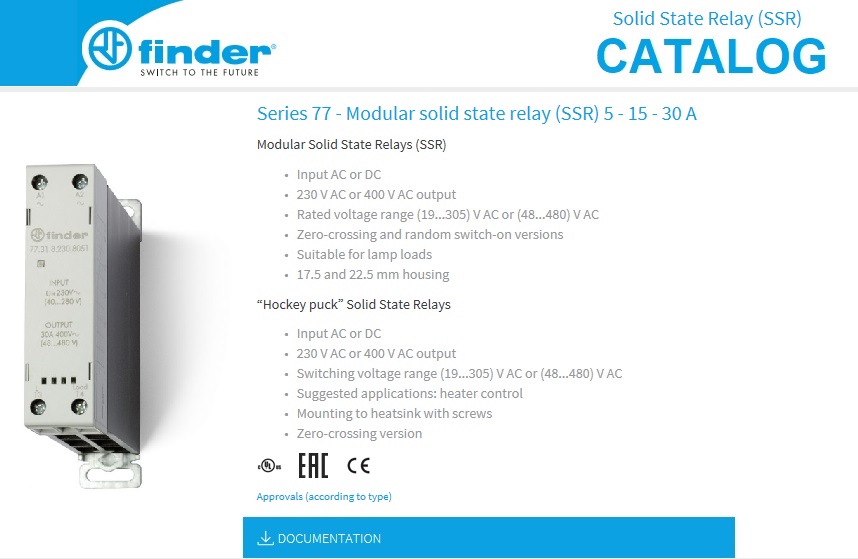

Finder Document Download Page
NOTE: We have other products available that are not displayed, so please do not hesitate to call or send us an e-mail.
